Description

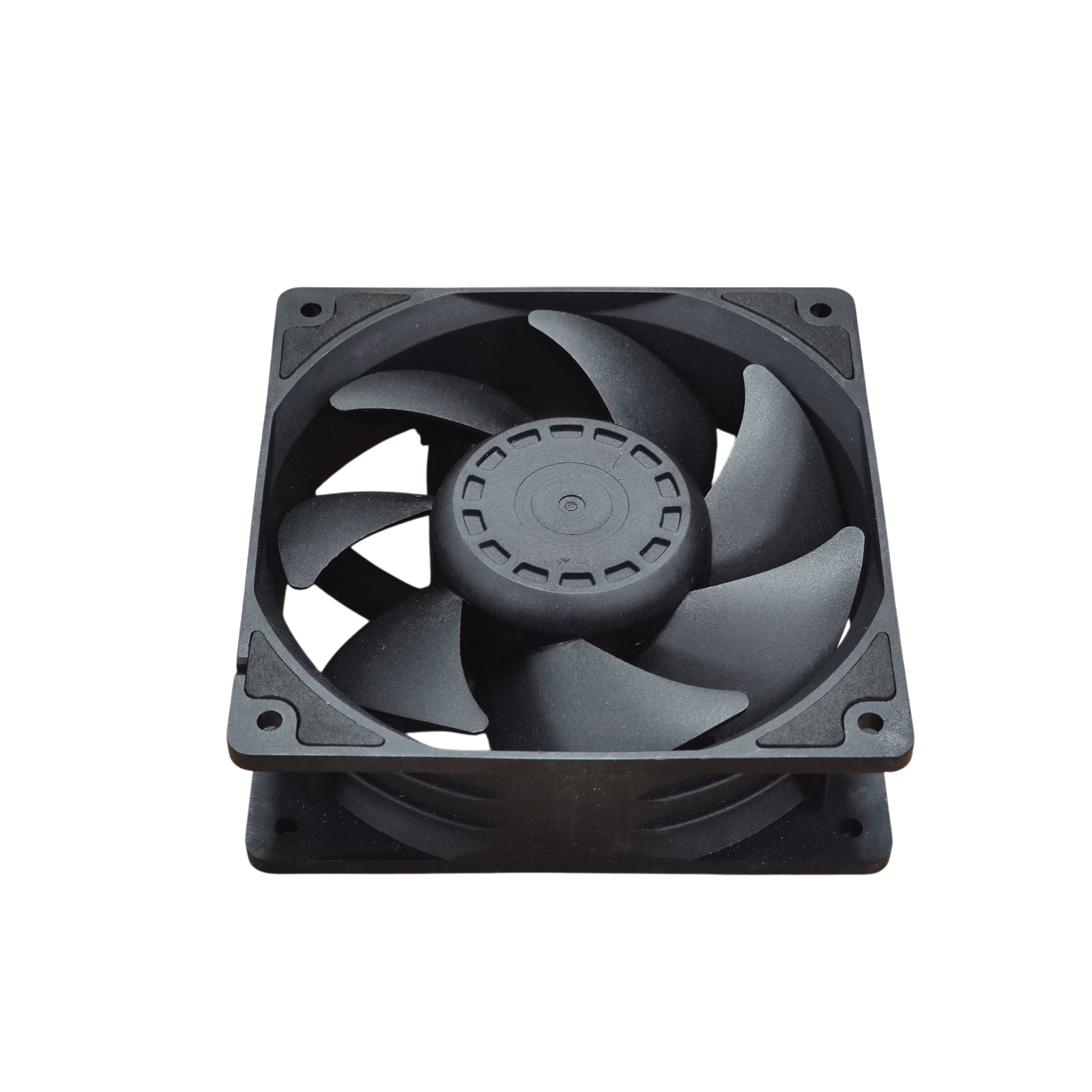

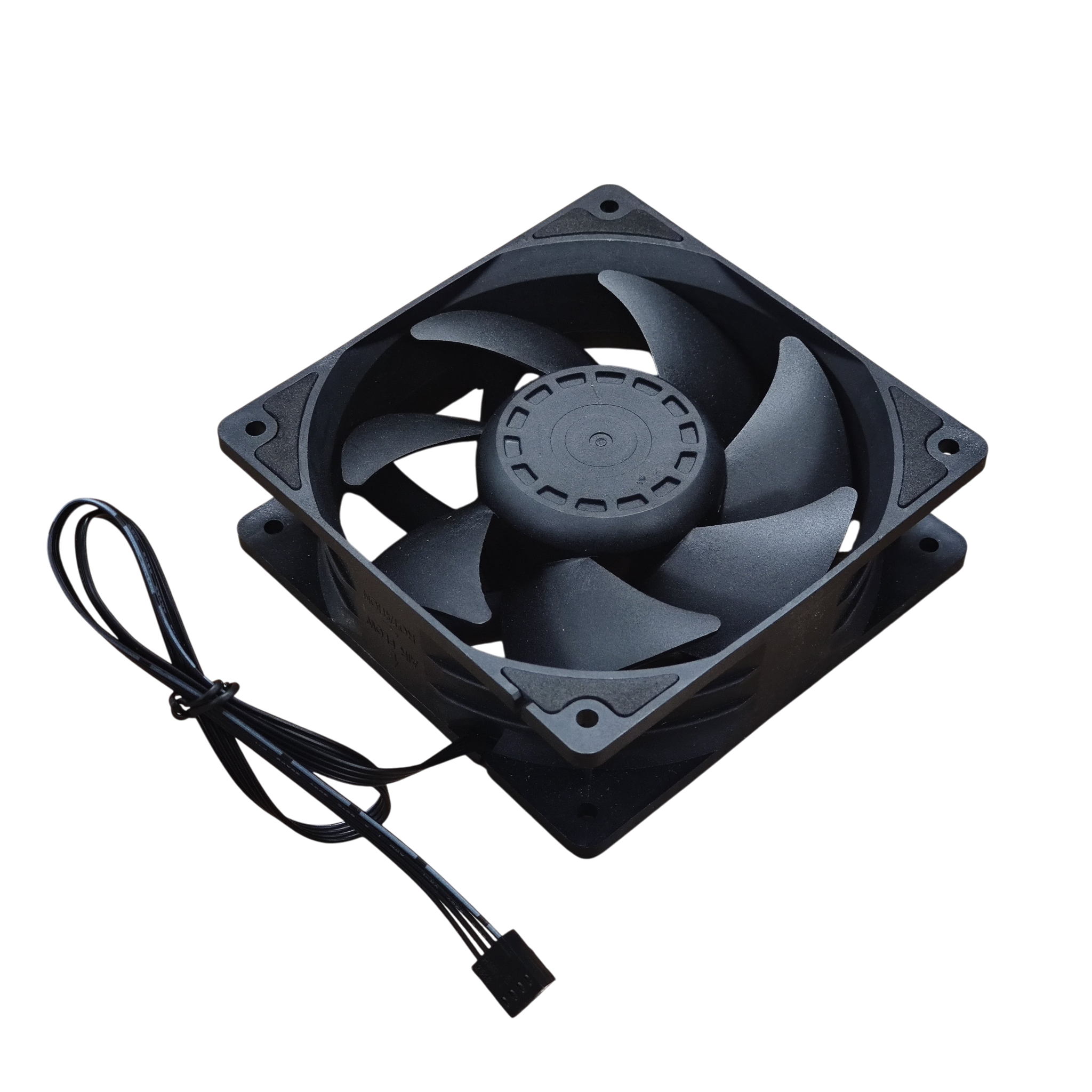

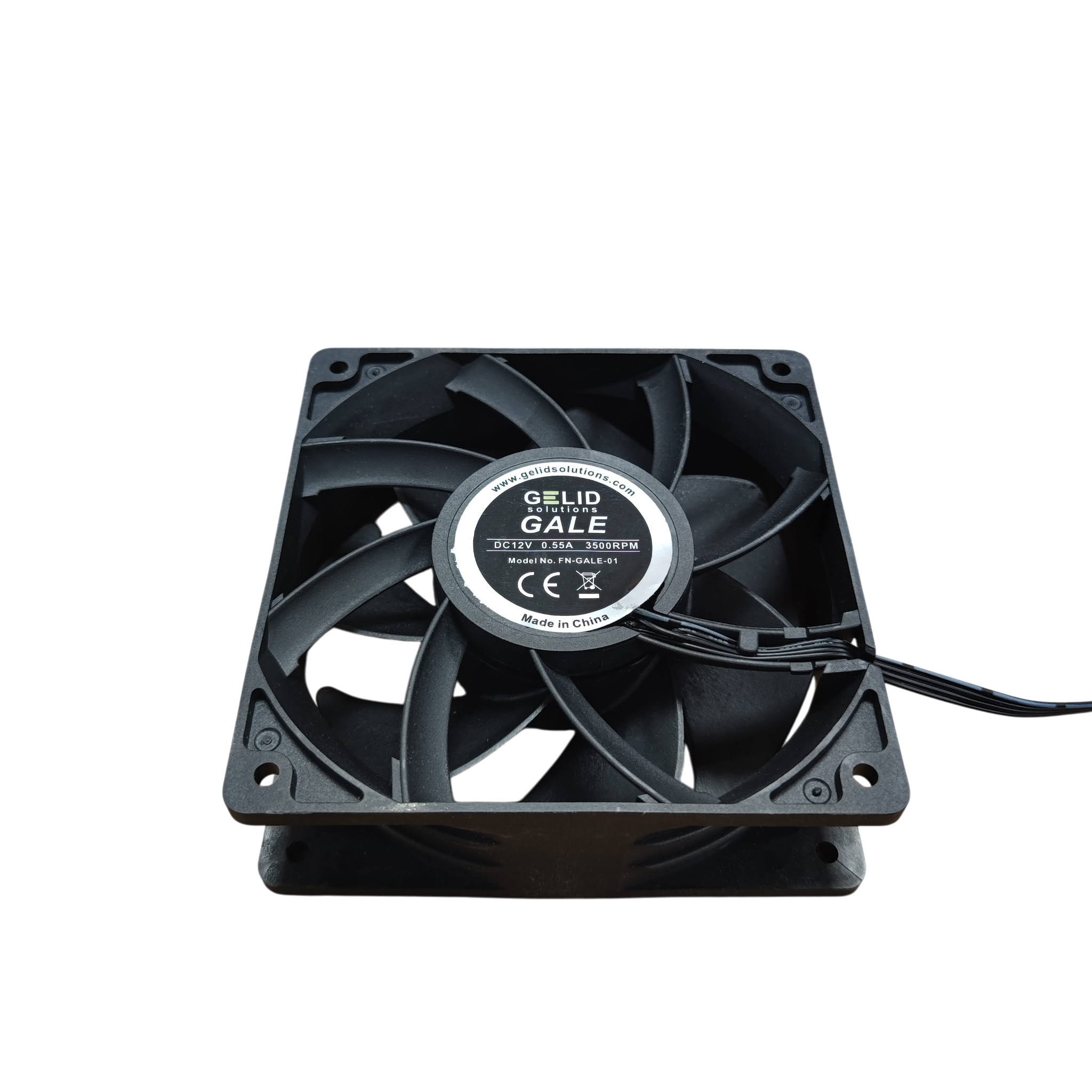

The Gelid Gale‑01 PWM is a 120 mm fan designed to deliver superior cooling performance with a wide PWM speed control range. Featuring a dual ball bearing for reliability and long lifespan and an optimized impeller design, this fan provides an excellent balance of high airflow, static pressure, and quiet operation.
Perfect for demanding cooling systems such as:
-
GPU / ASIC mining and high-load setups
-
PC cases requiring optimized airflow
Key Features
- Full PWM control — Automatically adjusts speed up to 3500 RPM
- Dual ball bearing — Increased durability and lifespan
- High airflow and static pressure — Ideal for radiators & demanding systems
- Perfect for mining or high-load applications (techpowerup.com)
Technician’s Choice
The Gelid Gale‑01 is perfectly suited for space heaters like The Bitchimney, The Urlacher, or Antminer Slim Edition. These fans provide optimal cooling for hashboards, allowing devices to operate efficiently under heavy load.
The airflow is impressive while maintaining a very acceptable noise level. Unlike other high-performance fans, the Gale‑01 does not produce high-pitched noise. Instead, the sound is pleasant and relaxing, making it comfortable to use even in environments sensitive to fan noise.
In short: maximum cooling performance, controlled noise, and enjoyable sound.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | FN‑GALE‑01 |
| Size | 120 × 120 × 38 mm |
| Voltage | 12 V DC |
| Connector | 4‑pin PWM |
| Bearing | Dual ball bearing |
| Speed | 500 – 3500 RPM |
| Max Airflow | 110 CFM (~186 m³/h) |
| Static Pressure | 12 mm H₂O |
| Max Noise | 45 dBA |
| Max Current | 0.55 A |
| Max Power | ~7 W |
| Weight | 242 g |
| Manufacturer data. (gelidsolutions.com) |
Compatibility
-
Standard 120 mm fan (mounting hole spacing 105 mm)
-
Compatible with most motherboards with 4‑pin PWM connectors
-
Can be used for intake or exhaust
Package Contents
-
1 × Gelid Gale‑01 120 mm fan
-
4 × mounting screws
