Description
Overview

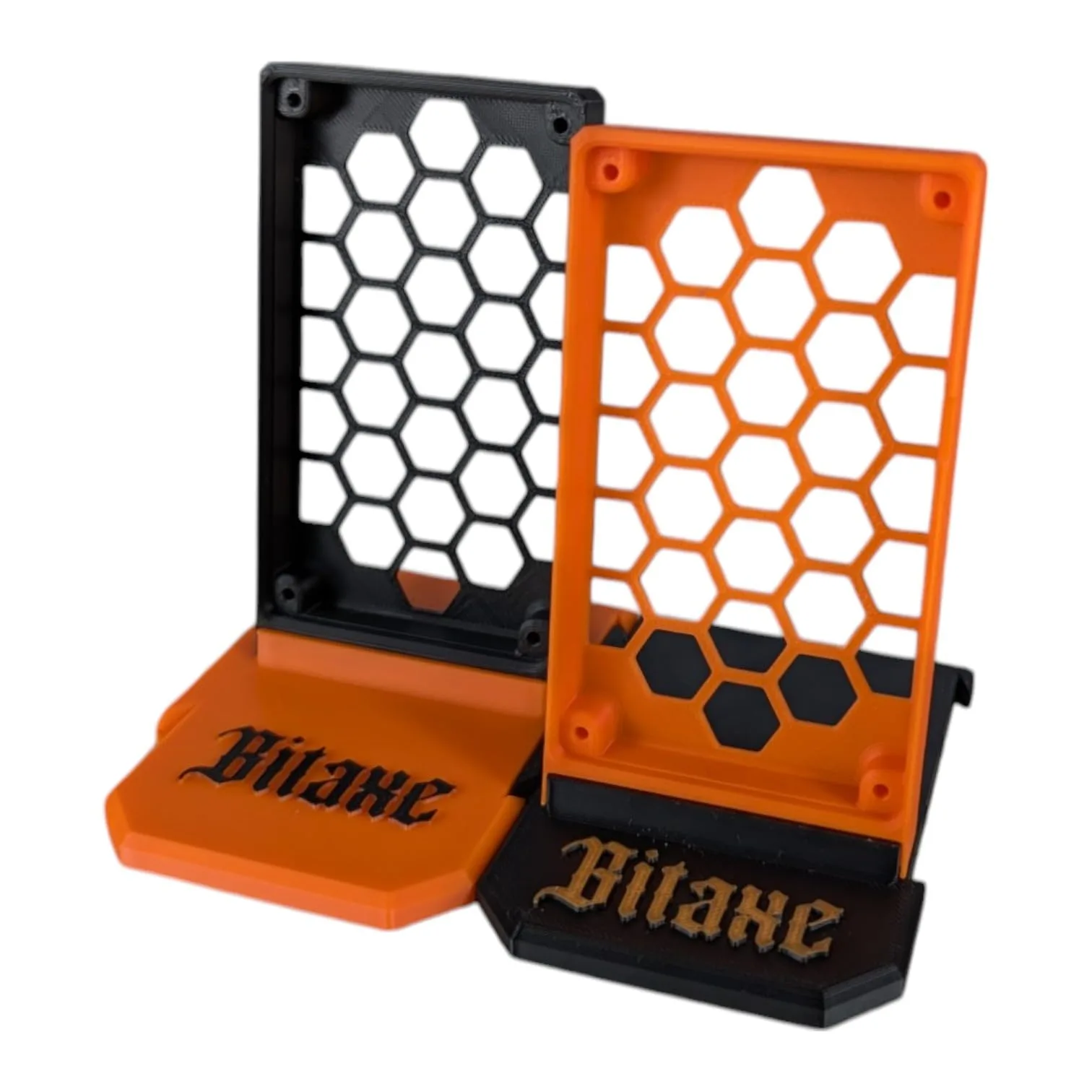

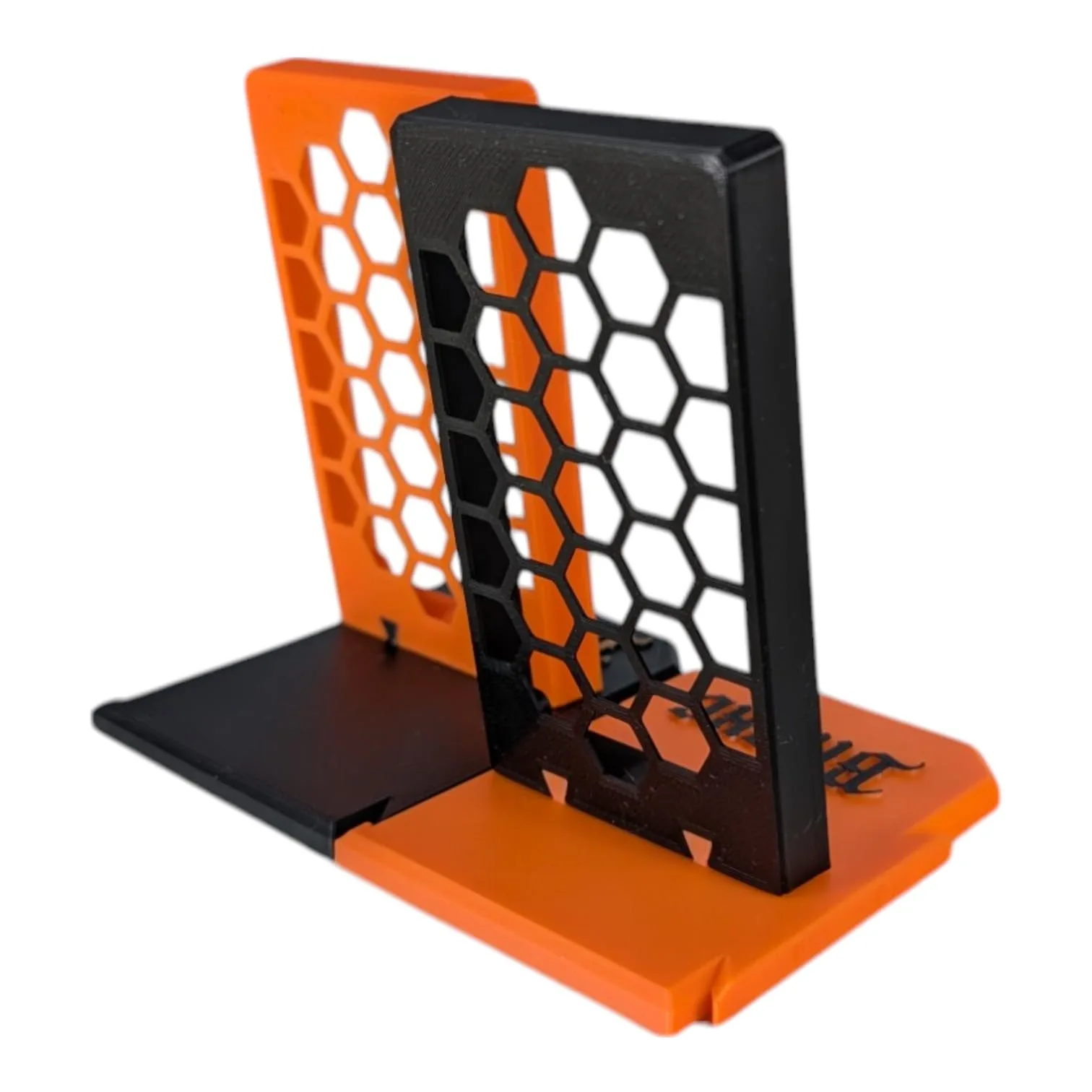

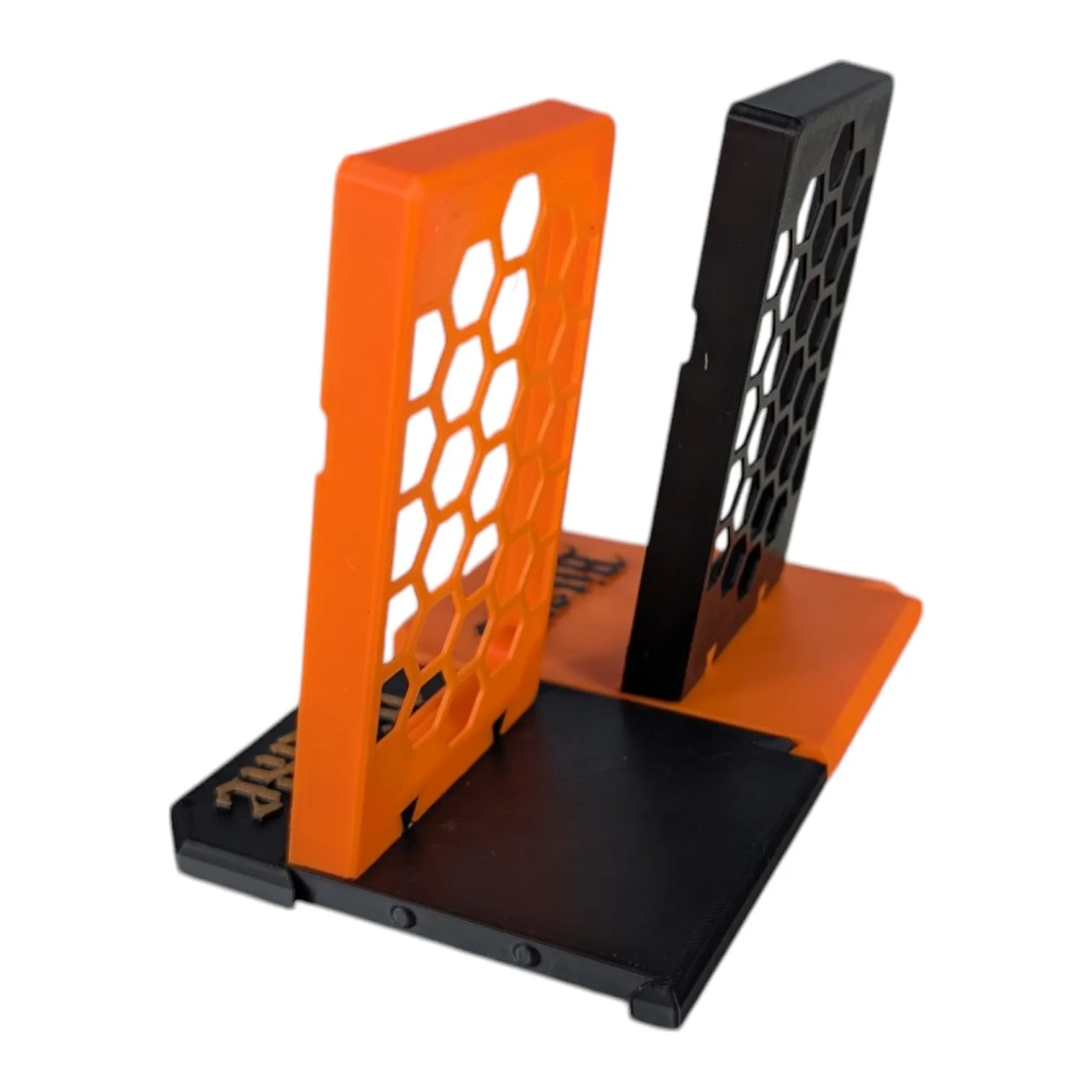

The Bitaxe Infinity Case is a modular, clippable enclosure system that lets you build a scalable Bitaxe mining rack — one pair at a time. Each 2-pack includes two interlocking cases that clip together vertically, creating a stackable column of Bitaxe miners with consistent spacing, organized airflow, and zero desk clutter. Buy one pack for two miners, buy three packs for a six-unit tower.
The honeycomb vent pattern on each case provides airflow from multiple angles while protecting the PCB from dust and accidental contact. The interlocking clip mechanism is tool-free — snap cases together or pull them apart in seconds. Designed by GoBrrr.me and 3D-printed by D-Central Technologies in Canada using PLA filament.
Specifications
| Specification | Detail |
|---|---|
| Quantity | 2 cases per pack |
| Material | PLA (biodegradable, 3D-printed) |
| Ventilation | Honeycomb pattern on multiple sides |
| Modularity | Clip-together vertical stacking (no tools) |
| Port Access | Full — power jack, USB-C, OLED, antenna |
| Compatibility | All single-board Bitaxe models |
| Designer | GoBrrr.me |
| Printed By | D-Central Technologies, Laval, Quebec, Canada |
Key Features
- Infinite Scalability: Each 2-pack clips onto the next. Start with two miners, expand to twenty — the system scales with your mining setup. No racks, shelves, or custom mounting required.
- Tool-Free Assembly: Snap-fit interlocking clips connect and disconnect in seconds. Rearrange your stack, add units, or remove one for maintenance without touching a screw.
- Honeycomb Airflow: The vent pattern provides consistent cross-ventilation across stacked miners, preventing heat buildup in multi-unit configurations.
- Full Port Access: Power, USB-C, OLED display, and antenna are all accessible while the Bitaxe is mounted in the case.
- Space Efficient: The vertical stacking design uses minimal desk footprint. A 6-unit Bitaxe tower takes up less space than a coffee mug.
What’s Included
- 2x Bitaxe Infinity Case modules (interlocking, clippable)
Bitaxe miners, power supplies, and heatsinks sold separately.
Compatibility
- Bitaxe Max (100 Series)
- Bitaxe Ultra (200 Series)
- Bitaxe Supra (400 Series)
- Bitaxe Gamma (600 Series)
Frequently Asked Questions
Q: How many cases can I stack together?
There is no hard limit — the clip system allows indefinite vertical stacking. In practice, 6-10 units tall is stable on a flat surface. Beyond that, consider securing the stack against a wall or using a base plate.
Q: Does heat build up in a tall stack?
The honeycomb vent pattern provides airflow to each unit independently. Each Bitaxe has its own onboard fan pulling air through its section of the stack. In testing, stacked configurations do not show meaningful temperature differences between bottom and top units.
Q: Will these work with aftermarket heatsinks?
Yes, standard Bitaxe heatsinks fit within the case. Tower-style coolers may protrude above the case walls — check dimensions before purchasing if you use oversized cooling.
Q: Can I buy just one case?
They are sold in 2-packs because the modularity requires at least two units to demonstrate the stacking system. Individual cases are not available separately.
Why D-Central
D-Central Technologies prints every Infinity Case in-house at our Laval, Quebec facility. As a pioneer in the Bitaxe ecosystem — the first company to manufacture a Bitaxe stand — we have deep experience with Bitaxe form factors and accessory design. Every case is inspected for clip fit and dimensional accuracy before shipping.
