Whatsminer M3x Exhaust Shroud for AC Infinity Cloudline T8

Description

Whatsminer Exhaust Shroud Cloudline T8

The Whatsminer exhaust shroud cloudline t8 is a reliable choice for Bitcoin mining operations.

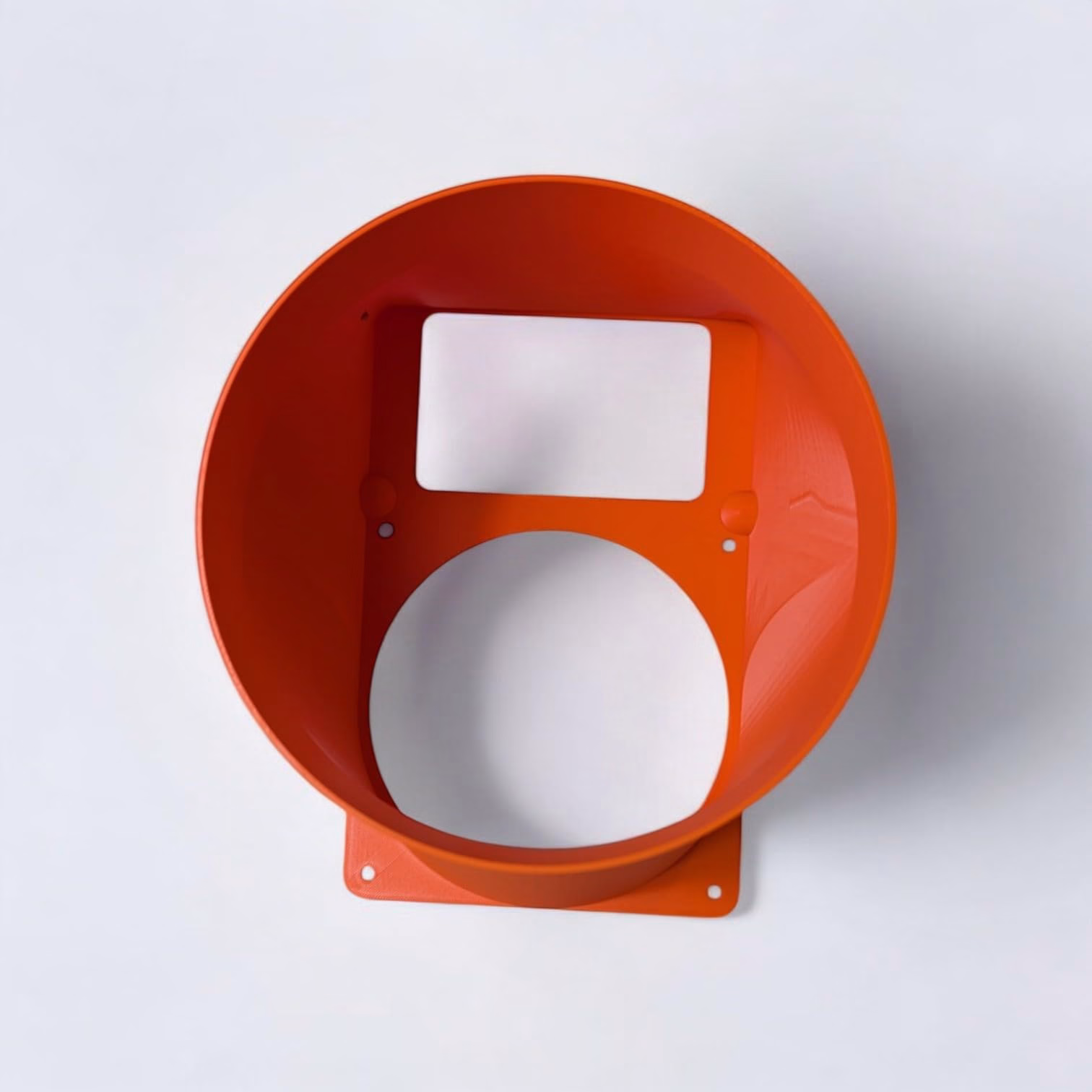

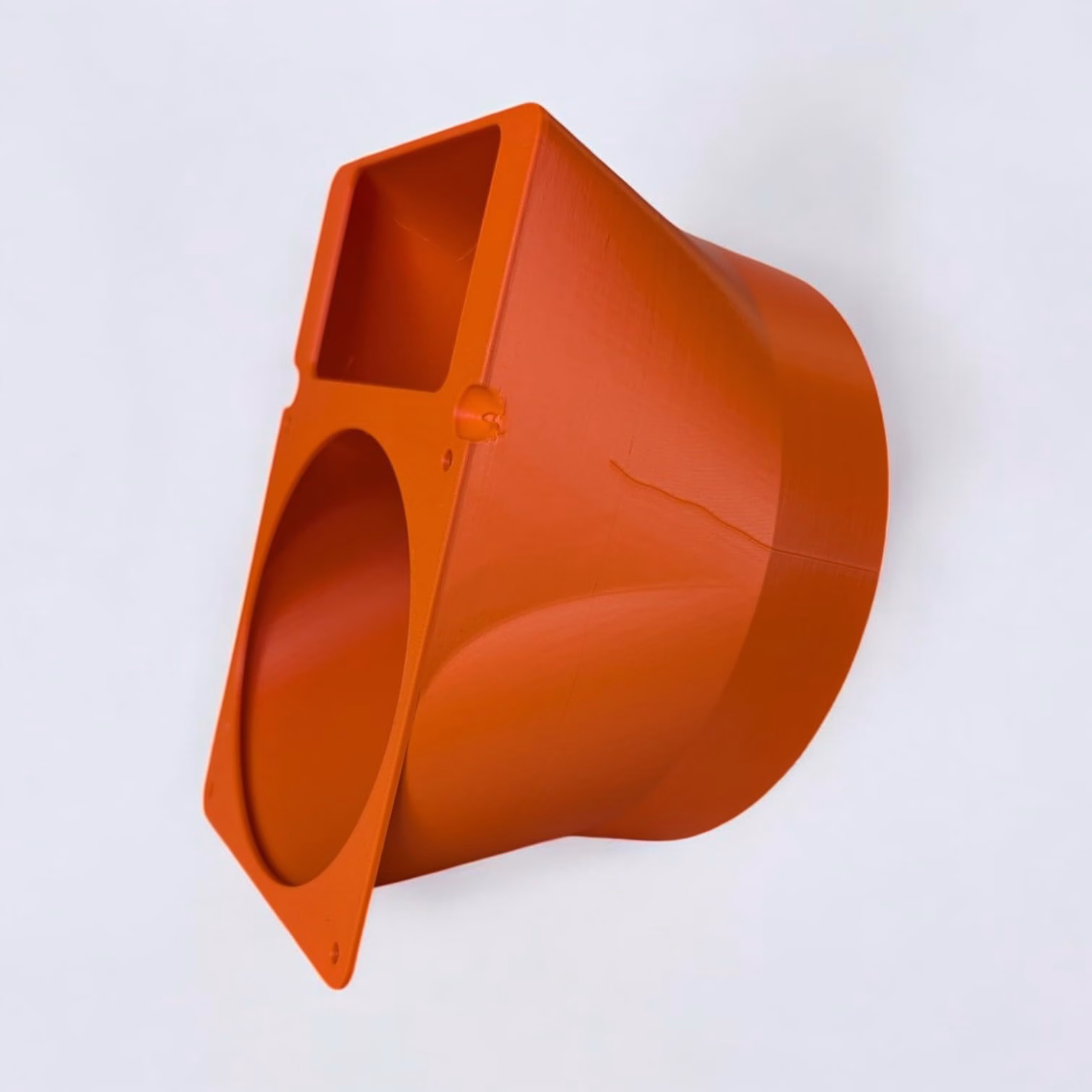

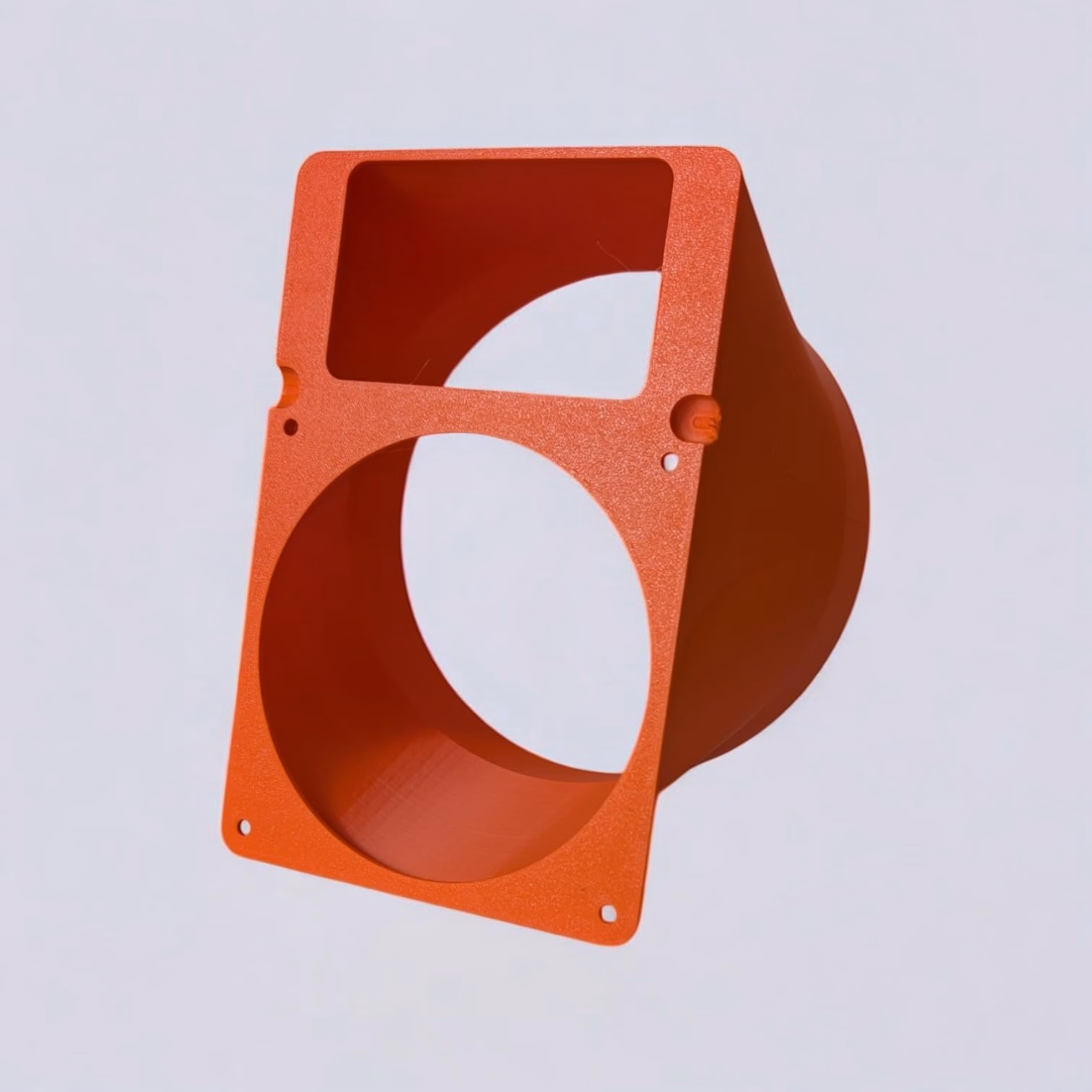

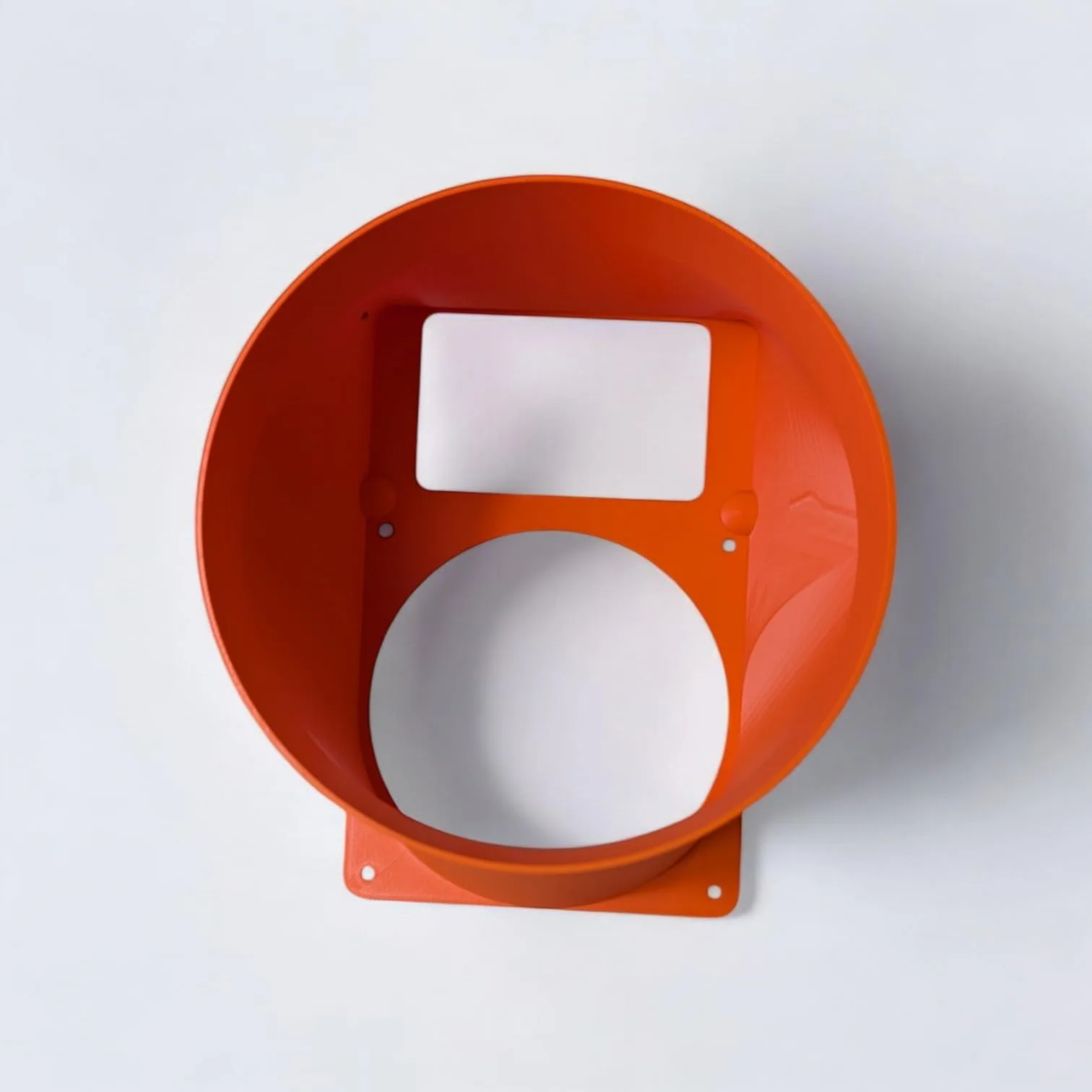

Direct your Whatsminer M30, M30S, M31S, M30S+, M30S++, or M33S+ exhaust straight into an AC Infinity Cloudline T8 inline fan for silent, efficient heat extraction. This 3D-printed exhaust shroud captures the full output of your Whatsminer’s rear exhaust and funnels it into the T8’s 8-inch intake — no duct hose required.

How It Works

The shroud mounts over the Whatsminer’s exhaust side and transitions the rectangular output into a round outlet sized to slip directly inside the Cloudline T8’s intake. Set the T8 on the same surface behind your miner, slide the shroud outlet into the fan, and you have a sealed airflow path. The T8 then pushes the hot air through 8-inch ducting to wherever you want it — outside, into another room, or through a wall.

Specifications
Inlet	Whatsminer M3x series exhaust (rectangular)
Outlet	8-inch round (fits inside Cloudline T8 intake)
Material	3D-printed PETG (heat-resistant)
Connection	Direct slip-fit into AC Infinity Cloudline T8
Ducting Required	No (T8 sits directly behind miner)

Compatible Miners

• MicroBT Whatsminer M30, M30S, M30S+, M30S++
• MicroBT Whatsminer M31S, M31S+
• MicroBT Whatsminer M33S+
• Other M3x series Whatsminers with the same chassis dimensions

Note: AC Infinity Cloudline T8 fan sold separately.

Will this fit other inline fans besides the Cloudline T8?

This shroud is specifically designed to slip inside the AC Infinity Cloudline T8’s intake. Other 8-inch inline fans may work if their intake diameter is similar, but fit is not guaranteed. You can also connect 8-inch ducting to the outlet and run it to any 8-inch fan.

Does this capture PSU exhaust too?

Yes. The shroud is designed to capture exhaust from both the hashboards and the power supply unit, giving you full heat extraction from your Whatsminer.

D-Central Technologies — Bitcoin Mining Hackers since 2016. Engineered accessories for the home miner. Every hash counts.
