Turn your Bitaxe into a real Bitcoin mini miner. This universal DIY enclosure kit upgrades your Bitaxe with a professional industrial look, improved cooling, and quieter operation. Compatible with all Bitaxe models, easy to assemble, and optimized for performance.

Give Your Bitaxe the Look of a Real Mini Miner

Upgrade your Bitaxe miner with this high-quality Mini Miner DIY enclosure kit, designed to transform your Bitaxe into a professional-looking ASIC mini miner. Inspired by industrial mining hardware from brands like Bitmain Antminer and Canaan Avalon, this enclosure delivers both style and performance.

Beyond its premium appearance, the Bitaxe Mini Miner DIY Kit is engineered for better cooling, lower noise, and enhanced mining stability. It supports a larger, quieter fan and improved heatsinks while keeping the same compact footprint.

This universal DIY kit for Bitaxe is compatible with all Bitaxe models. Simply add your Bitaxe board—everything else is included.

Key Features & Benefits

• Real mini miner enclosure for Bitaxe
• Improved cooling performance with optimized airflow
• Lower noise levels thanks to a larger, slower-spinning fan
• DIY-friendly assembly, no advanced tools required
• Universal compatibility with all Bitaxe miner boards
• Professional, industrial design that enhances your mining setup

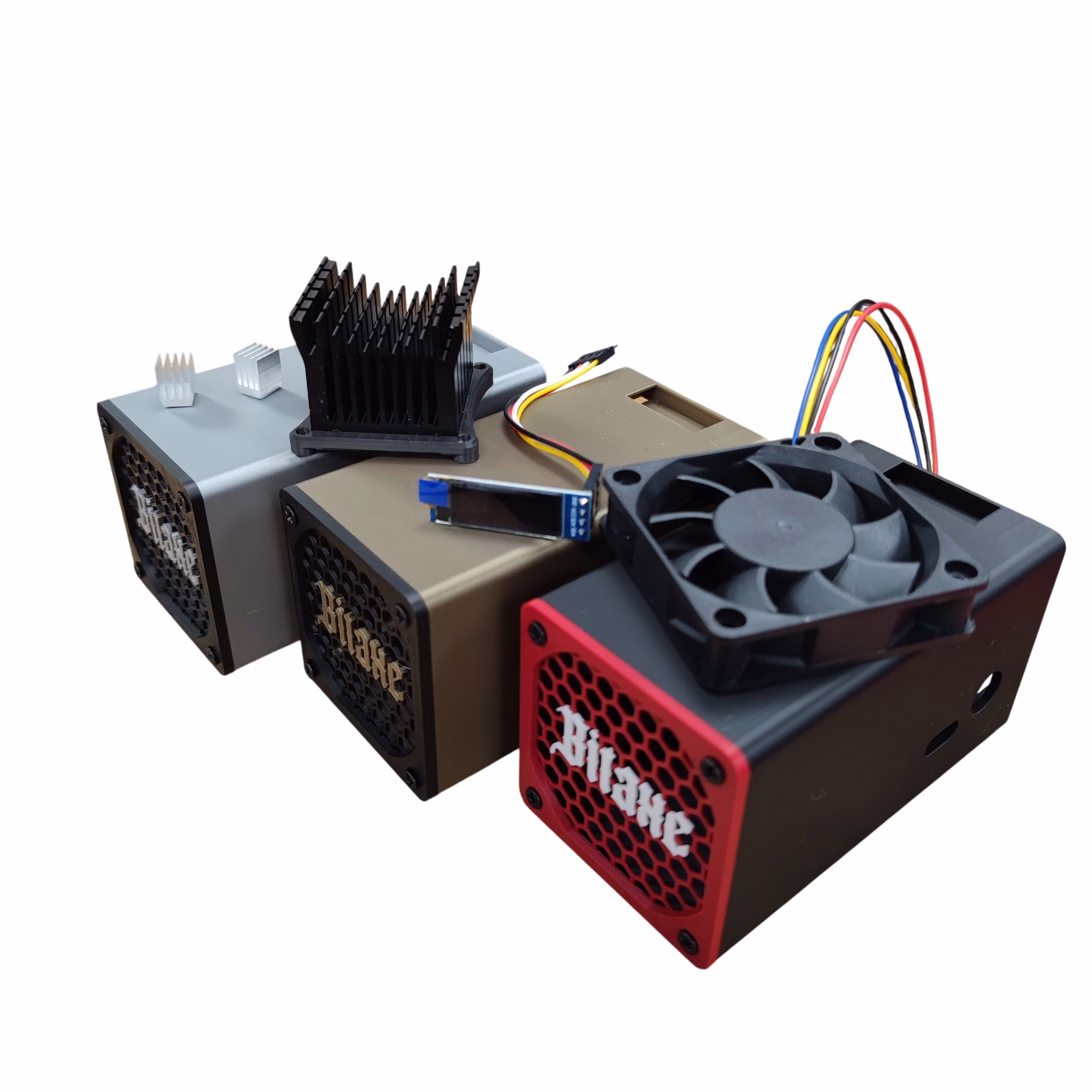

Enclosure Colors & Customization for Bitaxe

Available enclosure colors: Silver, Bronze, Black

• Silver & Bronze editions include a special black front grille with a matching Bitaxe logo in silver or bronze.
• Black enclosure owners can personalize their miner with a front grille in red, blue, black, purple, green, or orange.

All color options are carefully selected to create a cohesive experience between hardware and software, perfectly matching the color palette used in the AxeOS firmware interface.

Cooling Performance & Dimensions

Better cooling. Lower noise. Same footprint.

The enclosure maintains the compact size of the original Bitaxe while enabling a major upgrade: support for a larger, more efficient fan. The result is improved heat dissipation with significantly reduced noise.

Fan Comparison

Integration & Accessibility for Bitaxe Miner

• Seamless integration of the Bitaxe display
• Full access to USB-C port, Reset, and Boot buttons

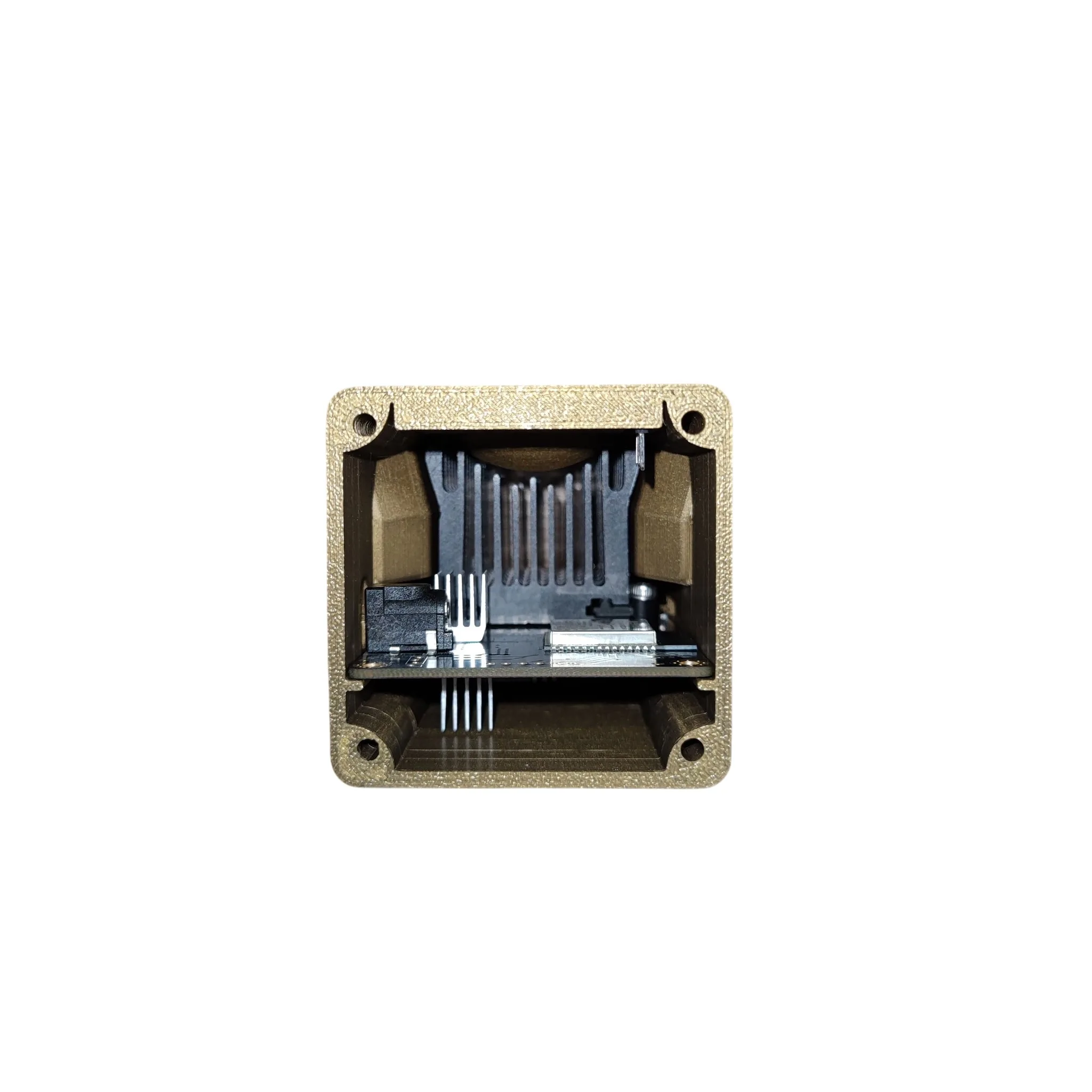

• Built-in airflow deflector channels air directly to the heatsink for maximum cooling efficiency

ASIC Cooling – Optimized for Bitcoin Mining

The kit includes a larger, high-performance aluminum heatsink, chosen for its excellent balance of availability and thermal efficiency.

Heatsink specifications:

• Aluminum heatsink: 40 × 40 × 40 mm
• Higher thermal mass for superior heat absorption
• Increased fin count and length for enhanced airflow
• Ready for overclocking via firmware settings

This upgraded heatsink improves heat transfer from the ASIC, allowing the fan to cool the chip more efficiently and consistently.

Voltage Regulator (VREG) Cooling for Stability

Efficient VREG cooling is essential for stable hashing, lower power consumption, and long-term reliability.

The enclosure is engineered with a single optimized airflow path, allowing one fan to cool both:

• the ASIC
• the Voltage Regulator (VREG)

Benefits of improved VREG cooling:

• Reduced power consumption
• Increased system stability
• Greater overclocking potential
• Extended hardware lifespan

VREG Heatsink Specifications

• Base thickness: 3 mm
• Dimensions: 6 × 9 × 12 mm
• Multiple tall fins for maximum heat dissipation
• Easy installation using the included thermal adhesive tape

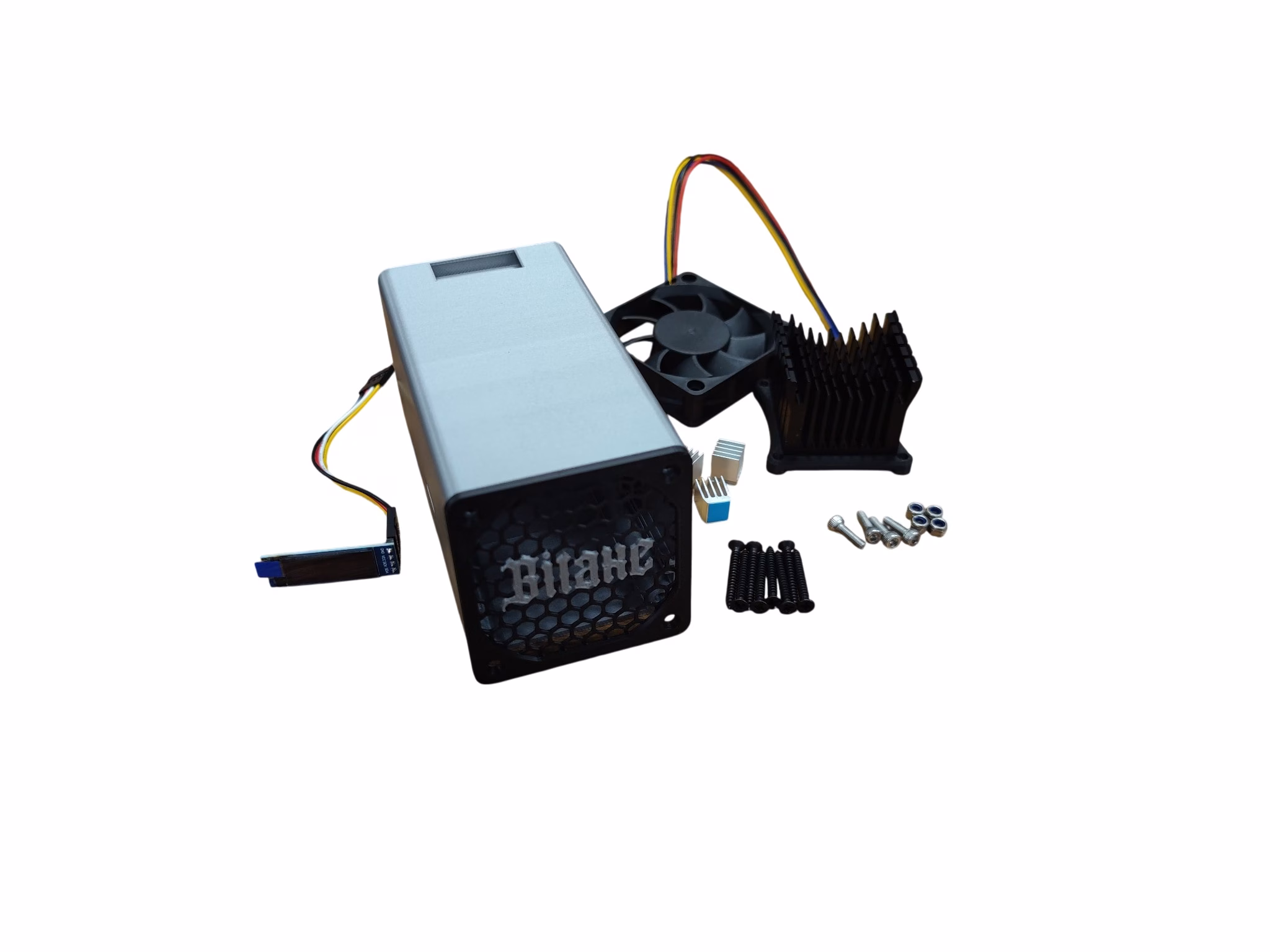

What’s Included in the Bitaxe Mini Miner DIY Kit

• 3D-printed enclosure (PETG)
• ASIC heatsink
• VREG heatsink
• 60 × 60 × 15 mm fan – 5V / PWM / 4000 RPM
• Display mounting adapter cable
• Mounting hardware:
  • 8 × M3 × 25 mm screws
  • 4 × M3 × 10 mm screws
  • M3 nuts for ASIC heatsink
• Standard thermal paste
  (High-quality thermal paste recommended for optimal performance)

Benchmark Testing for Bitaxe Basic Cooling

Benchmark Testing for Bitaxe Mini Miner Kit – Modern Minibit

As you can see, the voltage regulator temperature is impressively cool!

Note: We recommend not exceeding 700 MHz with a 5V 6A power supply.

Upgrade your Bitaxe Bitcoin miner with a professional mini miner enclosure kit, optimized for cooling, silence, and long-term mining performance.
