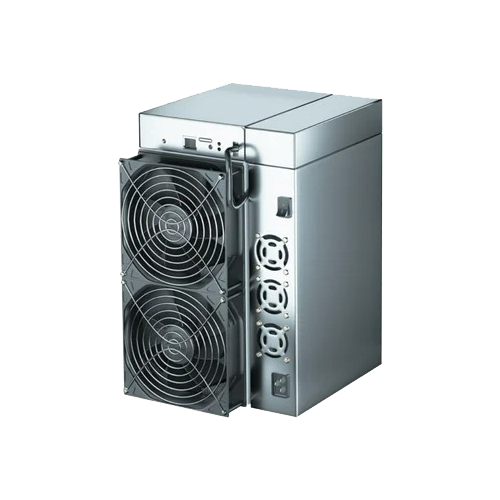

Goldshell AE MAX II official specifications
540 MH/s ±5%, 3200 W ±5%, 5.93 J/MH native efficiency, exact physical and electrical boundaries from the official model table.
Quick answer
The Goldshell AE MAX II official specifications is a Zksnark miner rated about 540 MH/s at roughly 3,200 W.
Full Specifications
| Model | Goldshell AE MAX II official specifications |
|---|---|
| Model Number | AE Max II |
| Manufacturer | Goldshell |
| Algorithm | Zksnark |
| Hashrate | 540 MH/s |
| Power Consumption | 3,200 W |
| Efficiency | 5.93 J/MH |
| Noise Level | 60 dB |
| Voltage Range | 180-280 VAC facility input |
| Operating Temperature | 0-35 C |
| Dimensions | 264 x 200 x 290 mm |
| Weight | 12.45 |
| Status | Lifecycle not independently verified |
Goldshell AE MAX II specifications and installation boundary
The official MAX-series table lists this exact zkSNARK/ALEO model at 540 MH/s ±5%, 3200 W ±5%, and 5.93 J/MH. Efficiency is published only in native J/MH.
Official specification
Machine dimensions are 264 × 200 × 290 mm and net weight is 12.45 kg. Package dimensions are 380 × 305 × 450 mm and gross weight is 13.6 kg. The acoustic ceiling is 60 dB, fan speed is 7000 rpm, connection is Ethernet, operating temperature is 0–35°C, and relative humidity is 65% or less.
Facility input boundary
The documented input range is 180–280 VAC. The table labels the power-cable specification as 16A but does not identify a connector or prescribe a branch circuit. A qualified electrician must size the circuit, conductors, protection, receptacle/connector, and continuous-load margin from the exact unit and cable nameplates plus local code. Do not infer those requirements from watts alone.
Firmware boundary
No exact AE MAX II firmware artifact is listed in the official catalog reviewed for this record. Do not flash firmware from AE MAX or another model.
Official MAX specifications · Official firmware catalog
No low-power mode, connector, branch-circuit, release, MSRP, home-suitability, heating, profitability, solo-mining, or parts-fitment claim is made.
