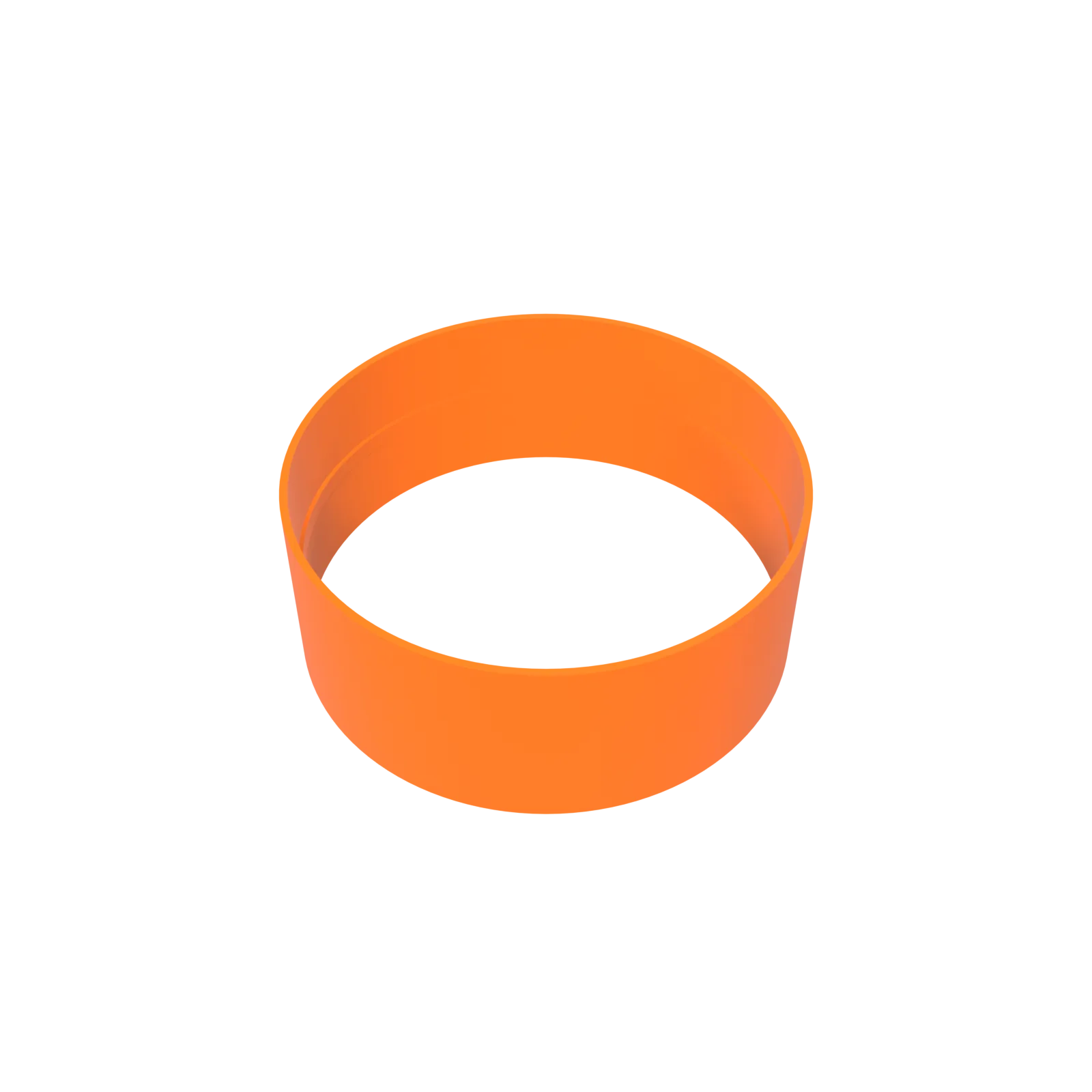

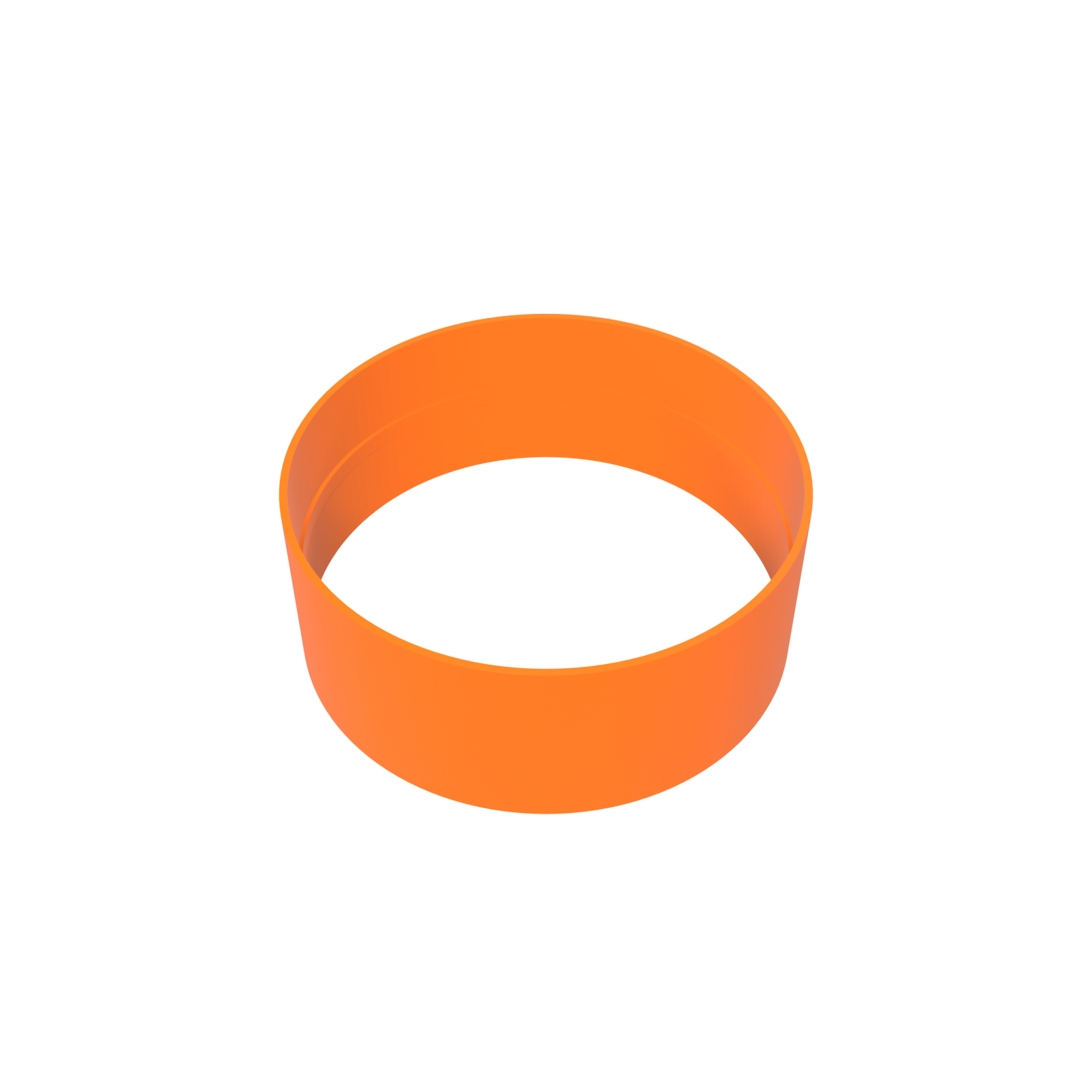

6″ Duct Coupler

Description

6 inch duct coupler — the joint that replaces foil tape

A 6 inch duct coupler is the least glamorous part in the catalogue and the one people come back for most often. Duct runs are never the length you planned. Something comes up short, something gets cut wrong, a section gets torn moving a rack, and the default fix is a butt joint wrapped in foil tape that works right up until the first time it gets warm and moved.

This is the alternative: a 62 mm barrel with a moulded centre stop, so both ducts seat to the same depth and neither one wanders down inside the other. Each side of the barrel has enough length left over that a band clamp lands on duct and coupler together rather than half hanging off the end.

Drawn in-house to the same 6-inch collar standard as every shroud, elbow, port and splitter D-Central makes, which is why it doubles as the universal spacer for the whole line.

What it fits

Standard 6-inch duct on both ends, flexible or rigid, in any combination. It also mates directly to the collar of any 6-inch fitting in the line, so you can use it to bridge two fittings that would otherwise not reach each other. If your run is 8-inch, the same part exists at that size as the 8″ Duct Coupler. If you need to join 6-inch to 8-inch, that is a change of size and therefore the 8″ to 6″ Duct Reducer, not a coupler. For a joint you want to take apart regularly without tools, look at the Bayonet Duct Receiver 6-Inch.

How it installs

1. Push the first duct over one end of the barrel until it meets the centre stop.
2. Push the second duct over the other end until it meets the same stop.
3. Run a worm-drive band clamp over each side.
4. Support the coupler if the joint falls mid-span between hangers.

That is the whole install. No adhesive, no sealant, no tape, and the joint comes apart again in the order it went together when you want to change the layout.

Why a mechanical joint beats a taped one

A taped butt joint has nothing holding the two duct ends in line. It sags into the airflow, the tape adhesive creeps once the exhaust warms it, and the seam starts leaking hot air back into the room you built the duct run to keep cool. A coupler gives the joint a rigid internal former, a positive depth stop, and two clamp landings. The failure mode is removed rather than delayed.

• Seats both ducts to equal depth against a moulded centre stop
• Holds the duct ends in line so the joint cannot sag into the flow
• Takes a band clamp on each side for a joint that reopens without cutting
• Doubles as a straight spacer between any two 6-inch fittings in the line
• Resists exhaust-side heat in PETG, where a PLA fitting would soften

Specifications

Open source — the file is free, the part is made to order

A coupler is exactly the sort of thing nobody should have to pay a licence for. D-Central Technologies drew this one — the barrel, the centre stop, the two clamp lands — and published it open source under CC BY-SA 4.0 at the 3D models download center, free to download, modify, remix, print and sell. Its card is the 6″ duct coupler model. Ours from the first sketch, not a file we found and tidied up.

The direct download is coupler_6.zip: the STL, the CC BY-SA 4.0 licence, and the installation and safety guide. If you would rather have the part in your hand tomorrow than make one tonight, this listing is the finished coupler, made to order in PETG and shipped from Montreal, Quebec, in black or in D-Central orange. The file never stops being free; buying the part, or giving at D-Central’s fund page, is what funds the next fitting we draw.

Works with

• 8″ Duct Coupler
• 6″ 45° Duct Elbow
• 6″ 90° Duct Elbow (Compact)
• 6″ Window Exhaust Port
• 6-Inch Flex Duct Adapter

Buy the shroud and the fittings from the same shop and they mate on the first try. See the D-Central shroud and ducting system.
