Goldshell AE BOX II specifications and service reference
Goldshell AE BOX II official 54 MH/s zkSNARK matrix in native J/MH units, exact 12 VDC external-PSU boundary, physical facts, and firmware routing.
Quick answer
The Goldshell AE BOX II specifications and service reference is a Zksnark miner rated about 54 MH/s at roughly 530 W.
Full Specifications
| Model | Goldshell AE BOX II specifications and service reference |
|---|---|
| Manufacturer | Goldshell |
| Algorithm | Zksnark |
| Hashrate | 54 MH/s |
| Power Consumption | 530 W |
| Efficiency | 9.81 J/MH |
| Noise Level | 35 dB |
| Voltage Range | 12 VDC device input; external PSU required |
| Operating Temperature | 10-35 C |
| Dimensions | 171 x 198 x 96 mm |
| Weight | 2.54 kg |
| Status | Lifecycle not independently verified |

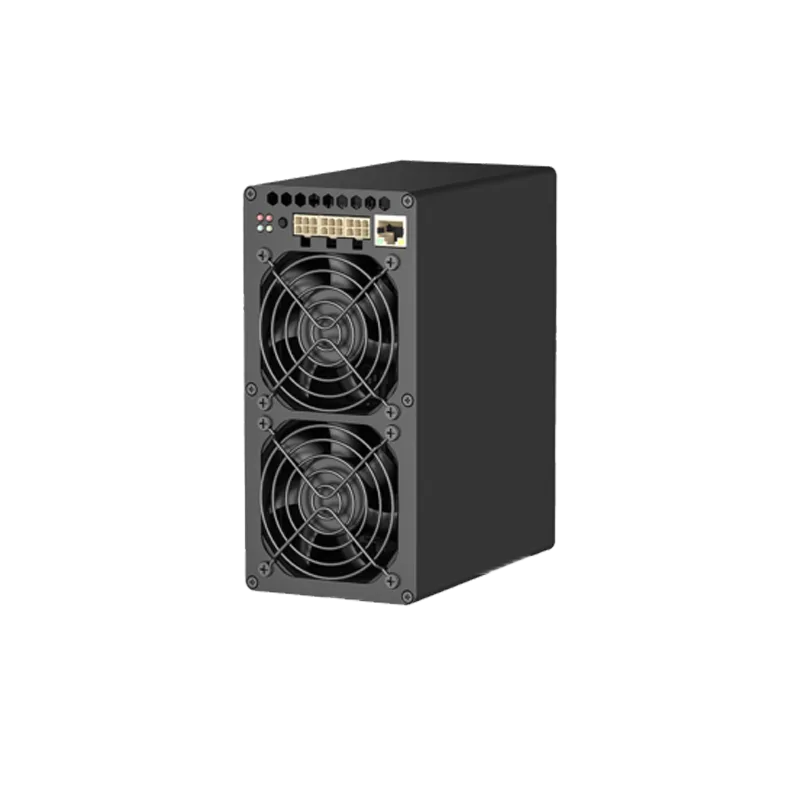

Goldshell AE BOX II
The manufacturer publishes this exact zkSNARK/ALEO miner at 54 MH/s ±5%, 530 W ±5%, and 9.81 J/MH. These native units must not be normalized to J/TH.
Exact OEM facts
The machine measures 171 × 198 × 96 mm and weighs 2.54 kg net. The package measures 300 × 220 × 142 mm and weighs 2.95 kg gross. The published acoustic ceiling is 35 dB or less. Connection is labeled Dual-Mode, relative humidity is 65% or less, and the fan specification is 4500 rpm.
Temperature evidence
The specification table lists 0–35°C, while the manufacturer’s safety guidance says to maintain 10–35°C. Use the conservative 10–35°C operating range. The broader table endpoint is disclosed here as a source conflict, not as an installation recommendation.
Power boundary
The miner is a 12 VDC-input device and requires a separate power supply. The manufacturer offers a configuration with an external 1500 W PSU and states that BOX models without PLUS require a separately supplied PSU. The table’s exact label is Power Cable: 10A; this is retained only as an OEM label and is not interpreted as device current, facility current, circuit rating, or connector specification. Verify the selected PSU, its output cabling, its own AC nameplate, and local electrical requirements before installation. Do not connect facility AC directly to the miner’s 12 VDC input.
Firmware and service
The exact official artifact is firmware-Goldshell-AEBoxⅡ-2.2.3.cpb. Confirm the exact AE BOX II directory and filename before upgrading. The manufacturer warns not to turn off power or operate the miner during a firmware upgrade.
Official product page · Official firmware directory · ASIC repair · Fault finder
No facility-voltage, facility-current, home-use, heat, economics, release-date, list-price, internal-component, accessory-fitment, tuning, or compatibility claim is made.
