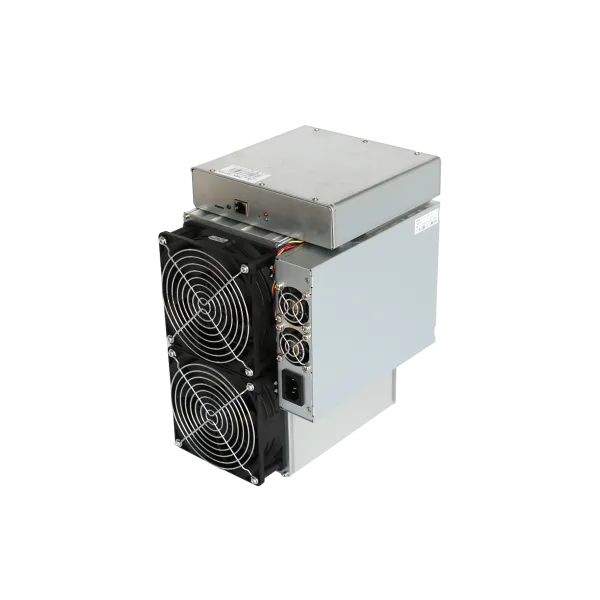

Bitmain Antminer DR5 35 TH/s official reference
Official DR5 reference: 35 TH/s, 1,610 W and 46 J/TH, with its attached-PSU electrical boundary and exact support routes.
Quick answer
The Bitmain Antminer DR5 35 TH/s official reference is a Blake256r14 miner rated about 35 TH/s at roughly 1,610 W.
Full Specifications
| Model | Bitmain Antminer DR5 35 TH/s official reference |
|---|---|
| Model Number | Antminer DR5 |
| Manufacturer | Bitmain |
| Algorithm | Blake256r14 |
| Coins Mined | Unknown |
| Hashrate | 35 TH/s |
| Power Consumption | 1,610 W |
| Efficiency | 46 J/TH |
| Cooling | Air |
| Voltage Range | PSU attached; facility mains unresolved pending exact installed label |
| Dimensions | 238 x 297 x 178 mm |
| Weight | 7.8 kg net |
| Status | OEM support reference |
Evidence-controlled DR5 reference: Bitmain’s algorithm map associates DR5 with DCR/Decred and HC under Blake_256. The exact OEM specification supports one 35 TH/s lane.
| Hashrate | Power | Efficiency |
|---|---|---|
| 35 TH/s ±2% | 1,610 W ±7% | 46 J/TH ±7% |
The former 34 TH/s / 1,800 W / 52.9 J/TH production lane is withheld because no matching exact primary Bitmain specification was found. No cross-bin assumption is made.
Electrical and physical boundary
Bitmain identifies DR5 as an all-in-one, PSU-attached miner and its roster maps DR5 to APW8. Exact AC voltage, frequency, current, cord, connector, and switching sequence are not published in the exact DR5 specification and remain unresolved. A qualified person must verify the installed labels and facility circuit before energizing.
| Operating frequency | 600M, as printed |
|---|---|
| Fans | Two 12038; 4,600 RPM front/rear; 12 V / 2.4 A; 209.8 CFM |
| Hashboards / chips | 3 / 216 total |
| Chip temperature | 85°C |
| Operating temperature / humidity | 0–40°C / 5–95% RH non-condensing |
| Sound | 76 dB |
| Dimensions / packed | 238 × 297 × 178 mm / 486 × 388 × 265 mm |
| Weight / packed | 7.8 kg / 9.4 kg |
Firmware, diagnostics, and repair
- Select DR5 and the exact revision in Bitmain’s firmware selector.
- Use Bitmain’s DR5 support hub.
- Use Bitmain’s diagnostic guide.
- Organize symptoms and logs.
- Open the exact DR5 repair route.
- Open general ASIC repair.
- Open the DR family hub.
No architecture, tuning, economics, residential, heat-use, parts-interchangeability, or cross-generation claim is asserted. Sources: DR5 specification, algorithm map, PSU roster, and fan table. Reviewed August 28, 2026.
