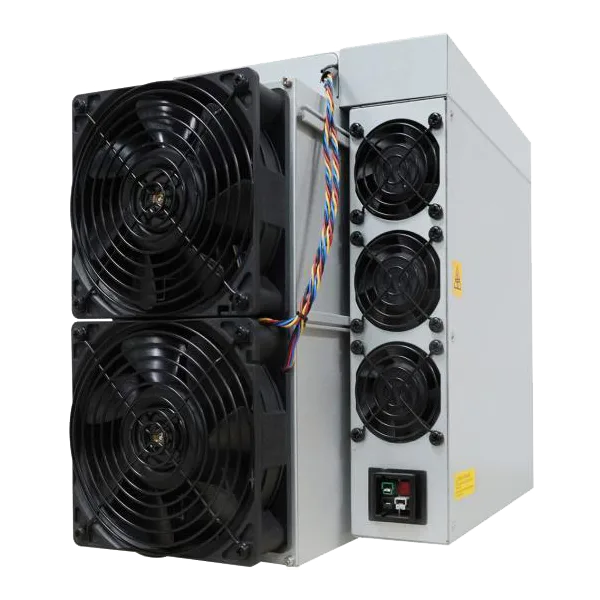

Bitmain Antminer DR7 official source-conflict reference
Official DR7 reference: 127 TH/s and 2,730 W, with the printed J/Ksol efficiency conflict and exact dual-input electrical boundary disclosed.
Quick answer
The Bitmain Antminer DR7 official source-conflict reference is a Blake256r14 miner rated about 127 TH/s at roughly 2,730 W.
Full Specifications
| Model | Bitmain Antminer DR7 official source-conflict reference |
|---|---|
| Model Number | Antminer DR7 |
| Manufacturer | Bitmain |
| Algorithm | Blake256r14 |
| Coins Mined | Unknown |
| Hashrate | 127 TH/s |
| Power Consumption | 2,730 W |
| Efficiency | 21.5 J/TH |
| Cooling | Air |
| Voltage Range | 220-240 V AC; 47-53 Hz; two 10 A input wires; 20 A maximum |
| Dimensions | 430 x 195.5 x 290 mm |
| Weight | 16.1 kg net |
| BTU Output | 9,315 BTU/hr |
| Equivalent Heater | Equal to a 2,730W space heater |
| Daily Power Cost | $4.59/day |
| Monthly Power Cost | $137.59/mo |
| Circuit Requirement | 220-240 V AC; 47-53 Hz; two 10 A input wires; 20 A maximum - confirm phases, current, connector and protection from the nameplate and manual |
| Status | OEM support reference |
Evidence-controlled DR7 reference: the exact Bitmain specification prints the algorithm/coin lane as Blake256(r14) / SCP. That wording is retained as a source claim; it is not replaced with DR3/DR5’s Blake_256/DCR/HC map.
| Hashrate | Wall power at 25°C | Printed OEM efficiency | Transparent arithmetic |
|---|---|---|---|
| 127 TH/s | 2,730 W | 21.5 J/Ksol | 2,730 ÷ 127 ≈ 21.496 J/TH |
Official-source unit conflict: J/Ksol is dimensionally incompatible with the source’s TH/s hashrate and direct arithmetic. Both are shown, but no normalized OEM efficiency is selected. Efficiency must be withheld from metadata and structured data.
Electrical and physical boundary
DR7 requires 220–240 V AC, 47–53 Hz, and 20 A through two AC input wires rated 10 A each. Wrong voltage can damage the server. A qualified person must verify both inputs, exact labels, cords/connectors, circuit capacity, protection, conductors, disconnecting means, grounding, and ventilation. No simultaneous-switching sequence is asserted.
| Network | RJ45 Ethernet 10/100M |
|---|---|
| Fans | Four 12038; 5,200 RPM front/rear; 12 V / 2.35 A; 360 CFM |
| Dimensions / packed | 430 × 195.5 × 290 mm including PSU / 570 × 316 × 430 mm |
| Net / gross weight | 16.1 kg including PSU / 17.7 kg |
| Operating / storage temperature | 0–40°C / -20–70°C |
| Humidity / altitude | 10–90% RH non-condensing / up to 2,000 m |
From 900 m to 2,000 m, reduce the highest operating temperature by 1°C per 300 m. Sound level is unresolved.
Firmware, diagnostics, and repair
- Select DR7 and the exact revision in Bitmain’s firmware selector.
- Use Bitmain’s exact DR7 specification.
- Use Bitmain’s diagnostic guide.
- Organize symptoms and logs.
- Request repair diagnosis with exact labels, photographs, logs, and prior firmware actions.
- Open the DR family hub.
No architecture, tuning, economics, residential, heat-use, parts-interchangeability, or cross-generation claim is asserted. Additional source: Bitmain fan table. Reviewed August 28, 2026.
