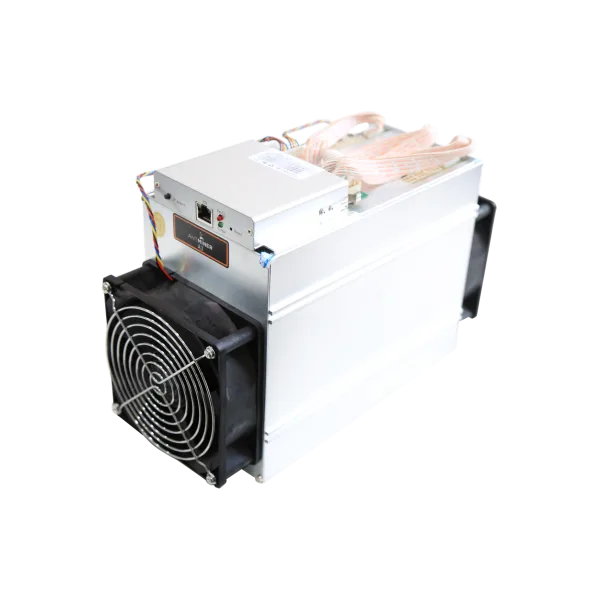

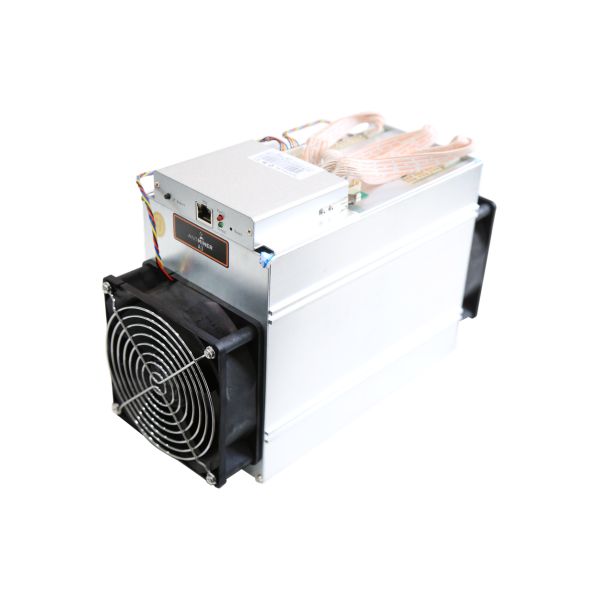

Bitmain Antminer T9+ SHA-256 official reference
Official T9+ reference: 10.5 TH/s, 1,432 W and 136 J/TH, with exact external-PSU, physical, thermal, firmware and EOS boundaries.
Quick answer
The Bitmain Antminer T9+ SHA-256 official reference is a Bitcoin miner rated about 10.5 TH/s at roughly 1,432 W (about 136 J/TH).
Full Specifications
| Model | Bitmain Antminer T9+ SHA-256 official reference |
|---|---|
| Model Number | Antminer T9+ |
| Manufacturer | Bitmain |
| Algorithm | SHA-256 |
| Coins Mined | Bitcoin (BTC) |
| Hashrate | 10.5 TH/s |
| Power Consumption | 1,432 W |
| Efficiency | 136 J/TH |
| Noise Level | 76 dB |
| Chip Count | 54 |
| Cooling | Air |
| Voltage Range | 11.6-13.0 V DC miner input; 10 PCIe; external APW3/APW5/APW7; facility mains unresolved |
| Operating Temperature | 0 C to 40 C |
| Dimensions | 321 x 187 x 131 mm |
| Weight | 3.7 kg net |
| Status | OEM EOS reference |
Evidence-controlled Antminer T9+ reference: T9+ is a distinct SHA-256 model, not a T9 bin.
| Hashrate | Power consumption | Efficiency | Frequency |
|---|---|---|---|
| 10.5 TH/s ±5% | 1,432 W ±7% | 136 J/TH ±10% | Auto |
Electrical boundary
The T9+ requires 11.6–13.0 V DC through ten PCIe power connectors. Bitmain’s current early-model roster supports APW3-series, APW5, and APW7 external power supplies. This miner-side DC evidence does not establish facility AC voltage, current, frequency, cord, or connector. A qualified person must verify the exact PSU revision and nameplate, facility supply, circuit protection, conductors, connectors, grounding, and disconnect.
Hardware, cooling, and environment
| Hashboards / chips | 3 / 54 total |
|---|---|
| Fans | Two 12038 fans; front 6,000 RPM, rear 4,500 RPM; 12 V / 2.4 A; 209.8 CFM |
| Operating temperature / humidity | 0–40°C / 5–95% RH, non-condensing |
| Published chip-temperature ceiling | 90°C |
| Sound | 76 dB |
| Miner dimensions / net weight | 321 × 187 × 131 mm / 3.7 kg |
| Packaged dimensions / gross weight | 435 × 215 × 305 mm / 4.4 kg |
Firmware, diagnostics, and service
- Select T9+ and the exact revision in Bitmain’s firmware selector; do not install T9 firmware.
- Open Bitmain’s T9+ support page.
- Read Bitmain’s T9+-specific multi-option firmware safeguards. This route does not establish support for T9.
- Confirm the supported external-PSU roster.
- Use Bitmain’s general diagnostic workflow.
- Organize symptoms and logs; request repair triage; open the T9 family hub.
End of service: Bitmain’s current roster prints May 9, 2020 for the T9+ group while an older notification prints May 10, 2020. The durable conclusion is that T9+ reached EOS in May 2020.
No architecture, economics, residential-use, heat-use, tuning beyond the exact official firmware warning, compatibility, or parts-interchangeability claim is asserted. Primary source: Bitmain T9+ Specifications. Reviewed August 28, 2026.
