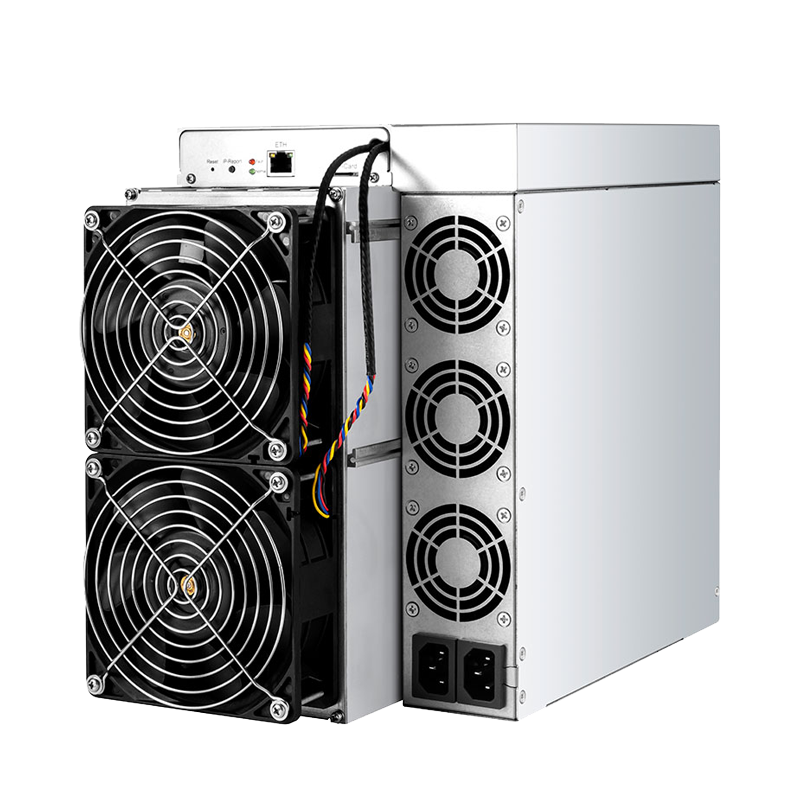

ElphaPex DG 1
Exact official-manual DG 1 reference with native efficiency, electrical, environmental and installation boundaries.
Quick answer
The ElphaPex DG 1 is a Scrypt miner rated about 11000 MH/s at roughly 3,420 W.
Full Specifications
| Model | ElphaPex DG 1 |
|---|---|
| Manufacturer | Elphapex |
| Algorithm | Scrypt |
| Hashrate | 11000 MH/s |
| Power Consumption | 3,420 W |
| Efficiency | 0.31 J/MH |
| Status | Exact official-manual reference |
Manufacturer-authored manual evidence
ElphaPex DG 1
Exact manual matrix
| Hashrate | Power at 25°C | Efficiency |
|---|---|---|
| 11,000 MH/s ±3% | 3,420 W ±10% | 0.31 J/MH ±10% |
These values belong only to DG1 manual V1.0.2.
Installation
FP-101 integrated PSU; 200–240 V AC, 47–63 Hz, specified input current 25 A. Both PSU sockets must be connected simultaneously and all inputs disconnected for shutdown. The manual says two cables, typically 10 A each. Use grounded nearby outlets and qualified electrical design.
- Network
- RJ45 Ethernet 10/100M
- Size
- 369.3 × 196 × 287 mm
- Package
- 480 × 289 × 387 mm
- Net/gross
- 16.1/17.4 kg
- Operating/storage
- 0–40°C / -20–70°C
- Humidity/altitude
- 10–90% RH non-condensing / ≤2000 m
Above 900 m, maximum temperature drops 1°C per 300 m. Outlet protection activates at 85°C.
Firmware and service
Manual example: DG1_SW_V1.0.2. Exact-model files only; maintain power and do not operate during update.
