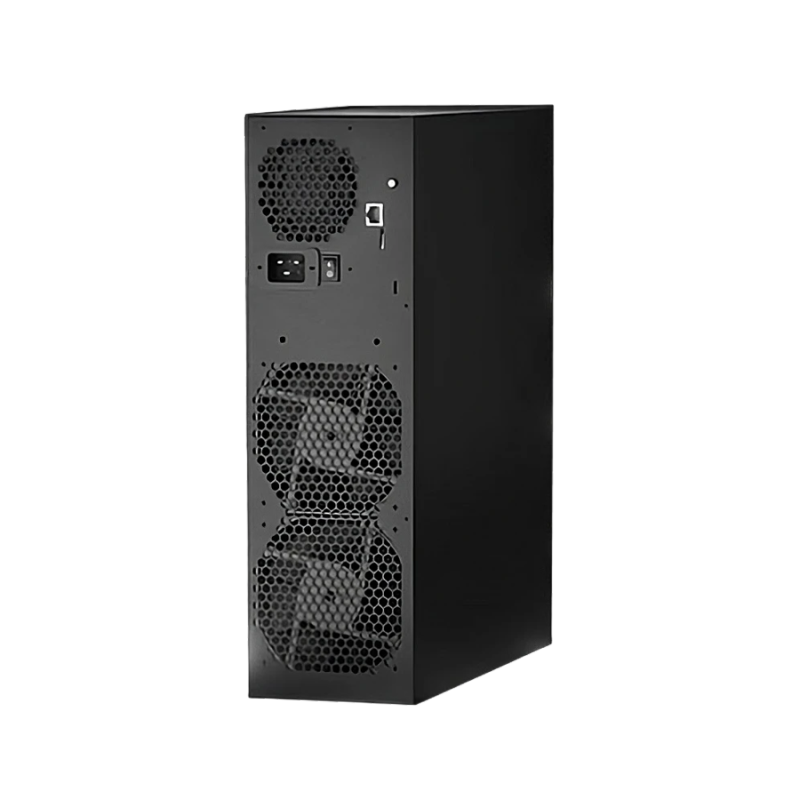

Goldshell E-DG1M
Two verified modes: 3.4 GH/s at 1800 W (0.53 J/MH) and 2.6 GH/s at 1100 W (0.42 J/MH), each +/-5%, with corrected coin, unit and firmware boundaries.
Quick answer
The Goldshell E-DG1M is a Scrypt miner rated about 3.4 GH/s at roughly 1,800 W.
Full Specifications
| Model | Goldshell E-DG1M |
|---|---|
| Model Number | E-DG1M |
| Manufacturer | Goldshell |
| Algorithm | Scrypt |
| Hashrate | 3.4 GH/s |
| Power Consumption | 1,800 W |
| Efficiency | 529 J/GH |
| Noise Level | 60 dB |
| Operating Temperature | 0-35 C tabulated; 10-35 C recommended-use prose |
| Dimensions | 443 x 360 x 135 mm |
| Weight | 16 kg |
| Status | Lifecycle not independently verified |
Goldshell E-DG1M verified two-mode specifications
This integrated Scrypt miner supports Litecoin (LTC), Dogecoin (DOGE), and Bellscoin (BELLS). Default mode is 3.4 GH/s ±5% at 1800 W ±5%, rated 0.53 J/MH. Low-power mode is 2.6 GH/s ±5% at 1100 W ±5%, rated 0.42 J/MH.
Physical and electrical boundaries
- Miner: 443 × 360 × 135 mm; 16 kg
- Package: 560 × 485 × 280 mm; 18.5 kg
- Built-in PSU; 110–240 VAC input
- OEM power-cable label: 16 A; it is not measured equipment current or universal breaker sizing
- Ethernet and Wi-Fi; 0–35 °C tabulated ambient, with 10–35 °C recommended-use prose; RH ≤65%
Official source conflict and firmware boundary
The exact product page says ≤45 dB and 3600 rpm, while the maintained ECHO table says ≤60 dB and 6000 rpm. Planning uses the conservative 60 dB ceiling. The exact E-DG1M firmware artifact is model-specific; do not substitute other Scrypt or E-series packages. A family-table low-mode unit defect is rejected in favor of the exact product page and nominal arithmetic.
Live revenue, profit, heater equivalence, launch price, and home-mining scores are unavailable without independently usable evidence.
