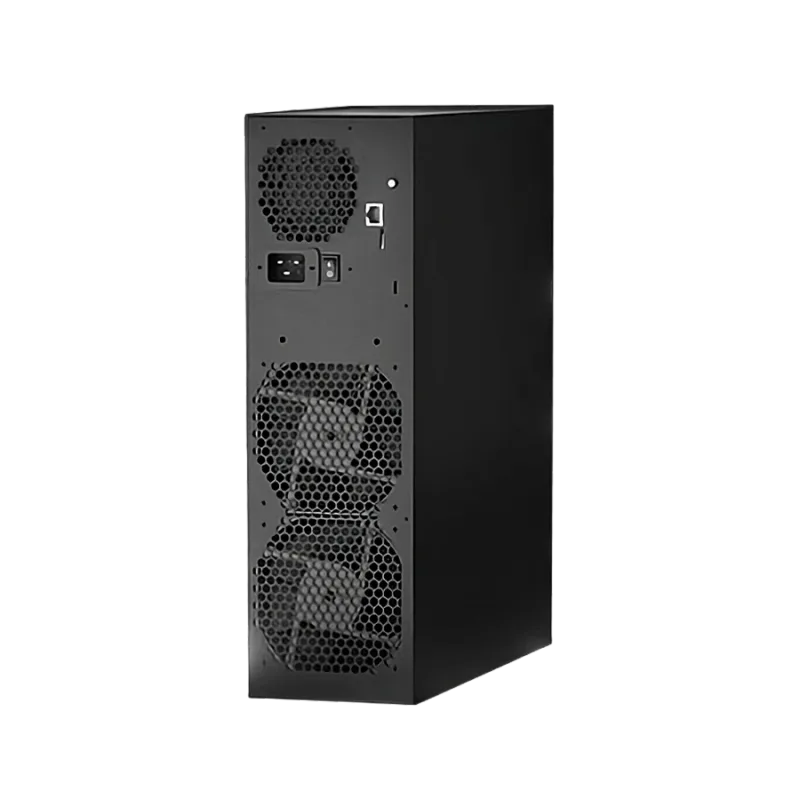

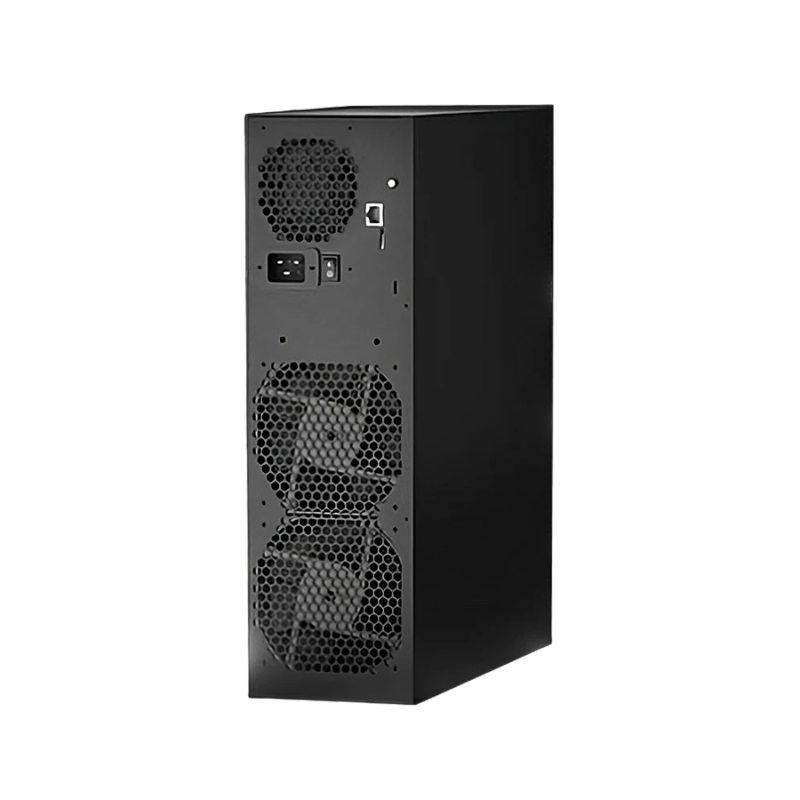

Goldshell E-KA1M
Two verified modes: 5.5 TH/s at 1800 W (327 J/TH) and 3.8 TH/s at 1100 W (289 J/TH), each +/-5%, with corrected chassis, AC and firmware boundaries.
Quick answer
The Goldshell E-KA1M is a KHeavyHash miner rated about 5.5 TH/s at roughly 1,800 W.
Full Specifications
| Model | Goldshell E-KA1M |
|---|---|
| Model Number | E-KA1M |
| Manufacturer | Goldshell |
| Algorithm | KHeavyHash |
| Hashrate | 5.5 TH/s |
| Power Consumption | 1,800 W |
| Efficiency | 327 J/TH |
| Noise Level | 60 dB |
| Operating Temperature | 0-35 C tabulated; 10-35 C recommended-use prose |
| Dimensions | 443 x 360 x 135 mm |
| Weight | 16 kg |
| Status | Lifecycle not independently verified |
Goldshell E-KA1M verified two-mode specifications
This integrated kHeavyHash miner supports Kaspa (KAS). Default mode is 5.5 TH/s ±5% at 1800 W ±5%, rated 327 J/TH. Low-power mode is 3.8 TH/s ±5% at 1100 W ±5%, rated 289 J/TH.
Physical and electrical boundaries
- Miner: 443 × 360 × 135 mm; 16 kg
- Package: 560 × 485 × 280 mm; 18.5 kg
- Built-in PSU; 110–240 VAC input
- OEM power-cable label: 16 A; facility circuit and protection require installation-specific confirmation
- Ethernet and Wi-Fi; 0–35 °C tabulated ambient, with 10–35 °C recommended-use prose; RH ≤65%
Official source conflict and firmware boundary
The exact product page says ≤45 dB and 3600 rpm, while the maintained ECHO table says ≤60 dB and 6000 rpm. Planning uses the conservative 60 dB ceiling. The official E-KA1M firmware artifact is exact-model only; its solo-pool feature note is not a profitability guarantee.
Live revenue, profit, heater equivalence, launch price, and home-mining scores are unavailable without independently usable evidence.
