Goldshell CK LITE operating modes and service reference
Goldshell CK LITE evidence reference with exact Default and Low power operating modes and exact-model firmware safety boundaries.
Full Specifications
| Model | Goldshell CK LITE operating modes and service reference |
|---|---|
| Model Number | CK LITE |
| Manufacturer | Goldshell |
| Algorithm | Eaglesong |
| Cooling | Air |
| Interface | Ethernet |
| Status | OEM operating-mode reference |
Manufacturer-supported operating-mode reference

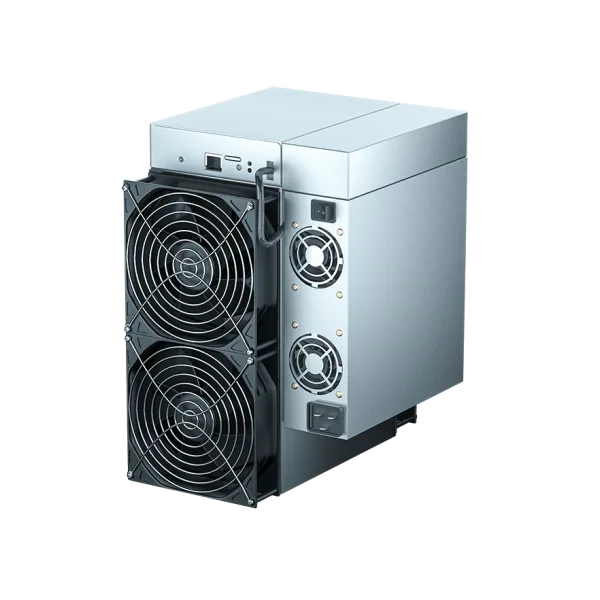

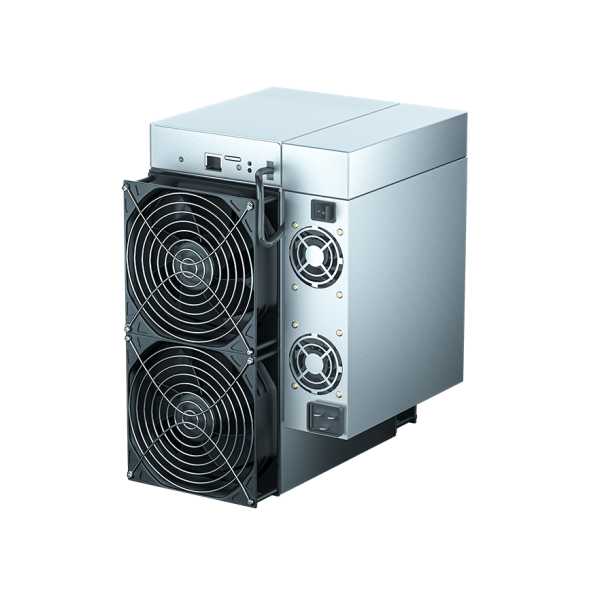

Goldshell CK LITE
The CK LITE is a Goldshell miner for CKB using the Eaglesong algorithm. This page publishes only the two operating modes stated in Goldshell’s CK LITE firmware notice.
Supported operating modes
Goldshell identifies both modes as available with firmware version 2.2.8 or later. Hashrate and power belong to the same row and must not be mixed across modes.
| Mode | Hashrate | Power | OEM efficiency label | Firmware boundary |
|---|---|---|---|---|
| Default | 6.3 T | 1,200 W | 0.19 W/G | 2.2.8+ |
| Low power | 4.9 T | 800 W | 0.16 W/G | 2.2.8+ |
Unit note: the W/G figures above reproduce Goldshell’s labels. Dividing each row’s watts by its stated terahashes per second gives approximately 190.48 J/TH for Default and 163.27 J/TH for Low power. Those J/TH figures are transparent arithmetic equivalents, not additional manufacturer specifications.
Exact-model firmware boundary
Goldshell’s official firmware repository identifies the CK LITE artifact as firmware-Goldshell-CKLITE-2.2.11.cpb. Confirm the miner identity and selected file before beginning an update. Goldshell says an upgrade is unnecessary when the miner is operating normally.
Update warning: once an upgrade starts, do not turn off power and do not operate the miner. An interrupted or mismatched update can leave the unit unavailable.
Installation evidence boundary
This reference does not assert facility voltage, frequency, phase, current, plug, cord, branch-circuit protection, power-supply topology, dimensions, weight, noise, fan count, ambient limits, component count, controller type, or parts compatibility. Verify those items from the exact unit nameplate and exact-model manufacturer documentation before installation, power work, cooling design, firmware work, or parts ordering.
Default-mode power and low-power-mode power describe operating modes; they are not facility electrical specifications.
Diagnosis and service
Record the exact model, active firmware version, selected mode, symptoms, and logs before changing configuration. Preserve original evidence before attempting an update.
Fields intentionally withheld
No acoustic, physical, environmental, facility-electrical, component, parts, commercial, profitability, residential-use, heat-reuse, tuning, or interchangeability claim is made here. No specification from a similarly named or related miner is imported.
