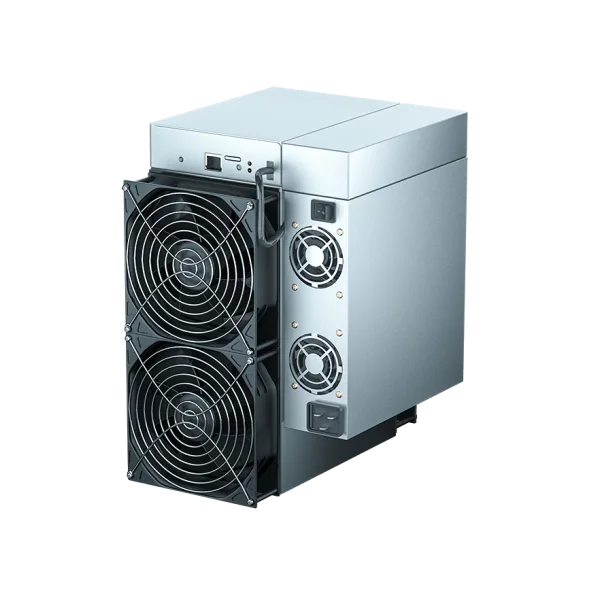

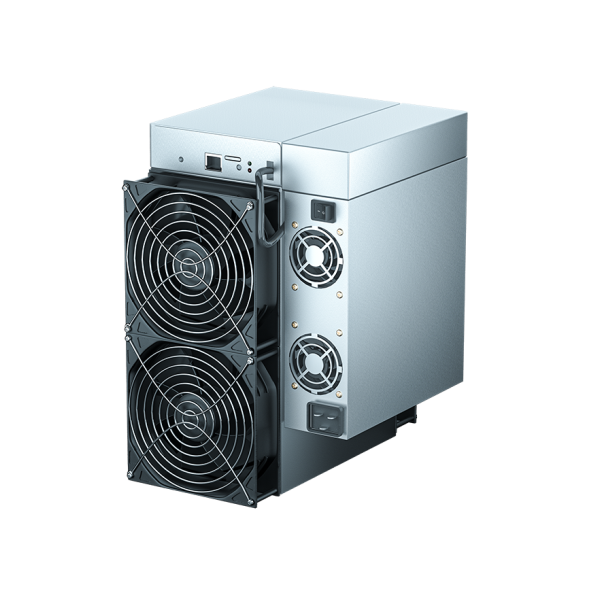

Goldshell HS LITE operating modes and service reference
Goldshell HS LITE evidence reference with four independently scoped HNS/SC operating rows and exact-model firmware boundaries.
Full Specifications
| Model | Goldshell HS LITE operating modes and service reference |
|---|---|
| Model Number | HS LITE |
| Manufacturer | Goldshell |
| Coins Mined | Handshake (HNS), Siacoin (SC) |
| Cooling | Air |
| Interface | Ethernet |
| Status | OEM four-row operating-mode reference |
Manufacturer-supported operating-mode reference
Goldshell HS LITE
Goldshell’s HS LITE evidence identifies separate HNS and SC operating lanes. This page preserves each manufacturer row independently.
Supported firmware 2.2.3+ matrix
Every hashrate, power and OEM ratio belongs to its labelled coin lane and mode. Do not move a value between rows.
| Coin lane | Mode | Hashrate | Power | OEM ratio | Firmware |
|---|---|---|---|---|---|
| HNS | Default | 1,360 GH/s | 1,250 W | 0.92 W/G | 2.2.3+ |
| HNS | Low power | 1,040 GH/s | 820 W | 0.78 W/G | 2.2.3+ |
| SC | Default | 2,900 GH/s | 700 W | 0.24 W/G | 2.2.3+ |
| SC | Low power | 2,360 GH/s | 540 W | 0.229 W/G | 2.2.3+ |
Arithmetic note: watts divided by GH/s gives approximately 0.91912, 0.78846, 0.24138 and 0.22881 J/GH in the same row order. These are transparent calculations, not replacement OEM specifications. In particular, the calculated HNS Low power result is about 0.78846 J/GH while Goldshell prints 0.78 W/G; both are retained with their provenance.
No simultaneous-operation inference: the cited table does not establish that HNS and SC rows operate simultaneously. Do not add hashrates or powers, construct an aggregate lane, or infer dual-mining behavior from this evidence.
Exact-model firmware boundary
Goldshell’s official firmware repository has the exact directory Handshake-&-Siacoin-Miner/Goldshell-HSLITE/ with HSLITE artifacts 2.2.3, 2.2.4 and 2.2.5. Select only an exact HSLITE artifact after confirming the unit identity.
Goldshell says an upgrade is unnecessary when a miner is operating normally. Once an upgrade begins, do not turn off power and do not operate the miner.
Installation and evidence boundary
The operating-mode wattages above are not facility electrical specifications. This reference does not assert voltage, frequency, phase, current, connector, cord, branch protection, power-supply topology, dimensions, weight, noise, fans, ambient limits, silicon, boards, controller, parts compatibility, release date, price, residential suitability, heat reuse, economics or tuning.
Verify installation and parts details from the exact unit nameplate and exact-model manufacturer documentation before electrical, cooling, firmware or repair work.
Diagnosis and service
Record the exact model, firmware, selected coin lane, selected mode, symptoms and logs before changing configuration.
