ICERIVER KS0 Pro specifications and electrical boundary
ICERIVER KS0 Pro exact OEM lane with separate 19–20 V DC miner input, optional adapter mains boundary, and PSU-not-included warning.
Quick answer
The ICERIVER KS0 Pro specifications and electrical boundary is a KHeavyHash miner rated about 200 GH/s at roughly 100 W.
Full Specifications
| Model | ICERIVER KS0 Pro specifications and electrical boundary |
|---|---|
| Model Number | KS0 Pro |
| Manufacturer | IceRiver |
| Algorithm | KHeavyHash |
| Hashrate | 200 GH/s |
| Power Consumption | 100 W |
| Efficiency | 0.5 J/GH |
| Voltage Range | Miner: 19-20 V DC without PSU; optional adapter input: 100-240 V AC, 50-60 Hz |
| Operating Temperature | 0 C to 35 C |
| Dimensions | 200 x 194 x 74 mm |
| Weight | 2.5 kg net |
| Status | Exact OEM product and electrical reference |
Manufacturer product and manual evidence

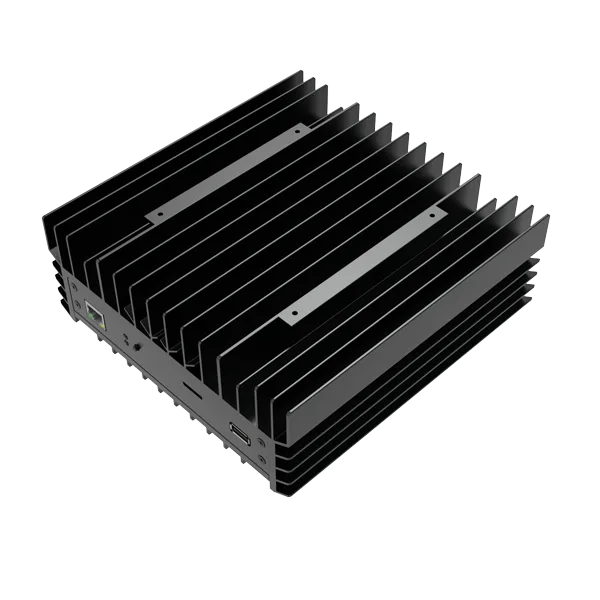

ICERIVER KS0 Pro
This canonical separates the miner’s low-voltage DC input from the optional adapter’s mains input.
Exact OEM performance lane
| Function | Hashrate | OEM power label | Derived efficiency |
|---|---|---|---|
| KAS miner | 200 GH/s ±10% | 100 W/h ±10% | 500 J/TH |
The product page literally labels wall power as 100W/h
. That source label is preserved rather than silently corrected. The 500 J/TH figure is transparent arithmetic from 100 W divided by 0.2 TH/s; it is not presented as a manufacturer-published efficiency.
Electrical boundary
- Miner input without PSU
- 19–20 V DC
- Optional 120 W adapter input
- 100–240 V AC, 50–60 Hz
- Adapter output
- 19 V DC, maximum 6.32 A
- Adapter interfaces
- C6 input; DC 5.5 × 2.5 output
The miner price does not include a PSU. The 100–240 V AC value belongs to the optional compatible adapter, not directly to the miner’s DC input. Confirm the exact unit, adapter, cord, plug, and local circuit before connection. Do not apply facility AC to the miner’s 19–20 V DC connector.
Exact product facts
- Dimensions
- 200 × 194 × 74 mm
- Net weight
- 2.5 kg
- Connection
- Ethernet
- Operating temperature
- 0–35°C, with good convection airflow
Humidity, acoustic level, facility protection, conductor sizing, miner connector polarity, component counts and internal architecture remain unresolved from the exact product evidence.
Manual, firmware and service
The manufacturer publishes a combined KS0/KS0 Pro manual. Use it only where the instruction explicitly applies to KS0 Pro. Select firmware by exact model; do not import KS0 Ultra or another adjacent model’s image. ICERIVER states that a normally operating miner does not need an update and warns against loss of power during recovery or upgrade workflows.
Official KS0/KS0 Pro manual · Official firmware selector · Official manuals and tools · Official service guidance
Repair routes and withheld claims
Request ASIC repair · Use the fault finder
No profitability, residential suitability, heat reuse, tuning, parts interchangeability, unsupported algorithm spelling, release-price, or compatibility claim is made.
