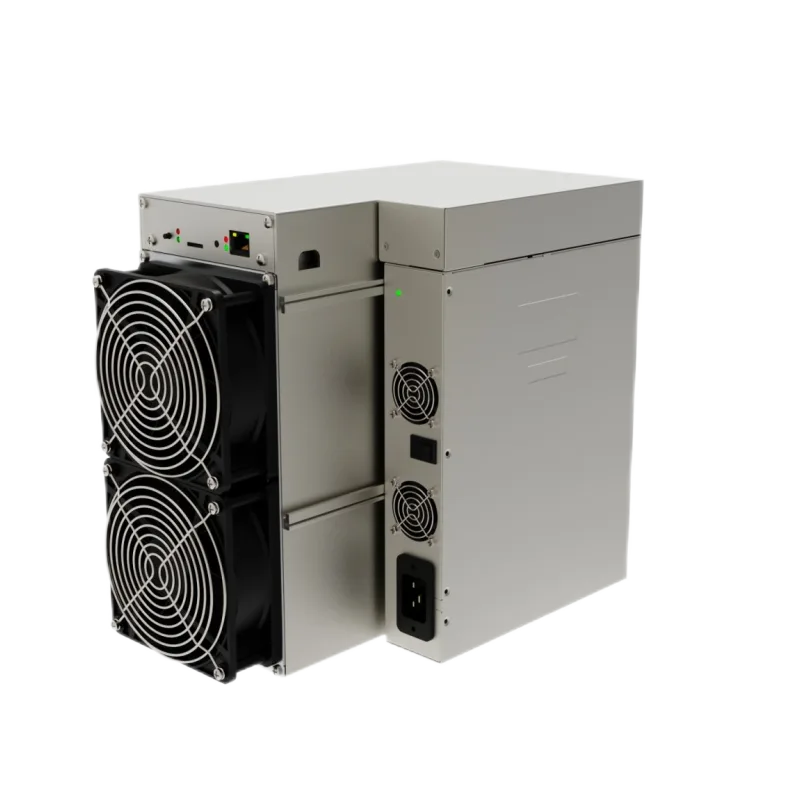

ICERIVER KS5L specifications, firmware and service reference
ICERIVER KS5L OEM reference: 12 TH/s at 3,400 W, exact 200-250 VAC boundaries, official firmware, manual and service routing.
Full Specifications
| Model | ICERIVER KS5L specifications, firmware and service reference |
|---|---|
| Model Number | KS5L |
| Manufacturer | IceRiver |
| Algorithm | KHeavyHash |
| Cooling | Air |
| Interface | Ethernet |
| Status | OEM-evidenced reference |
Evidence-controlled ICERIVER KS5L reference: this page covers the ICERIVER KAS KS5L air-cooled miner. Similar model names do not establish shared specifications, firmware, control boards, components, or installation requirements.
| KAS hashrate | Wall power | Arithmetic efficiency |
|---|---|---|
| 12 TH/s ±10% | 3,400 W ±10% | Approximately 283.33 J/TH at nominal values |
Source-label caveat: ICERIVER’s product header and summary identify 3,400 W, while one detail-table cell incorrectly prints wall power as 3400W/h. Watts are the appropriate power unit, so this page preserves 3,400 W and visibly discloses the defective label. Approximately 283.33 J/TH is transparent arithmetic from 3,400 W ÷ 12 TH/s, not a separately published manufacturer efficiency specification. It does not incorporate either ±10% tolerance.
Exact electrical and network boundary
| Voltage input | 200–250 VAC |
|---|---|
| Connection | Ethernet |
| Power cable | Not included |
The product page does not publish phase, frequency, maximum current, circuit-breaker rating, conductor size, plug, receptacle, inlet count, or connector wiring. Before energizing the miner, a qualified person must verify the exact nameplate, supply, protection, conductors, grounding, disconnect, receptacle, and cord against local requirements. Do not narrow the OEM voltage range or calculate a PSU or branch-circuit rating from nominal wall power alone.
Physical and environmental limits
| Miner dimensions | 370 × 195 × 290 mm |
|---|---|
| Packaged dimensions | 490 × 300 × 400 mm |
| Net weight | 15 kg |
| Gross weight | 16.5 kg |
| Operating temperature | 0–35°C |
| Humidity | Below 90%, per the exact-model manual |
| Acoustic guidance | Approximately 75 dB in ICERIVER’s FAQ for its large-miner class |
The acoustic value is general FAQ guidance, not a product-page measurement with a stated protocol. No storage temperature, altitude, fan count, fan speed, board count, chip count, controller identity, silicon identity, release date, or MSRP is asserted. Net and gross weights remain distinct.
Firmware and exact-model boundaries
- Use ICERIVER’s official firmware download and select the exact KS5L model and installed revision. ICERIVER says firmware updates do not increase hashrate and does not recommend updating a correctly functioning machine.
- Follow the exact KS5L operation manual and official tutorial workflow. Do not remove power during an update or reboot.
- ICERIVER states that control boards are suitable only for the corresponding model. No firmware, control-board, hashboard, PSU, fan, or parts compatibility is inferred.
- Keep water and moisture away, do not cover the machine, keep flammable or explosive material away, maintain clean airflow, and power off and disconnect before physical inspection.
Diagnosis and service
- ICERIVER FAQ and exact-model precautions
- ICERIVER fan-failure diagnosis and recovery
- ICERIVER no-power troubleshooting
- ICERIVER after-sales terms and out-of-warranty service
- Organize symptoms and logs; request local repair triage
Evidence boundary: this reference does not assert economics, residential suitability, useful-heat value, operating modifications, tuning, cross-model firmware claims, component interchangeability, replacement-part fitment, or a PSU upgrade. Confirm every part and firmware image against the exact KS5L revision. See the official ICERIVER KS5L product record. Reviewed August 28, 2026.
