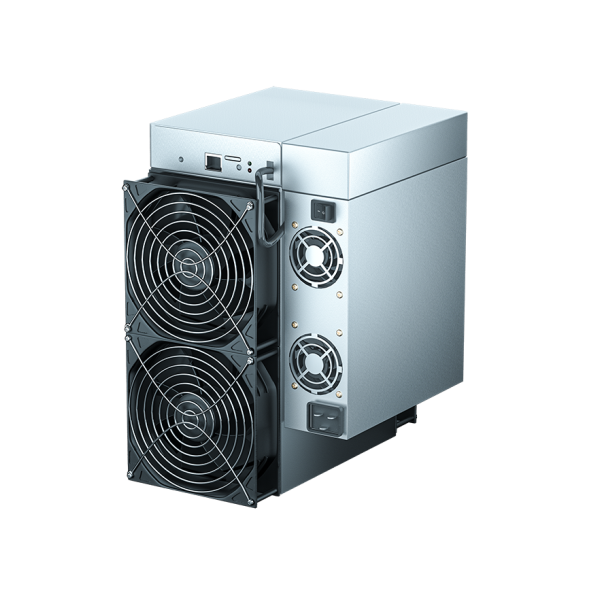

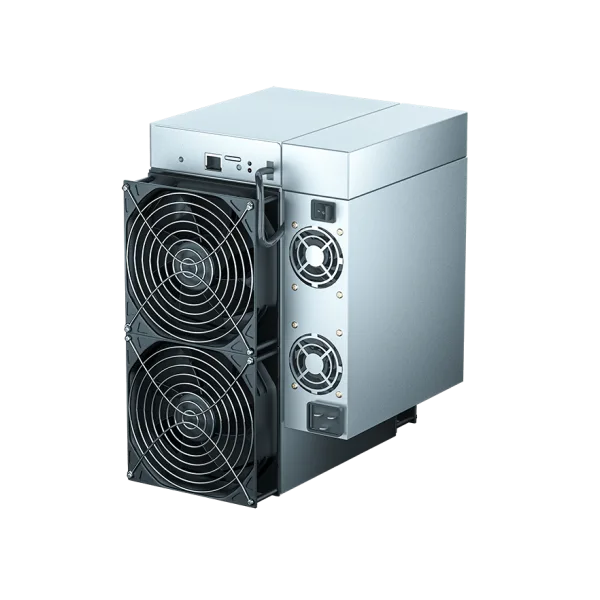

Goldshell LB LITE operating modes and service reference ASIC miner reference image
OEM LBC operating-mode reference Goldshell

Goldshell LB LITE operating modes and service reference

Goldshell LB LITE LBC reference with exact Default and Low power modes from firmware 2.2.3 and exact-model firmware safety boundaries.

Efficiency —

Full Specifications

Full technical specifications for this miner.
Model Goldshell LB LITE operating modes and service reference
Model Number LB LITE
Manufacturer Goldshell
Coins Mined LBRY (LBC)
Status OEM LBC operating-mode reference

Manufacturer-supported operating-mode reference

Goldshell LB LITE

Goldshell identifies LB LITE for LBC. This reference preserves the manufacturer’s native GH/s and W/G units and does not assert a more specific algorithm spelling.

Supported firmware 2.2.3+ modes

Hashrate, power and OEM ratio remain paired within each row.

Mode Hashrate Power OEM ratio Firmware
Default 1,620 GH/s 1,450 W 0.9 W/G 2.2.3+
Low power 1,320 GH/s 1,020 W 0.77 W/G 2.2.3+

Arithmetic note: watts divided by GH/s gives approximately 0.89506 J/GH for Default and 0.77273 J/GH for Low power. These are transparent calculations, not replacement manufacturer specifications. The OEM’s rounded W/G labels remain visible with source provenance.

Exact-model firmware boundary

The official directory is LBC-Miner/Goldshell-LBLITE/, containing firmware-Goldshell-LBLITE-2.2.3.cpb, firmware-Goldshell-LBLITE-2.2.4.cpb and firmware-Goldshell-LBLITE-2.2.5.cpb. Select only an exact LBLITE artifact after confirming unit identity.

Goldshell advises that an upgrade is unnecessary when the miner operates normally. Once an upgrade begins, do not turn off power and do not operate the miner.

Open the official LBLITE firmware directory

Evidence and installation boundary

LBC is the supported workload identity in the cited evidence. This page does not assert a more specific algorithm label.

Operating-mode wattage is not a facility electrical specification. Voltage, frequency, phase, current, connector, cord, protection, PSU topology, dimensions, weight, noise, fans, environment, chips, boards, controller and parts compatibility remain unresolved. Verify the exact nameplate and exact-model documentation before installation or service.

Diagnosis and service

Record the model, firmware, selected mode, symptoms and logs before changing configuration.

Request ASIC repair · Use the ASIC fault finder

Fields intentionally withheld

No electrical, physical, acoustic, environmental, component, parts, commercial, residential-use, heat-reuse, economics, tuning or interchangeability claim is made.
