Goldshell MINI DOGE III specifications and firmware routing
Goldshell MINI DOGE III exact OEM Scrypt lane, serial-prefix firmware routing, device-input boundaries, temperature conflict, and service routes.
Full Specifications
| Model | Goldshell MINI DOGE III specifications and firmware routing |
|---|---|
| Model Number | MINI DOGE III |
| Manufacturer | Goldshell |
| Algorithm | Scrypt |
| Noise Level | 35 dB |
| Voltage Range | 12 VDC device input |
| Status | Manufacturer-sourced specification and serial-prefix firmware reference |
Manufacturer-sourced canonical specification

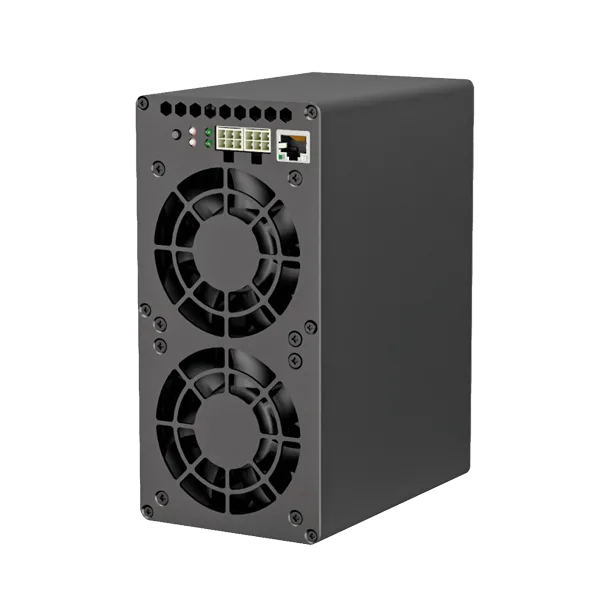

Goldshell MINI DOGE III
Goldshell publishes one current MINI DOGE III lane for Scrypt and LTC, DOGE, and BELLS. Legacy production lanes are consolidated into this exact-model reference.
OEM operating lane
| Mode | Hashrate | Power | Efficiency |
|---|---|---|---|
| Default | 700 MH/s ±5% | 400 W ±5% | 0.57 J/MH |
Hashrate and power retain separate OEM tolerances. No endpoint pairing is implied.
Serial-prefix firmware boundary
| Serial-number prefix | Exact firmware | Boundary |
|---|---|---|
DOG3 |
firmware-Goldshell-MiniDOGEⅢ-2.2.0.cpb |
Applicable only to the rostered prefix |
LP01 |
firmware-Goldshell-MiniDOGEⅢ-2.2.3.cpb |
Applicable only to the rostered prefix; benchmark self-test support |
Never cross-flash by product name alone. Read the complete serial label and choose only the artifact explicitly assigned to its prefix. Goldshell advises that an upgrade is unnecessary when operation is normal; never remove power or operate the miner during an active upgrade.
Device-input and installation boundary
- Device input
- 12 VDC
- OEM Power Cable label
- 10A
- Connection
- Dual-Mode; Wi-Fi supported
- Relative humidity
- ≤65%
- Fan specification
- 4500 rpm
The 10A value is reproduced only as the OEM “Power Cable” label. It is not miner input current, facility current, breaker sizing, or continuous load. Facility mains, PSU AC input, frequency, phase, connector, protection, conductor sizing, and plug type remain unresolved. Confirm the exact PSU and installation requirements before energizing equipment.
Temperature-source conflict
The OEM table lists 0–35°C. The same product page’s precautions specify 10–35°C. This reference uses conservative 10–35°C guidance; the lower table endpoint is disclosed but not recommended.
Physical and acoustic facts
- Miner dimensions
- 178 × 150 × 84 mm
- Miner weight
- 2.2 kg
- Package dimensions
- 300 × 220 × 142 mm
- Package weight
- 2.7 kg
- Noise
- ≤35 dB
Diagnosis and service
MINI DOGE III PLUS and all adjacent products remain separate. Their firmware, specifications, and parts are not imported.
