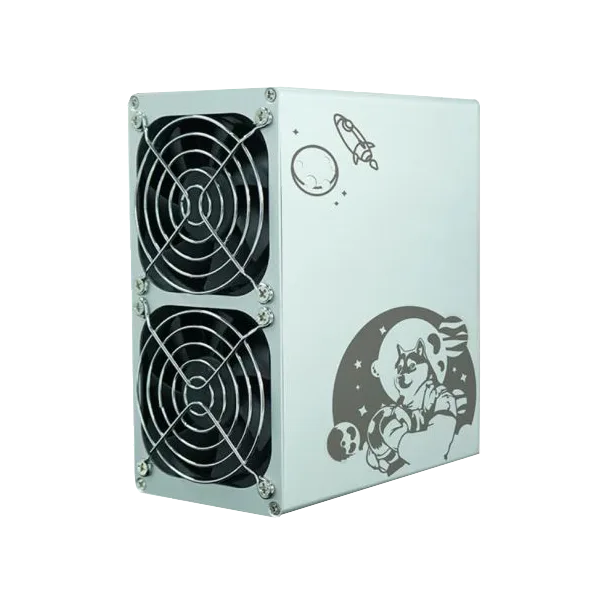

Goldshell MINI DOGE official specifications
Original base model: 185 MH/s, 233 W and 1.26 J/MH, with exact OEM physical, electrical, environmental and firmware boundaries.
Quick answer
The Goldshell MINI DOGE official specifications is a Scrypt miner rated about 185 MH/s at roughly 233 W.
Full Specifications
| Model | Goldshell MINI DOGE official specifications |
|---|---|
| Model Number | Mini-DOGE |
| Manufacturer | Goldshell |
| Algorithm | Scrypt |
| Hashrate | 185 MH/s |
| Power Consumption | 233 W |
| Efficiency | 1.26 J/MH |
| Noise Level | 35 dB |
| Voltage Range | 100-240 V |
| Operating Temperature | 0-35 C |
| Dimensions | 178 x 150 x 84 mm |
| Weight | 2 kg |
| Status | Lifecycle not independently verified |
Goldshell MINI DOGE: official base-model specifications
This record covers the original Goldshell MINI DOGE only. It does not cover MINI DOGE Pro, II, III, or III PLUS. Goldshell maintains a distinct firmware artifact for this base model, so firmware and specifications from later generations must not be substituted.
Manufacturer specification
| Field | Official value |
|---|---|
| Workload | Scrypt; LTC/DOGE |
| Hashrate | 185 MH/s |
| Power | 233 W |
| Native efficiency | 1.26 J/MH |
| Dimensions | 178 × 150 × 84 mm |
| Weight | 2 kg |
| Noise | 35 dB or less |
The OEM image publishes no hashrate or power tolerance, so none is added here.
Electrical and environmental boundary
The published input-voltage range is 100–240 V, the power-cable specification is 10 A, recommended temperature is 0–35°C, and relative humidity is 65% or less. “Dual-Mode” is the OEM interface label; the source image does not define it further. The table does not identify a PSU model, connector, frequency, phase, branch-circuit requirement, or whether every shipped bundle included the same external power equipment. Verify the unit and power-supply nameplates before installation.
Exact firmware lane
Goldshell’s official firmware catalog lists MiniDOGE 2.2.7 as its own download. Use the exact base-model artifact and do not cross-flash firmware for Pro, II, III, or III PLUS devices.
Official BOX-series specification archive · Official firmware catalog
Release date, MSRP, present availability, profitability, residential suitability, heat-reuse suitability, facility wiring, and accessory compatibility are not asserted by this record.
