Goldshell SC Lite specifications and evidence boundaries
Goldshell SC Lite manufacturer-sourced Blake2b and SC matrix, electrical label boundaries, temperature conflict, physical facts, and safe service routes.
Quick answer
The Goldshell SC Lite specifications and evidence boundaries is a Blake2b miner rated about 4.4 TH/s at roughly 950 W.
Full Specifications
| Model | Goldshell SC Lite specifications and evidence boundaries |
|---|---|
| Model Number | SC Lite |
| Manufacturer | Goldshell |
| Algorithm | Blake2b |
| Coins Mined | Siacoin (SC) |
| Hashrate | 4.4 TH/s |
| Power Consumption | 950 W |
| Efficiency | 215.91 J/TH |
| Noise Level | 55 dB |
| Voltage Range | 100-240 VAC |
| Status | Manufacturer-sourced specification with disclosed evidence boundaries |
Manufacturer-sourced specification

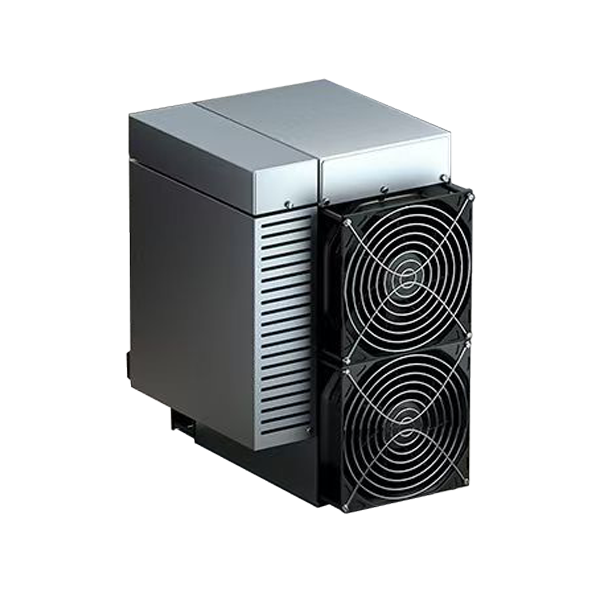

Goldshell SC Lite
Goldshell publishes one SC Lite operating lane for the Blake2b workload and SC. Tolerances and installation boundaries below follow the exact OEM labels.
Published operating matrix
| Mode | Hashrate | Power | Efficiency |
|---|---|---|---|
| Default | 4.4 TH/s ±5% | 950 W ±5% | 216 J/TH |
The efficiency is published by Goldshell. Hashrate and power retain their separate OEM tolerances; no endpoint pairing is implied.
Electrical and environment boundary
- Input voltage
- 100–240 VAC
- OEM Power Cable label
- 16A
- Network
- Ethernet only
- Relative humidity
- ≤65%
- Fan specification
- 2200 rpm
The 16A value is reproduced only as Goldshell’s “Power Cable” field. It is not presented as miner input current, circuit current, breaker sizing, or continuous facility load. Frequency, phase, connector, overcurrent protection, conductor sizing, plug type, and internal or external PSU architecture remain unresolved. Confirm these from the exact nameplate and current manufacturer documentation before installation.
Temperature-source conflict
The OEM specification table lists 0–35°C. The same product page’s usage precautions direct operators to maintain 10–35°C. This reference uses the conservative 10–35°C operating range; the lower table endpoint is disclosed but not recommended.
Physical and acoustic fields
- Miner dimensions
- 264 × 200 × 290 mm
- Miner weight
- 9.5 kg
- Package dimensions
- 370 × 260 × 430 mm
- Package weight
- 10.9 kg
- Noise
- ≤55 dB
Firmware boundary
No exact SC Lite firmware artifact is identified in the official firmware roster used for this review. Do not select firmware by family resemblance. Confirm an exact SC Lite selector result through Goldshell support before any update, and never remove power during an active firmware operation.
Diagnosis and service
Record the exact model label, active firmware, nameplate, symptoms, and logs before changing configuration. Adjacent products remain separate; their firmware, specifications, and parts are not imported.
Fields intentionally unresolved
No release-price, profitability, residential-use, heat-reuse, tuning, silicon, controller, board, parts-interchangeability, facility-frequency, phase, connector, protection, or PSU-architecture claim is made.
