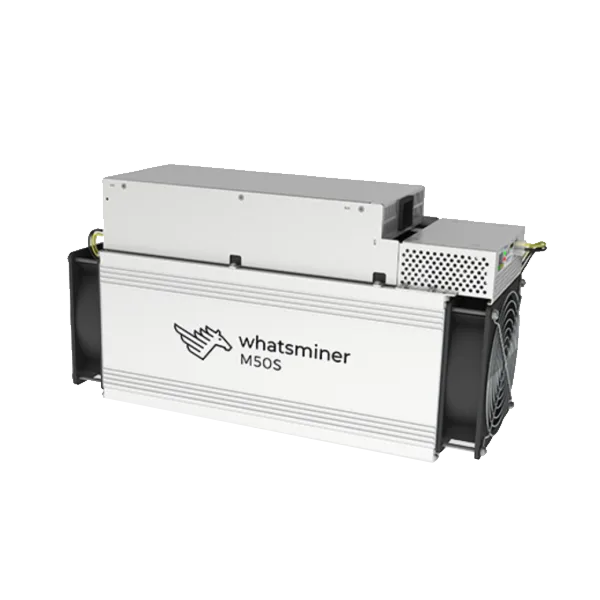

MicroBT WhatsMiner M50S+
Manufacturer-sourced M50S+ specifications: 130-142 TH/s, 24 J/T and 3,120-3,408 W, with the distinct 148 TH/s shop revision kept separate.
Quick answer
The MicroBT WhatsMiner M50S+ is a Bitcoin miner rated about 130-142 TH/s at roughly 3,120 W (about 24 J/TH).
Full Specifications
| Model | MicroBT WhatsMiner M50S+ |
|---|---|
| Model Number | WhatsMiner M50S+ |
| Manufacturer | MicroBT |
| Algorithm | SHA-256 |
| Hashrate | 130-142 TH/s |
| Power Consumption | 3,120-3,408 W |
| Cooling | air |
| Voltage Range | AC 220-240 V |
| Operating Temperature | -5 C to 35 C |
| Dimensions | 430 x 155 x 226 mm |
| Weight | 11.5 kg net; 12.6 kg gross |
| Interface | Ethernet |
| Status | Lifecycle not independently verified |
The current manufacturer manual defines the air-cooled WhatsMiner M50S+ family at 130-142 TH/s +/-5%, 24 J/T +/-5% at 25 C, and 3,120-3,408 W wall power +/-10%. These canonical manual ranges replace the former unsupported single-point combination.
The manual lists AC 220-240 V input, an IEC C19 connection rated at 16 A or higher, 350 CFM airflow, Ethernet, a -5 C to 35 C operating range, a 430 x 155 x 226 mm enclosure, 11.5 kg net weight, and 12.6 kg gross weight. Use the exact unit nameplate and local electrical code. The manual does not publish phase, noise, humidity, altitude, PSU model, chip details, control-board platform, release date, or MSRP.
Current official-shop revision lane
Reviewed August 27, 2026: the manufacturer’s active shop SKU is 148 TH/s at 23 J/T and 3,404 W. It exceeds the current manual’s nominal 142 TH/s ceiling and uses a different efficiency rating, so it remains a distinct dated shop revision rather than extending the manual to a fabricated 130-148 TH/s / 23-24 J/T family range.
The shop also displays 13.5 kg and P221B/P222B supply references, while the manual explicitly lists 11.5 kg net and 12.6 kg gross and does not name a supply model. Those shop fields remain attached to the dated SKU lane; confirm the nameplate and bill of materials.
Firmware and recovery boundary
This model and cooling class do not identify its firmware or recovery media. Record the raw reported platform, complete displayed type, installed version, cooling class, and symptom first. If any record conflicts or is unavailable, do not select a package.
- Confirm this miner’s platform before firmware or recovery.
- Only after a resolved, non-conflicting identification, review official firmware and recovery scope.
- For an unknown or conflicting identity, no boot, repeated failure, or electrical or thermal concern, request WhatsMiner diagnosis.
Primary sources: manufacturer M50S+ manual (October 2024), listed in the official manual catalog; and the current manufacturer-shop SKU. Reviewed August 27, 2026.
