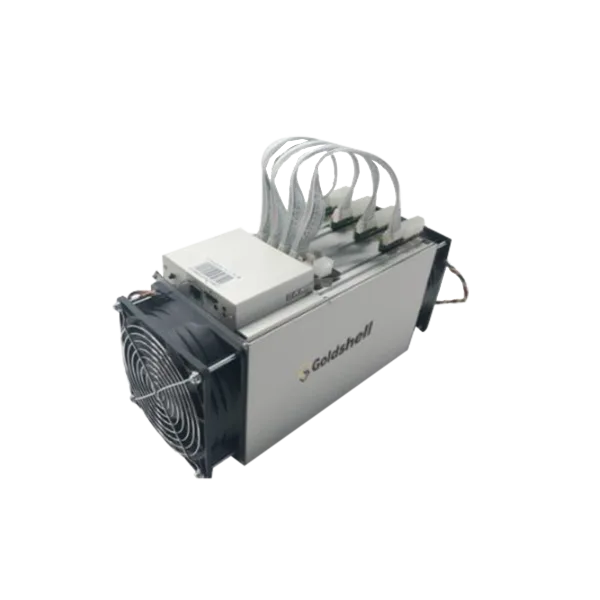

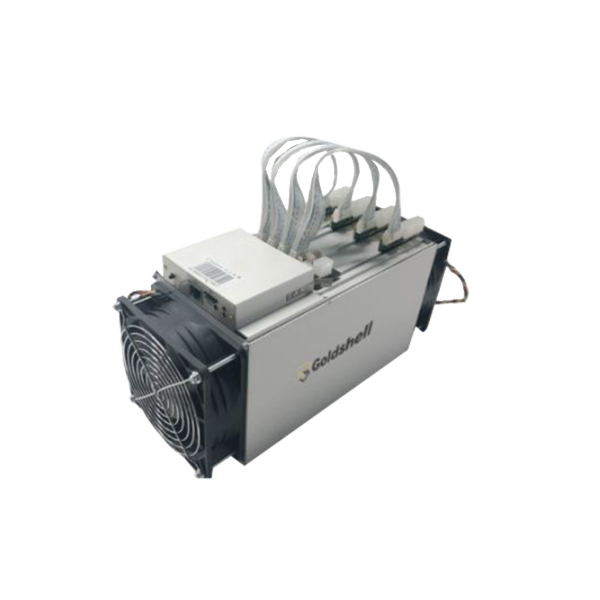

Goldshell X5 official modes and specifications
850 MH/s nominal, 1450 W, 1.7 J/MH native OEM efficiency, complete mode matrix and exact 220 V evidence boundary.
Quick answer
The Goldshell X5 official modes and specifications is a Scrypt miner rated about 850 MH/s at roughly 1,450 W.
Full Specifications
| Model | Goldshell X5 official modes and specifications |
|---|---|
| Model Number | X5 |
| Manufacturer | Goldshell |
| Algorithm | Scrypt |
| Hashrate | 850 MH/s |
| Power Consumption | 1,450 W |
| Efficiency | 1.7 J/MH |
| Noise Level | 80 dB |
| Voltage Range | 220 V OEM input; exact single value, no range stated |
| Operating Temperature | 0-35 C |
| Dimensions | 375 x 125 x 190 mm |
| Weight | 4.6 kg (PSU excluded) |
| Status | Lifecycle not independently verified |
Goldshell X5 official modes and installation boundary
The official previous-miners specification identifies X5 as a Scrypt/LTC miner with three documented modes. Values are published in their native MH/s and J/MH units.
Official operating modes
| Mode | Hashrate | Power | OEM efficiency |
|---|---|---|---|
| Hashrate | 850 MH/s | 1450 W | 1.7 J/MH |
| Balance | 720 MH/s | 990 W | 1.37 J/MH |
| Low-Power | 600 MH/s | 660 W | 1.1 J/MH |
The source publishes no tolerance percentages; none are invented here.
Physical and operating facts
Miner dimensions are 375 × 125 × 190 mm. Net weight is 4.6 kg without the PSU. Connection is Ethernet, temperature is 0–35°C, relative humidity is 95% or less, and the published noise ceiling is 80 dB or less.
Electrical and firmware boundary
The OEM image states only Input Voltage: 220 V. It does not state a range, phase, frequency, current, connector, cable rating, circuit, or PSU model. Verify the exact PSU and all facility requirements from nameplates and local code. The exact official X5 firmware artifact is version 2.1.5; do not cross-flash X5S or X6S firmware.
Official previous-miners specification · Official firmware catalog
The exact OEM table identifies LTC. DOGE, home suitability, heat reuse, profitability, release, MSRP, facility circuit, and parts fitment are not asserted.
