Exact OEM-listed manual reference Innosilicon
Scrypt

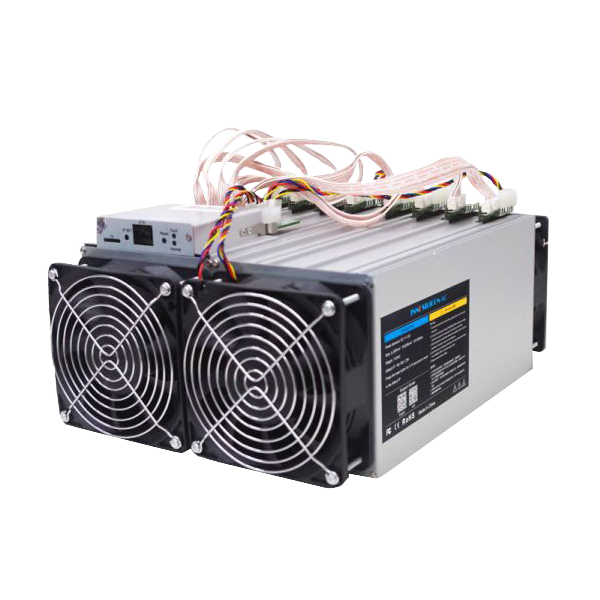

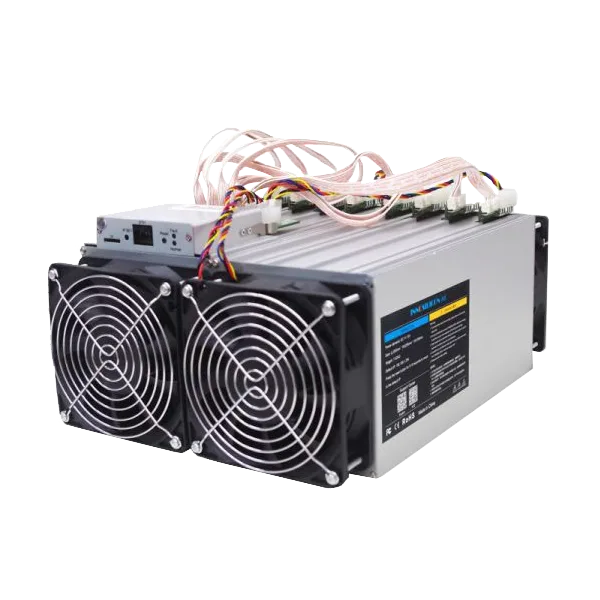

Innosilicon A6 LTCMaster
Exact OEM-listed manual reference with primary selector scope and artifact provenance disclosed.
Scrypt hashrate1.23 GH/s ±8%
OEM power1500 W ±8%
Native efficiency1219.512 J/GH
Quick answer
The Innosilicon A6 LTCMaster is a Scrypt miner rated about 1.23 GH/s at roughly 1,500 W.
Full Specifications
| Model | Innosilicon A6 LTCMaster |
|---|---|
| Manufacturer | Innosilicon |
| Algorithm | Scrypt |
| Hashrate | 1.23 GH/s |
| Power Consumption | 1,500 W |
| Efficiency | 1219.512195 J/GH |
| Status | Exact OEM-listed manual reference |
OEM-listed manual evidence
Innosilicon A6 LTCMaster
Exact manual matrix
| Hashrate | Power | Derived efficiency |
|---|---|---|
| 1.23 GH/s ±8% | 1500 W ±8% | 1.22 J/MH |
Efficiency is transparent nominal arithmetic and not a printed OEM efficiency.
Hardware boundary
- Size
- 350 × 250 × 155 mm, dual tube
- Net weight
- 8.46 kg without PSU
- Operating temperature
- 0–40°C
- Required rated PSU
- 1800 W or above; seventeen PCIe 6-pin connections
- Network
- Ethernet
Each hashboard requires two PSU cables and the controller requires one. Facility AC requirements remain PSU-specific and unresolved.
Firmware boundary
The OEM states that two A6 firmware versions cannot be upgraded into each other and separates G9/G19 boot images. Identify hardware before any write; an empty legacy anchor is not a download.
