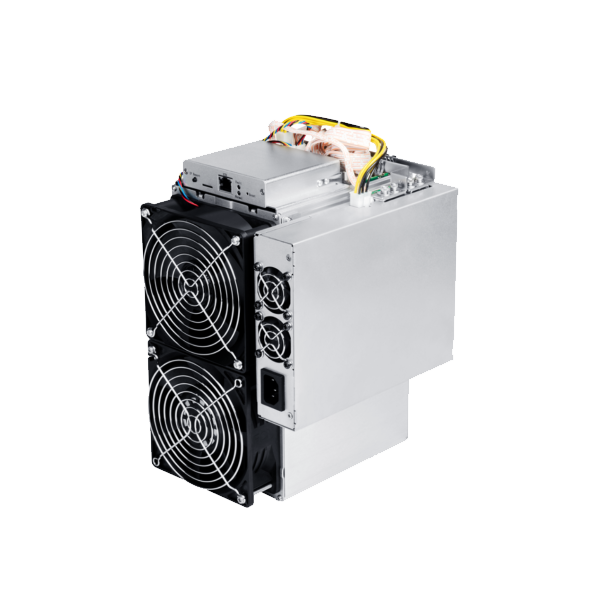

Bitmain Antminer D5 119 GH/s X11 official reference
Official D5 reference: 119 GH/s, 1,566 W and 13.16 J/GH, with attached-PSU electrical boundaries and exact support status.
Quick answer
The Bitmain Antminer D5 119 GH/s X11 official reference is a X11 miner rated about 119 GH/s at roughly 1,566 W.
Full Specifications
| Model | Bitmain Antminer D5 119 GH/s X11 official reference |
|---|---|
| Model Number | Antminer D5 |
| Manufacturer | Bitmain |
| Algorithm | X11 |
| Coins Mined | Dash (DASH) |
| Hashrate | 119 GH/s |
| Power Consumption | 1,566 W |
| Efficiency | 13.16 J/GH |
| Cooling | Air |
| Voltage Range | PSU attached / APW8; facility mains unresolved |
| Dimensions | 238 x 278.8 x 175.4 mm |
| Weight | 7.5 kg net |
| Status | OEM EOS reference |
Evidence-controlled D5 reference: Antminer D5 is an X11/DASH miner. Its native efficiency is J/GH and must not be converted into a generic cross-algorithm field.
| Hashrate | Power | Efficiency | Frequency |
|---|---|---|---|
| 119 GH/s ±5% | 1,566 W ±7% | 13.16 J/GH ±7% | 350M |
Electrical and physical boundary
Bitmain identifies D5 as a PSU-attached all-in-one miner and its official roster maps D5 to APW8. The exact D5 specification does not publish facility AC voltage, frequency, current, cord, connector, or switching sequence. Those fields remain unresolved. A qualified person must verify the exact D5/APW8 labels and installation before energizing.
| Fans | Two 12038; 6,000 RPM; 12 V / 2.4 A; 209.8 CFM |
|---|---|
| Hashboards / chips | 3 / 252 total |
| Operating temperature / humidity | 0–40°C / 5–95% RH noncondensing |
| Sound / chip temperature | 76 dB / 85°C |
| Dimensions / packed | 238 × 278.8 × 175.4 mm / 486 × 388 × 265 mm |
| Net / packed weight | 7.5 kg / 9.4 kg |
Firmware, diagnostics, and service
- Select D5 and the exact revision in Bitmain’s firmware selector.
- Use Bitmain’s exact D5 support hub.
- Use Bitmain’s diagnostic guide.
- Review Bitmain’s D5 end-of-service notice.
- Organize symptoms and logs; request repair triage; open the family hub.
No architecture, tuning, economics, home, heat-use, compatibility, or interchangeability claim is asserted. Primary source: D5 specification. Reviewed August 28, 2026.
