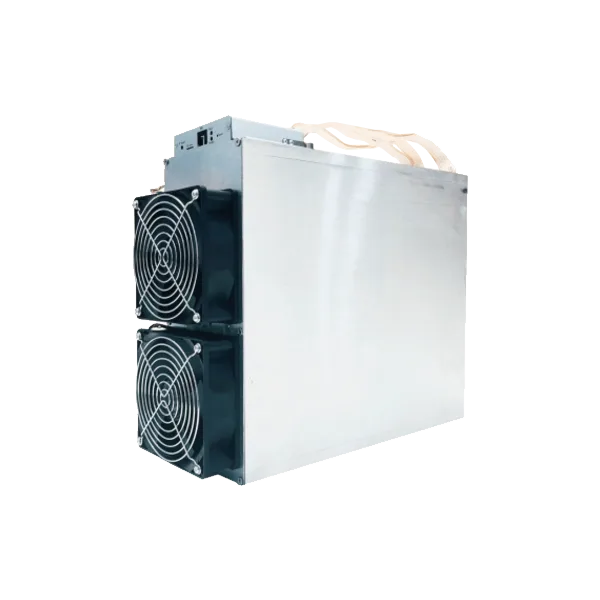

Bitmain Antminer E3 Ethash official reference
Official Antminer E3 reference: 191 MH/s, 800 W and 4.4 J/MH for Ethash, with exact external-PSU DC, firmware, thermal and EOS boundaries.
Quick answer
The Bitmain Antminer E3 Ethash official reference is a Etchash miner rated about 191 MH/s at roughly 800 W.
Full Specifications
| Model | Bitmain Antminer E3 Ethash official reference |
|---|---|
| Model Number | Antminer E3 |
| Manufacturer | Bitmain |
| Algorithm | Etchash |
| Coins Mined | Ethereum Classic (ETC) |
| Hashrate | 191 MH/s |
| Power Consumption | 800 W |
| Efficiency | 4.4 J/MH |
| Noise Level | 76 dB |
| Chip Count | 18 |
| Cooling | Air |
| Voltage Range | 11.6-13.0 V DC miner input; 7 PCIe connectors; external APW3/APW5/APW7; facility mains unresolved |
| Operating Temperature | 0 C to 40 C |
| Dimensions | 299 x 328 x 130 mm |
| Weight | 10.5 kg net |
| Status | OEM EOS reference |
Evidence-controlled Antminer E3 reference: Bitmain publishes one exact E3 specification. It is an Ethash miner associated in Bitmain’s current algorithm table with Ethereum Classic (ETC) and Callisto (CLO). Performance is stated in native MH/s and J/MH units.
| Hashrate | Frequency | Power consumption | Efficiency |
|---|---|---|---|
| 191 MH/s | 1600M | 800 W ±10% | 4.4 J/MH ±10% |
The older 180 MH/s and 190 MH/s catalog labels are not separate manufacturer-supported bins. This canonical uses Bitmain’s exact 191 MH/s specification.
Electrical boundary
The E3 requires 11.6–13.0 V DC through seven PCIe power connectors. Bitmain’s current compatibility roster supports APW3-series, APW5, and APW7 power supplies. This is the miner’s DC input boundary, not a facility-mains specification. A qualified person must verify the selected PSU’s exact revision and nameplate, facility supply, circuit protection, conductors, connectors, grounding, and disconnect before energizing it.
Hardware, cooling, and environment
| Hashboards / chips | 3 / 18 total |
|---|---|
| Fans | Two 12038 fans; front 6,000 RPM and rear 6,000 RPM; 12 V / 2.4 A; 209.8 CFM |
| Operating temperature | 0–40°C |
| Humidity | 5–95% RH, non-condensing |
| Published thermal ceiling | 65°C |
| Sound | 76 dB |
| Miner dimensions / net weight | 299 × 328 × 130 mm / 10.5 kg |
| Packaged dimensions / gross weight | 486 × 447 × 255 mm / 11 kg |
Firmware, diagnostics, and end of service
- Select E3 and the exact revision in Bitmain’s firmware selector. Do not cross-flash another model or control-board image.
- Open Bitmain’s E3 support page.
- Use Bitmain’s general ANTMINER diagnostic workflow.
- Review Bitmain’s EOS list: E3 reached end of service on June 9, 2020.
- Organize symptoms and logs; request repair triage; open the E3 service router.
No facility-mains, memory or DAG-capacity, architecture, economics, residential-use, heat-use, tuning, compatibility, or parts-interchangeability claim is asserted. Primary source: Bitmain E3 Specifications. Reviewed August 28, 2026.
