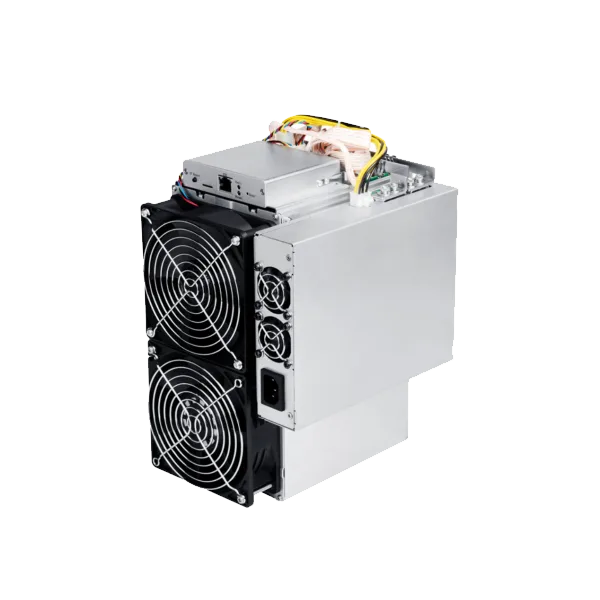

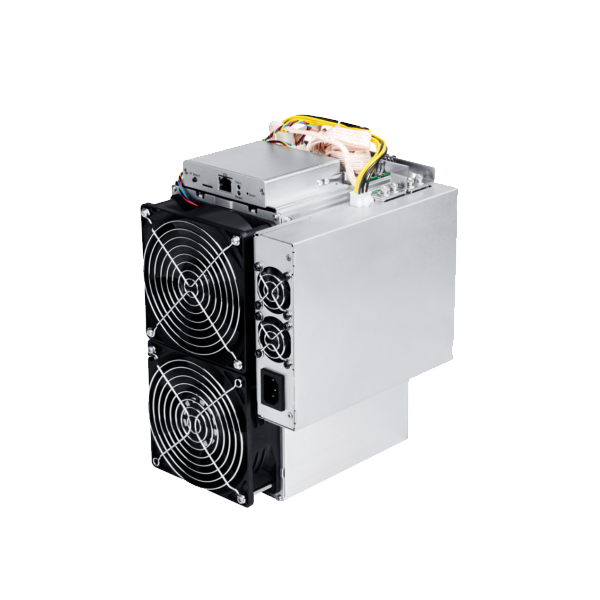

Bitmain Antminer S15 SHA-256 official reference
Official S15 reference: normal 27 TH/s, 1,539 W and 57 J/TH plus exact low-power ranges and revision-scoped APW8/service boundaries.
Quick answer
The Bitmain Antminer S15 SHA-256 official reference is a Bitcoin miner rated about 27 TH/s at roughly 1,539 W (about 57 J/TH).
Full Specifications
| Model | Bitmain Antminer S15 SHA-256 official reference |
|---|---|
| Model Number | Antminer S15 |
| Manufacturer | Bitmain |
| Algorithm | SHA-256 |
| Hashrate | 27 TH/s |
| Power Consumption | 1,539 W |
| Calculated nominal efficiency | 57 J/TH |
| Noise Level | 76 dB |
| Chip Count | 288 |
| Cooling | Air |
| Voltage Range | PSU attached / APW8; exact S15/T15 output revision 16.32-20.04 V; facility mains unresolved |
| Operating Temperature | 0 C to 40 C |
| Dimensions | 297 x 254 x 177 mm |
| Weight | 8.1 kg net |
| Status | OEM EOS reference |
Evidence-controlled Antminer S15 reference: The S15 is a SHA-256 miner with separate normal and low-power operating lanes. Bitmain publishes the low-power values as ranges; the endpoints are not asserted here as paired presets.
| Mode | Hashrate | Power | Efficiency | Frequency |
|---|---|---|---|---|
| Normal | 27 TH/s ±2% | 1,539 W ±7% | 57 J/TH | Auto |
| Low-power published range | 16 TH/s ±2% to 18 TH/s ±2% | 800 W ±7% to 900 W ±7% | 50 J/TH | Auto |
The catalog’s former 28 TH/s / 1,596 W label is not Bitmain’s exact specification. No one-to-one pairing between the low-power range endpoints is implied.
Hardware, cooling, and environment
| Hashboards / chips | 4 / 288 total |
|---|---|
| Fans | Two fans, 12 V / 2.4 A, 6,000 RPM |
| Operating temperature | 0–40°C |
| Humidity | 5–95% RH, non-condensing |
| Published chip-temperature ceiling | 80°C |
| Sound | 76 dB |
| Miner dimensions / net weight | 297 × 254 × 177 mm / 8.1 kg |
| Packaged dimensions / gross weight | 486 × 388 × 265 mm / 9.7 kg |
Attached APW8 boundary
The S15 has an attached, all-in-one APW8 power supply and two miner-side PCIe connectors. Bitmain identifies the S15/T15 APW8 by its 16.32–20.04 V output. Other APW8 revisions have different output ranges; an APW8 family name alone does not prove suitability. Confirm the exact PSU label and revision before connection.
Bitmain’s model specification does not publish an exact facility AC voltage, current, frequency, cord, or connector here. A qualified person must verify the PSU nameplate, facility supply, circuit protection, conductors, connector, grounding, and disconnect before energizing the miner.
Firmware, diagnostics, and service
- Select S15 and the exact revision in Bitmain’s firmware selector; do not cross-flash T15 or another model.
- Identify the exact APW8 revision and output range.
- Use Bitmain’s APW8 removal procedure.
- Use the S15/T15 control-board removal procedure.
- Follow Bitmain’s test-jig guidance; it requires the corresponding model master program.
- Review EOS status: S15/T15 reached EOS March 1, 2021; APW8 reached EOS March 31, 2021.
- Organize symptoms and logs; request repair triage; open the family evidence hub.
No architecture, economics, residential-use, heat-use, tuning, compatibility, or parts-interchangeability claim is asserted. Primary source: Bitmain S15 Specifications. Reviewed August 28, 2026.
