Bitmain U3S23H 1160T official reference
Exact U3S23H model 1160T-10 reference: 1,160 TH/s, 11,020 W, 9.5 J/TH and exact 24 A three-phase/LP34/OD14 boundaries.
Quick answer
The Bitmain U3S23H 1160T official reference is a Bitcoin miner rated about 1160 TH/s at roughly 11,020 W (about 9.5 J/TH).
Latest Generation Hardware
This is a newer generation of mining hardware using recent ASIC chip technology. Compare efficiency, hashrate, and power draw against older generations before choosing a deployment plan.
Lower J/TH means lower electricity cost per unit of hashrate. Compare efficiency alongside purchase cost, noise, voltage, firmware support, and current network difficulty.
Full Specifications
| Model | Bitmain U3S23H 1160T official reference |
|---|---|
| Model Number | U3S23H model 1160T-10 |
| Manufacturer | Bitmain |
| Algorithm | SHA-256 |
| Hashrate | 1160 TH/s |
| Power Consumption | 11,020 W |
| Calculated nominal efficiency | 9.5 J/TH |
| Cooling | Hydro |
| Voltage Range | 3-phase 380-415 V AC; 50-60 Hz; 24 A; LP34 |
| Dimensions | 900 x 482.6 x 130 mm |
| Weight | 42 kg net |
| Interface | RJ45 Ethernet 10/100M |
| Status | Exact OEM manual reference |

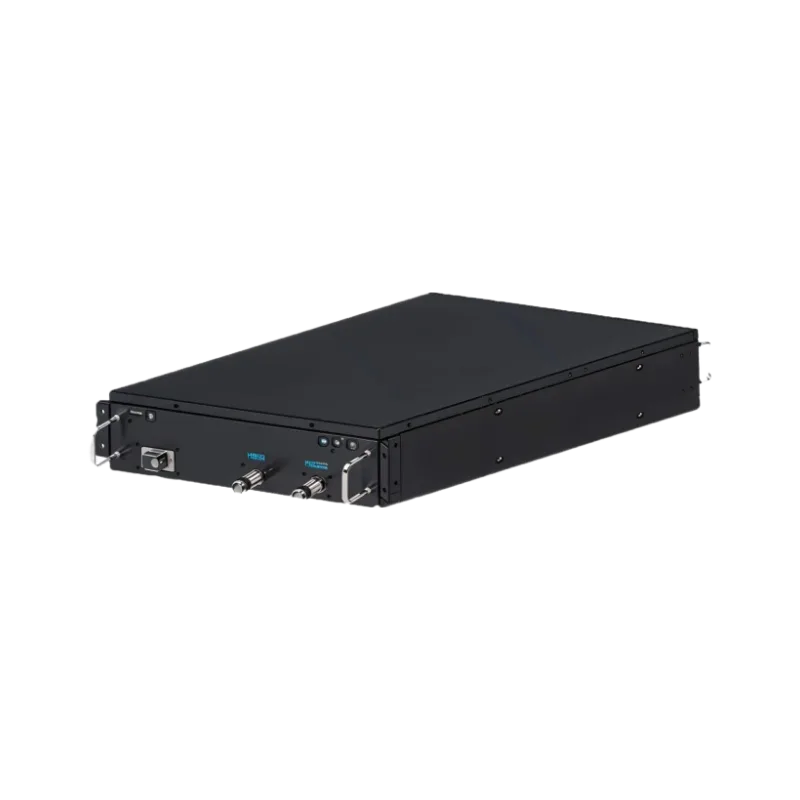

Exact U3S23H reference: the production URL titled “S23 Hyd 3U” corresponds to OEM model U3S23H, version 1160T-10, SHA256 for BTC/BCH/BSV.
| Typical hashrate | Wall power at 35°C coolant inlet | Wall efficiency |
|---|---|---|
| 1,160 TH/s | 11,020 W | 9.5 J/TH |
Actual hashrate fluctuates ±3%; actual wall power and efficiency fluctuate ±5%.
Exact facility and liquid-loop boundary
| Electrical | 3-phase, 380–415 V AC, 50–60 Hz, 24 A; LP34 power port |
|---|---|
| Coolant inlet | 20–50°C; 16.0–20.0 L/min; pressure no more than 3.5 bar |
| Coolant / pH | Antifreeze 7.0–9.0; pure water 6.5–7.5; deionized water 8.5–9.5 |
| Pipe connector | OD14 |
| Network | RJ45 Ethernet 10/100M |
| Dimensions / packed | 900 × 482.6 × 130 mm / 1,150 × 640 × 260 mm |
| Net / gross | 42.0 / 48.0 kg |
| Storage / humidity | -20–70°C / 10–90% RH noncondensing |
A qualified facility designer must verify the exact 1160T-10 label, 24 A three-phase supply, LP34 port, protection, grounding, disconnect, OD14 loop, coolant chemistry, pH, flow, pressure, maintenance, and heat rejection. S23 Hyd. 580T values do not apply.
Firmware and service
- Exact U3S23H manual v1.0.2.
- Exact-model firmware selector.
- Fault finder; repair triage; S23 evidence hub.
No compatibility, tuning, economics, residential, heat-use, or other-model claim is asserted.
