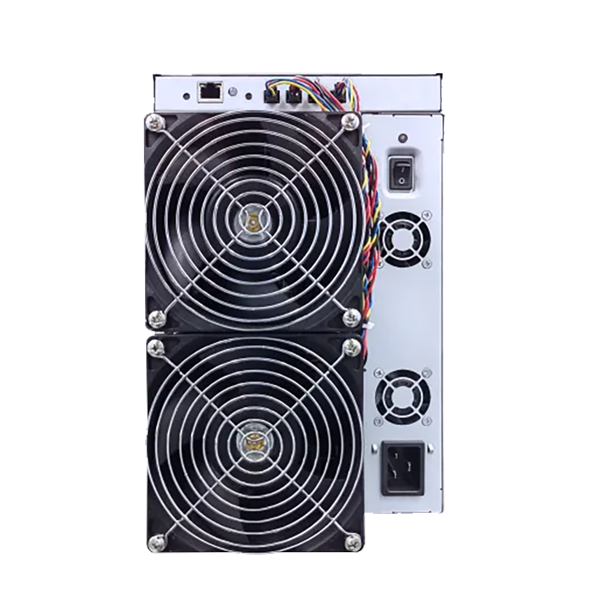

Canaan AvalonMiner A1446 130T OEM reference
Official AvalonMiner A1446-130T reference at 130 TH/s, 3,360 W, 25.8 J/TH and 200–300 V, with the conflicting 133T manufacturer record explicitly withheld.
Quick answer
The Canaan AvalonMiner A1446 130T OEM reference is a Bitcoin miner rated about 130 TH/s at roughly 3,360 W (about 25.8 J/TH).
Full Specifications
| Model | Canaan AvalonMiner A1446 130T OEM reference |
|---|---|
| Model Number | AvalonMiner A1446 |
| Manufacturer | Canaan |
| Algorithm | SHA-256 |
| Hashrate | 130 TH/s |
| Power Consumption | 3,360 W |
| Calculated nominal efficiency | 25.8462 J/TH |
| Cooling | Air |
| Voltage Range | 200-300 V AC |
| Dimensions | 271 x 192 x 292 mm |
| Weight | 13 kg net |
| Interface | RJ45 Ethernet |
| Status | OEM support reference |
Official exact reference: Canaan’s air-cooled Avalon Miner A1446-130T listing specifies 130 TH/s ±5%, 3,360 W at the wall ±5%, and 25.8 J/TH at 25°C ±5%.
The exact listing publishes 200–300 V AC input, 271 × 192 × 292 mm net dimensions, 13 kg net weight, 390 × 290 × 395 mm gross dimensions, and 14.1 kg gross weight. The PSU is included without a power cord.
133T manufacturer conflict
Canaan also hosts a page whose headline identifies A1446-133T at 3,310 W, while its specification body identifies A1466 at 133 TH/s, 3,600 W, and 27 J/TH. Those model and power conflicts prevent a safe normalized A1446-133T lane. This reference therefore withholds the 133T specifications pending a corrected manufacturer record or exact nameplate evidence.
Unresolved installation fields
The cited exact A1446-130T listing does not publish fan count, sound level, or operating-temperature limits. Do not inherit those fields from A13, A1466, A14XP, or a generic template. Confirm the complete suffix, miner and PSU nameplates, circuit, protection, conductors, connector, airflow, and local requirements before installation.
Firmware and recovery
Choose only an exact A1446 package from Canaan. FMS, Avalonbuddy, and AvalonUpgradeTool are documented workflows; they do not establish cross-model or cross-revision compatibility.
- Record the exact suffix and installed version first.
- Use Canaan’s exact-model download picker.
- For electrical, thermal, physical, hashboard, or no-boot symptoms, request hardware diagnosis.
Name boundary: A1446, A1466, A1466I, and A14XP are separate identities. No fan count, noise, temperature limit, ASIC model/count, controller, tuning, economics, home-suitability, price, or lifecycle status is asserted.
Primary sources: Canaan’s official A1446-130T listing, the withheld 133T conflict record, download guidance, and firmware-upgrade guidance. Reviewed August 27, 2026.
