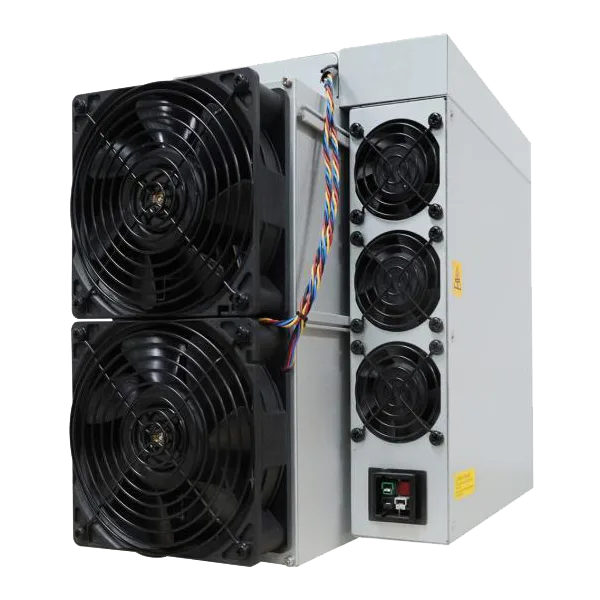

Bitmain Antminer AL1 Pro Blake3 official reference
Official Antminer AL1 Pro reference: 16.6 TH/s, 3,730 W and 225 J/TH for Blake3, with exact electrical and source-conflict boundaries.
Quick answer
The Bitmain Antminer AL1 Pro Blake3 official reference is a Blake3 miner rated about 16.6 TH/s at roughly 3,730 W.
Full Specifications
| Model | Bitmain Antminer AL1 Pro Blake3 official reference |
|---|---|
| Model Number | Antminer AL1 Pro version 10 |
| Manufacturer | Bitmain |
| Algorithm | Blake3 |
| Coins Mined | Alephium (ALPH) |
| Hashrate | 16.6 TH/s |
| Power Consumption | 3,730 W |
| Efficiency | 224.7 J/TH |
| Cooling | Air |
| Voltage Range | 220-277 V AC; 50-60 Hz; one input; 20 A |
| Dimensions | 430 x 195 x 290 mm |
| Interface | RJ45 Ethernet 10/100M |
| Status | OEM support reference |
Evidence-controlled AL1 Pro reference: Antminer AL1 Pro is the Pro submodel of model AL1, version 10, for the Blake3 algorithm and ALPH source listing. Its TH/s and J/TH values are algorithm-specific and must not be compared numerically across algorithms.
| OEM submodel | Typical hashrate | Typical wall power at 25°C | Typical wall efficiency at 25°C |
|---|---|---|---|
| Pro | 16.6 TH/s | 3,730 W | 225 J/TH |
Bitmain specifies actual hashrate fluctuation of ±3% and wall-efficiency fluctuation of ±5%. The source calls wall power typical but does not state a separate power tolerance; none is invented here.
Electrical and installation boundary
| AC input | 220–277 V AC, 50–60 Hz, 20 A |
|---|---|
| Official PSU roster | APW171215a/c or PW380a/b/c |
| Official cord roster | C20-P13; included |
| Network | RJ45 Ethernet 10/100M |
Wrong input voltage can damage the server. Have a qualified person verify the exact miner and PSU labels, one-input architecture, cord and connector, circuit capacity, protection, conductors, disconnecting means, grounding, ventilation, and applicable requirements before energizing.
Physical and environmental evidence
| Miner dimensions | 430 × 195 × 290 mm |
|---|---|
| Packaged dimensions | 570 × 316 × 430 mm |
| Gross weight | 18.2 kg |
| Sound | 75 dBA at 25°C, fan at maximum RPM |
| Operating temperature | -20–40°C, using the conservative current-web upper limit |
| Humidity | 10–90% RH, non-condensing |
| Altitude | Up to 2,000 m |
Official-source conflicts: the current web specification lists net weight 16.5 kg, operating temperature -20–40°C, and storage temperature -40–70°C. The official AL1 manual lists net weight 18.2 kg, operating temperature -20–45°C, and storage temperature -20–70°C. One normalized net weight and storage lower endpoint are withheld from metadata and structured data. For operation, this page uses the safer 40°C web ceiling. From 900 m to 2,000 m, reduce that ceiling by 1°C for every 300 m increase.
Firmware, diagnostics, and repair
- Select AL1 and the exact installed revision in Bitmain’s firmware selector.
- Use Bitmain’s AL1 support hub and exact manual route.
- Use Bitmain’s miner failure diagnostic guide.
- Organize symptoms and logs with the ASIC fault finder.
- Request ASIC repair diagnosis with exact labels, photographs, logs, symptoms, and prior firmware actions.
- Open the Antminer AL1 family hub.
Evidence boundaries: no silicon, chip/count, hashboard, controller, recovery architecture, tuning, economics, residential suitability, heat-use, parts interchangeability, or cross-model compatibility claim is asserted.
Primary sources: Bitmain’s AL1 specification, AL1 Server Installation manual, PSU and cord roster, and the exact routes above. Reviewed August 28, 2026.
