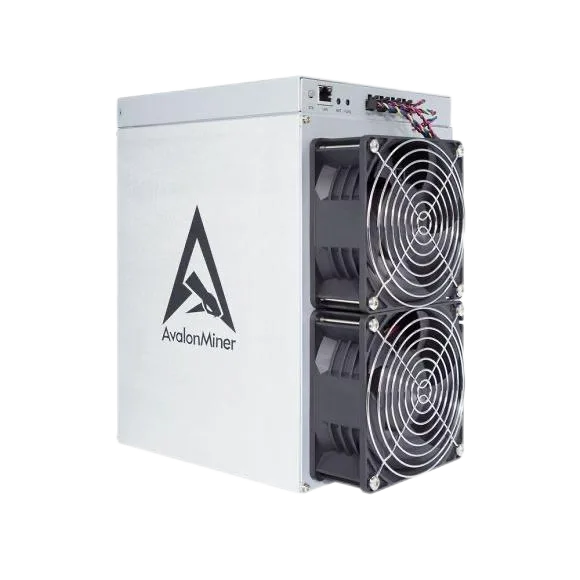

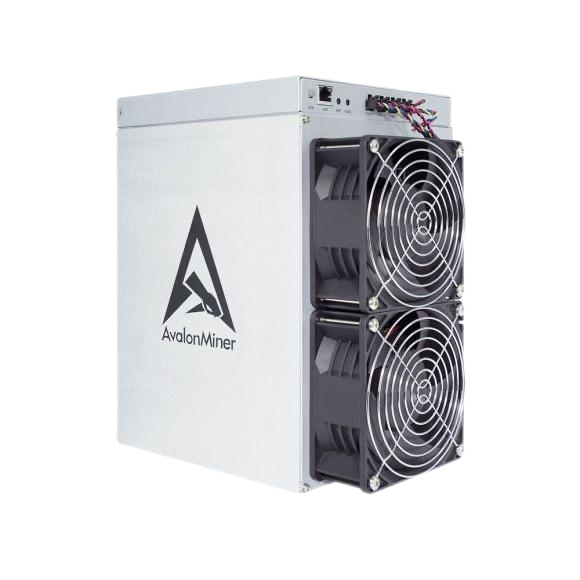

Canaan AvalonMiner A15 verified-bin OEM reference
Official AvalonMiner A15 reference covering verified 194 and 200 TH/s listings, with exact power boundaries and unresolved input voltage kept explicit.
Full Specifications
| Model | Canaan AvalonMiner A15 verified-bin OEM reference |
|---|---|
| Model Number | AvalonMiner A15 |
| Manufacturer | Canaan |
| Algorithm | SHA-256 |
| Cooling | Air |
| Voltage Range | Unresolved in cited exact-model Canaan listings; verify miner and PSU nameplates |
| Operating Temperature | -5 C to 35 C |
| Dimensions | 301 x 192 x 292 mm |
| Weight | 14.9 kg net |
| Interface | RJ45 Ethernet |
| Status | OEM support reference |
Official multi-bin reference: Canaan publishes the air-cooled Avalon Miner A15 in the exact 194T and 200T lanes below.
| OEM bin | Hashrate | Wall power | Efficiency |
|---|---|---|---|
| A15-194T | 194 TH/s, ±5% | 3,647 W, ±10% | 18.8 J/TH, ±5% |
| A15-200T | 200 TH/s, ±5% | 3,760 W, ±10% | 18.8 J/TH, ±5% |
Both exact listings specify two 12050 fans, -5–35°C operation, maximum 75 dB, 301 × 192 × 292 mm net dimensions, 14.9 kg net weight, 390 × 290 × 395 mm gross dimensions, and 15.9 kg gross weight.
Input voltage is unresolved
The cited exact Canaan listings do not publish input voltage. Do not inherit a voltage range from A13, A15Pro, A15XP, A16, a reseller, or a generic template. Confirm the complete suffix and miner/PSU nameplates before electrical planning or energizing the unit.
Firmware and recovery
Canaan directs owners to select the exact model in its download page. Its documented FMS, Avalonbuddy, and AvalonUpgradeTool workflows do not establish cross-model or cross-revision firmware compatibility.
- Record the complete A15 suffix and installed version first.
- Choose only an exact matching Canaan resource.
- For electrical, thermal, hashboard, physical, or no-boot symptoms, request hardware diagnosis.
Known boundaries: no input voltage, ASIC model/count, universal controller, tuning envelope, profitability, home-suitability, MSRP, or lifecycle status is asserted.
Primary sources: Canaan’s official A15-194T and A15-200T listings; download guidance; and firmware-upgrade guidance. Reviewed August 27, 2026.
