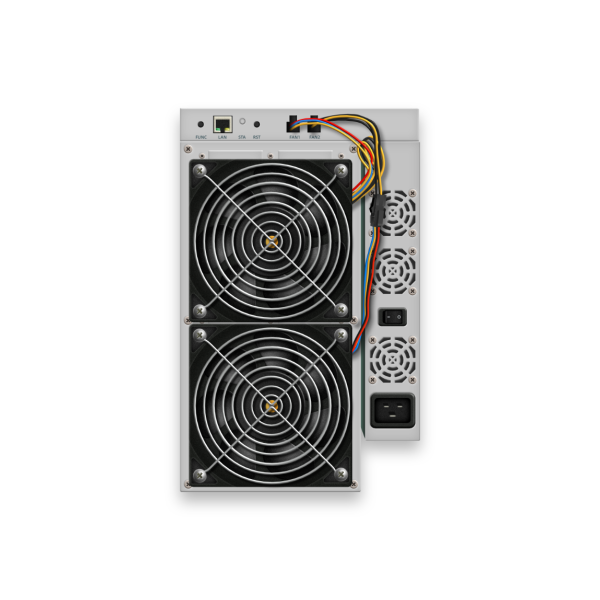

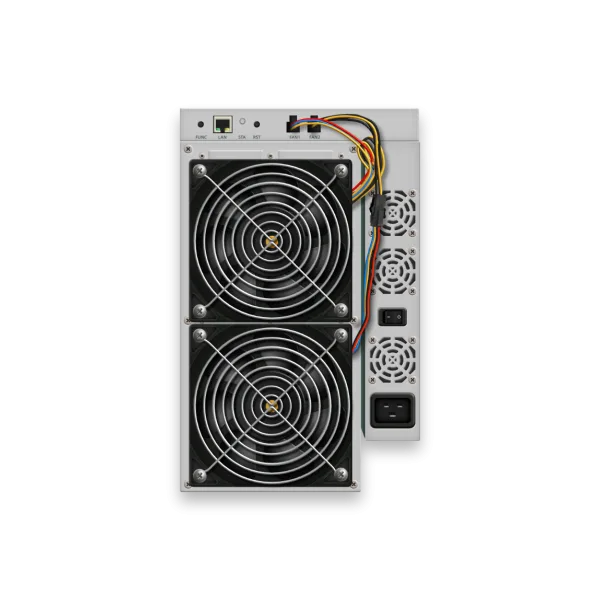

Canaan AvalonMiner A1126 Pro-S two-bin OEM reference
Official AvalonMiner A1126 Pro-S reference covering exact 64 and 68 TH/s bins, with the roster-confirmed 60T identity kept performance-unresolved.
Quick answer
The Canaan AvalonMiner A1126 Pro-S two-bin OEM reference is a Bitcoin miner rated about 64-68 TH/s at roughly 3,420 W (about 50 J/TH).
Full Specifications
| Model | Canaan AvalonMiner A1126 Pro-S two-bin OEM reference |
|---|---|
| Model Number | AvalonMiner A1126 Pro-S |
| Manufacturer | Canaan |
| Algorithm | SHA-256 |
| Hashrate | 64-68 TH/s |
| Power Consumption | 3,420 W |
| Noise Level | 75 dB |
| Cooling | Air |
| Voltage Range | 185-285 V AC |
| Operating Temperature | -5 C to 30 C |
| Dimensions | 331 x 195 x 292 mm |
| Weight | 11.2 kg net |
| Status | OEM support reference |
Official model reference: Canaan identifies this miner as the AvalonMiner A1126 Pro-S. The exact 64T and 68T records support the two performance lanes below. Canaan’s PSU roster also names a 60T version, but it does not provide a complete 60T performance matrix.
| OEM bin | Hashrate | Wall power | Efficiency | Input voltage |
|---|---|---|---|---|
| A1126 Pro-S-64T | 64 TH/s, ±3% | 3,420 W, ±5% | 54 J/TH, -5%/+8% at 25°C | 185–285 V AC |
| A1126 Pro-S-68T | 68 TH/s, ±3% | 3,420 W, ±5% | 50 J/TH, -5%/+8% at 25°C | 185–285 V AC |
Both exact records specify four 12038 fans, an operating range of -5–30°C, a maximum sound level of 75 dB, net dimensions of 331 × 195 × 292 mm, and a net weight of 11.2 kg. Packaged dimensions are 420 × 290 × 395 mm and gross weight is 12.5 kg. The listed accessory is a power supply without a power cord.
60T evidence boundary
Canaan’s official PSU roster confirms the A1126 Pro-S-60T identity. It does not establish that bin’s hashrate tolerance, wall power, efficiency, miner input range, environmental limits, or physical specifications. Those fields remain withheld rather than inherited from the 64T or 68T records.
Electrical and cooling boundary
This is high-power equipment requiring a qualified installation. Confirm the complete Pro-S suffix, miner and PSU nameplates, circuit capacity, overcurrent protection, conductors, connector, airflow, and local electrical requirements before energizing it. The published voltage range does not establish cord, plug, circuit, PSU-revision, or component interchangeability.
Firmware and service
Use only a Canaan package selected for the exact A1126 Pro-S model and installed hardware revision. A shared tool or similar A11-series name is not evidence that firmware, controllers, hashboards, or power supplies are interchangeable.
- Record the full model suffix, bin, serial label, and installed version.
- Select the exact model in Canaan’s download center.
- Follow Canaan’s download guidance and FMS, AvalonBuddy, or upgrade-tool guidance only where the selected package explicitly supports this model.
- For unresolved hardware symptoms, request model-specific diagnosis.
Known boundaries: no 60T performance matrix, ASIC model/count, universal controller, cross-model parts compatibility, tuning, economics, home-suitability, price, or lifecycle status is asserted.
Primary sources: Canaan’s official A1126 Pro-S-64T listing, A1126 Pro-S-68T listing, model roster and standalone PSU record, download guidance, and upgrade guidance. Reviewed August 27, 2026.
