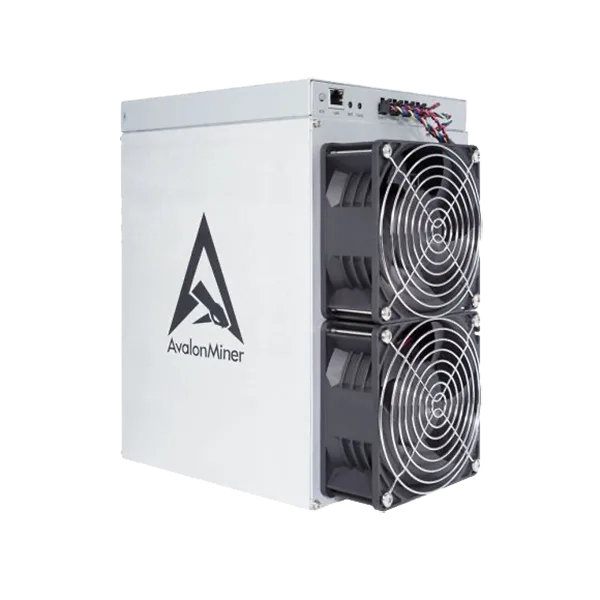

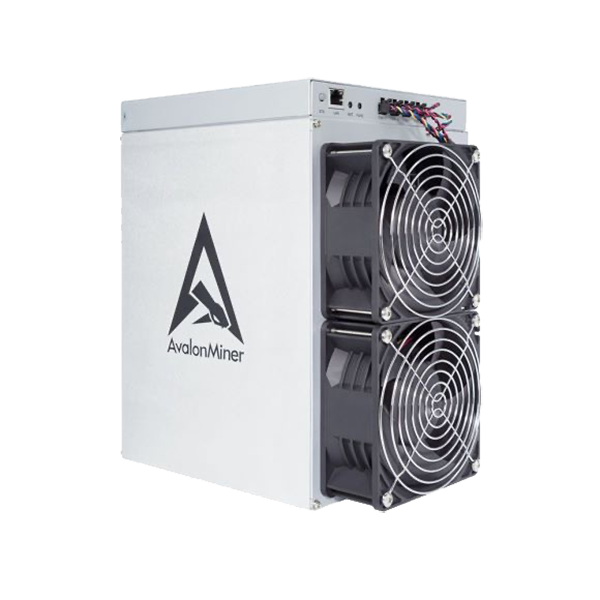

Canaan AvalonMiner A1326 two-bin OEM reference
Official AvalonMiner A1326 reference covering 103 and 115 TH/s exact bins at 3,520 W, with unresolved input voltage kept explicit.
Quick answer
The Canaan AvalonMiner A1326 two-bin OEM reference is a Bitcoin miner rated about 103-115 TH/s at roughly 3,520 W (about 30.6 J/TH).
Full Specifications
| Model | Canaan AvalonMiner A1326 two-bin OEM reference |
|---|---|
| Model Number | AvalonMiner A1326 |
| Manufacturer | Canaan |
| Algorithm | SHA-256 |
| Hashrate | 103-115 TH/s |
| Power Consumption | 3,520 W |
| Noise Level | 75 dB |
| Cooling | Air |
| Voltage Range | Unresolved in cited exact-bin Canaan listings; verify miner and PSU nameplates |
| Operating Temperature | -5 C to 35 C |
| Dimensions | 271 x 192 x 292 mm |
| Weight | 13 kg net |
| Interface | RJ45 Ethernet |
| Status | OEM support reference |
Official multi-bin reference: Canaan’s exact air-cooled AvalonMiner A1326 listings support the 103T and 115T performance lanes below.
| OEM bin | Hashrate | Wall power | Efficiency at 25°C |
|---|---|---|---|
| A1326-103T | 103 TH/s, ±5% | 3,520 W, ±10% | 34.1 J/TH, ±5% |
| A1326-115T | 115 TH/s, ±5% | 3,520 W, ±10% | 30.6 J/TH, ±5% |
Both exact listings specify two 12050 fans, -5–35°C operation, maximum 75 dB, 271 × 192 × 292 mm net dimensions, 13 kg net weight, 390 × 290 × 395 mm gross dimensions, and 14.1 kg gross weight.
Voltage remains an exact-unit gate
The cited Canaan 103T and 115T listings do not publish an input-voltage range. This page therefore does not infer one from A1246, A1346, A1366, a reseller, or a generic family template. Confirm the complete suffix and the miner and PSU nameplates before electrical planning. Do not energize the unit from this reference alone.
Firmware, management, and recovery
Canaan directs owners to choose the exact model in its firmware/document picker and follow the matching guide. Its documented upgrade routes include FMS, Avalonbuddy, and AvalonUpgradeTool; that is not evidence that a neighboring A-series image is compatible.
- Capture the complete suffix, controller information, and installed firmware first.
- Select only an exact A1326 resource from Canaan.
- Stop if the exact suffix or package match is unavailable; use hardware diagnosis for electrical, thermal, hashboard, or no-boot symptoms.
Known boundaries
No input voltage, ASIC model/count, universal controller, tuning envelope, profitability, home-suitability, MSRP, or lifecycle status is asserted beyond the cited exact listings.
Primary sources: Canaan’s official A1326-103T and A1326-115T listings; Canaan download guidance; and Canaan firmware-upgrade guidance. Reviewed August 27, 2026.
