Goldshell XT Card modes and BYTE host boundary
Required-host component with exact 100/80 GH/s high/default modes, corrected physical data, charger boundary, and no standalone economics.
Professional-Grade Miner
This industrial miner profile does not have a manufacturer-published operating-power value. Confirm the exact nameplate, input class, cooling requirements and facility design before installation.
For home miners looking for a quieter alternative, consider our Bitcoin Space Heater builds or explore open-source miners like the Bitaxe that are purpose-built for residential environments.
Full Specifications
| Model | Goldshell XT Card modes and BYTE host boundary |
|---|---|
| Model Number | XT Card (100Gh/s) |
| Manufacturer | Goldshell |
| Algorithm | Sha3x |
| Coins Mined | Unknown |
Goldshell XT Card modes and BYTE host boundary

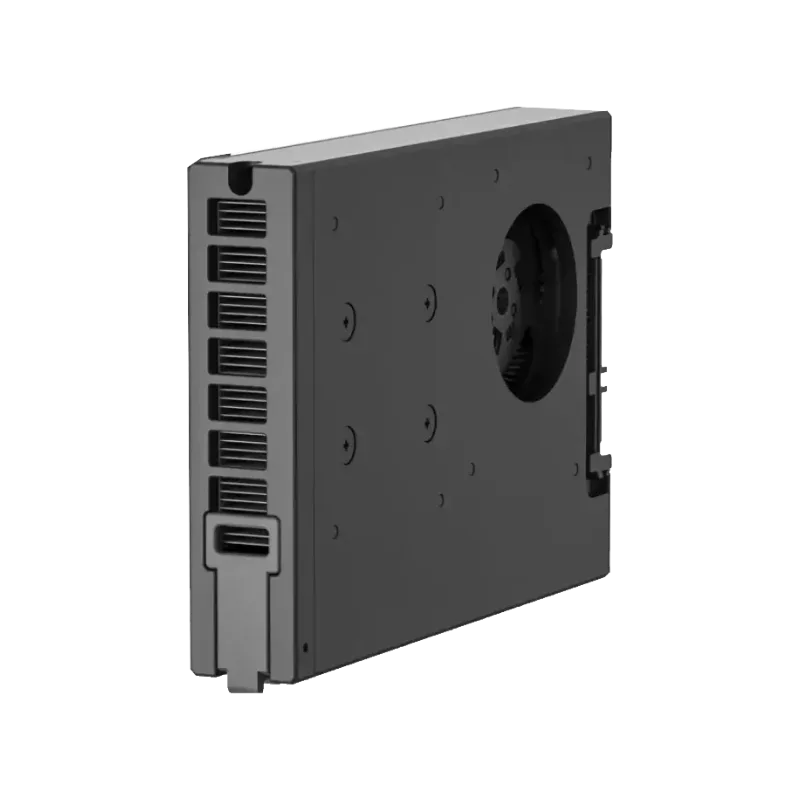

The XT Card is a SHA-3X compute card associated by Goldshell with XTM. It cannot operate separately and requires the Goldshell BYTE main unit. Card-mode power is not complete BYTE-system wall power.
Exact card modes
Goldshell publishes high-power mode at 100 GH/s ±5%, 65 W ±5%, and 0.65 J/GH. Default mode is 80 GH/s ±5%, 45 W ±5%, and 0.56 J/GH. The two modes are retained as component facts and are not flattened into a standalone miner profile.
Physical specification
The card measures 123 × 21 × 88 mm and weighs 0.325 kg. Packaged dimensions are 184 × 156 × 56 mm and packaged weight is 0.527 kg. Its fan is specified at 5,500 rpm; RPM does not establish the former Not independently specified acoustic claim. The incorrect Not independently specified weight is removed.
Host, charger, and compatibility
High-power mode requires Goldshell’s 140 W charger. Default mode may use a charger supporting 20 V / 5 A output. Goldshell documents that an “incompatible” message may require the latest BYTE firmware, but does not identify an exact public per-card artifact or hardware-revision matrix. Confirm the exact BYTE and card revision before updating.
Safe card removal
Goldshell recommends holding the BYTE main button for ten seconds or using the app to shut down before removing a card. Hot swapping is not recommended. Initial statistics may also be inaccurate immediately after a swap.
Standalone electricity, BTU, acoustics, home suitability, solo capability, and profitability are intentionally unavailable for this required-host component.
