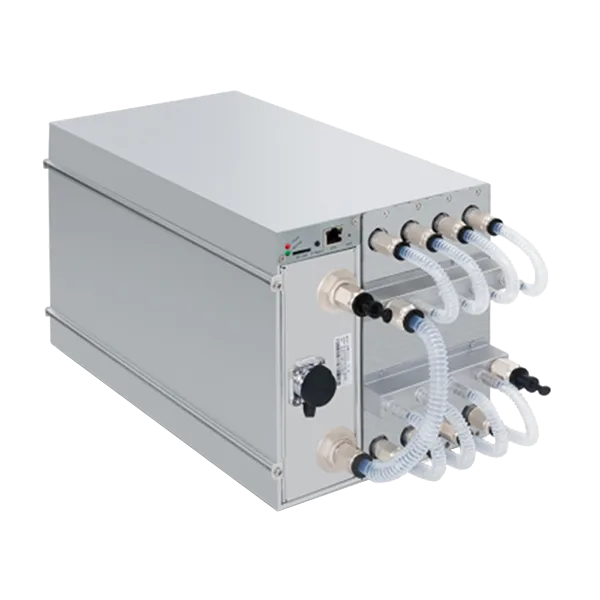

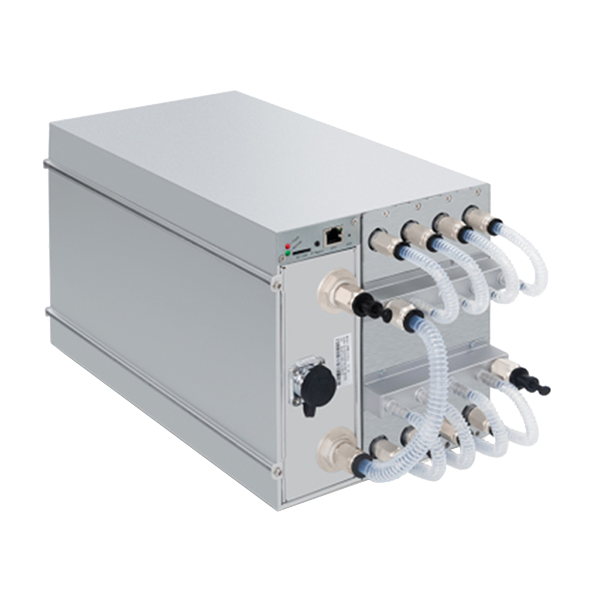

Bitmain Antminer S19 Pro+ Hyd. multi-bin reference
Official Antminer S19 Pro+ Hyd. j0-10 reference covering 170-198 TH/s, 4,675-5,445 W and exact three-phase and liquid-loop boundaries.
Quick answer
The Bitmain Antminer S19 Pro+ Hyd. multi-bin reference is a Bitcoin miner rated about 170-198 TH/s at roughly 4,675 W (about 27.5 J/TH).
Full Specifications
| Model | Bitmain Antminer S19 Pro+ Hyd. multi-bin reference |
|---|---|
| Model Number | Antminer S19 Pro+ Hyd. j0-10 |
| Manufacturer | Bitmain |
| Algorithm | SHA-256 |
| Coins Mined | Bitcoin (BTC) |
| Hashrate | 170-198 TH/s |
| Power Consumption | 4,675-5,445 W |
| Efficiency | 27.5 J/TH |
| Cooling | Hydro |
| Voltage Range | 342-418 V AC three-phase; 47-63 Hz |
| Operating Temperature | 0 C to 40 C ambient |
| Dimensions | 410 x 196 x 209 mm including PSU |
| Weight | 15.2 kg net including PSU |
| Interface | RJ45 Ethernet 10/100M |
| Status | OEM support reference |
Official hydro multi-bin reference: Bitmain documents the Antminer S19 Pro+ Hyd. as model j0-10 in four nominal bins: 170, 184, 191, and 198 TH/s. This is a liquid-cooled, three-phase machine. It is not an air-cooled S19 Pro, S19j Pro+, or S19 Pro++.
The matching wall-power ratings at 35°C inlet water are 4,675, 5,060, 5,253, and 5,445 W. Every listed bin is rated at 27.5 J/TH. Bitmain applies ±3% to rated hashrate, ±5% to wall power, and ±5% to efficiency.
Official j0-10 bin matrix
| Nominal bin | Rated wall power at 35°C inlet | Rated efficiency |
|---|---|---|
| 170 TH/s | 4,675 W | 27.5 J/TH |
| 184 TH/s | 5,060 W | 27.5 J/TH |
| 191 TH/s | 5,253 W | 27.5 J/TH |
| 198 TH/s | 5,445 W | 27.5 J/TH |
Tolerance boundary: these ratings are a manufacturer matrix, not guaranteed continuous settings or a tuning range. Confirm the complete nameplate and rated bin on the physical unit.
Three-phase electrical and liquid-loop gate
This server requires 342–418 V AC three-phase input and a qualified liquid-cooling system. The official specification calls for 8 L/min coolant flow with ±10% tolerance, no more than 3.5 bar liquid pressure, and 20–40°C inlet water. Facility design must use the unit nameplate and current manufacturer documentation.
- Do not substitute the 200–240 V requirements of an air-cooled S19-family machine.
- Do not energize the server without validated flow, pressure, inlet temperature, water quality, leak protection, grounding, overcurrent protection, and emergency isolation.
- Rated power changes by bin. Size conductors, protection, distribution, heat rejection, pumps, and exchangers for the exact unit and installation conditions.
Physical and network reference
The official server dimensions are 410 × 196 × 209 mm and net weight is 15.2 kg. Network access is Ethernet. These values describe the miner, not the required external heat-rejection, pumping, filtration, monitoring, piping, or electrical equipment.
Exact-name and parts boundary
The printed S19 Pro+ Hyd. suffix and hydro connections are part of the identity. Do not transfer a PSU, control board, hashboard, firmware package, recovery image, tune, harness, coolant procedure, or facility specification from S19 Pro Hyd., S19 XP Hyd., S19j Pro+, S19 Pro++, or an air-cooled S19 profile.
Firmware, recovery, and repair
A family name or hashrate bin does not establish the installed control board, firmware branch, lock state, or recovery medium.
- Identify the exact suffix, cooling class, control board, and installed version before selecting any file.
- Use only a manufacturer support entry whose full product identity and board scope match the unit.
- For no boot, unstable hashing, coolant alarms, leakage, corrosion, overheated connections, interrupted updates, or conflicting identity, request Antminer diagnosis before recovery.
Primary source: Bitmain S19 Pro+ Hyd. specification. Reviewed August 27, 2026.
