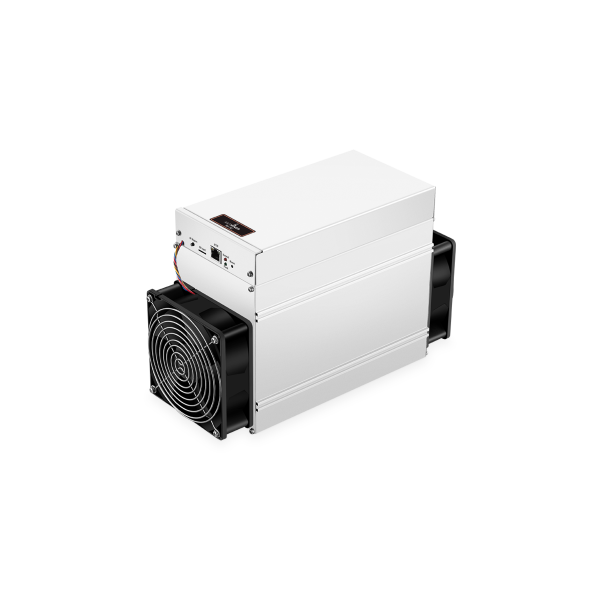

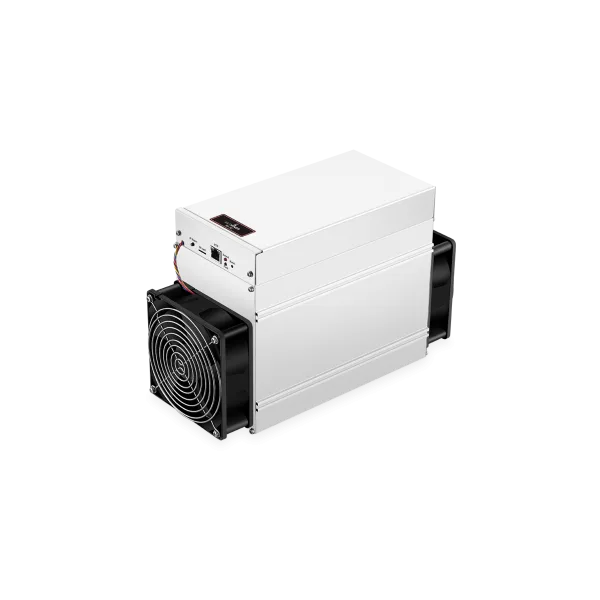

Bitmain Antminer S9 SE two-bin OEM reference
Official Antminer S9 SE reference covering 16 and 17 TH/s, exact power and operating limits, plus transparent handling of the inconsistent OEM weight table.
Quick answer
The Bitmain Antminer S9 SE two-bin OEM reference is a Bitcoin miner rated about 16-17 TH/s at roughly 1,280 W.
Full Specifications
| Model | Bitmain Antminer S9 SE two-bin OEM reference |
|---|---|
| Model Number | Antminer S9 SE |
| Manufacturer | Bitmain |
| Algorithm | SHA-256 |
| Hashrate | 16-17 TH/s |
| Power Consumption | 1,280-1,360 W |
| Noise Level | 76 dB |
| Chip Count | 180 |
| Cooling | Air |
| Voltage Range | 11.6-13 V DC miner input; facility AC depends on the documented PSU |
| Operating Temperature | 0 C to 40 C |
| Dimensions | 321.3 x 129.6 x 200 mm |
| Interface | RJ45 Ethernet |
| Status | Historical OEM support reference |
Official two-bin reference: Bitmain’s S9 SE specification covers 16 and 17 TH/s versions. Hashrate and power have model-specific tolerances; the manufacturer publishes one efficiency rating for the series.
| Nominal hashrate | Published power | Published efficiency |
|---|---|---|
| 16 TH/s ±5% | 1,280 W ±10% | 80 J/TH ±7% |
| 17 TH/s ±5% | 1,360 W ±10% | 80 J/TH ±7% |
Common manufacturer-published details are two 12 V fans rated at 2.4 A and listed at 6,000 rpm, 0–40°C operation, 5–95% non-condensing surrounding humidity, 76 dB at 25°C, ten PCIe power connectors, three hashboards, 180 chips, PCB high-temperature protection at 85°C, and dimensions of 321.3 × 129.6 × 200 mm.
Published weight inconsistency
The manufacturer’s specification table lists a net weight of 5.46 kg but a lower packing weight of 4.56 kg. Those two entries cannot both describe the normal net-versus-packed relationship. This reference therefore does not normalize or select a weight value. Verify physical weight from the exact unit and packaging when shipping, racking, or handling depends on it.
Electrical boundary
The published 11.6–13 V value is the miner’s DC input. It is not a facility AC-input range and does not mean the bare miner connects directly to 120 V or 240 V AC. The exact external PSU and its revision determine acceptable AC input, circuit loading, cords, connectors, and protection. Check the PSU’s physical label and its own documentation before energizing the system.
Firmware, recovery, and repair
“S9 SE” alone does not establish one universal control-board revision, firmware image, or recovery method. Record the complete miner label, control-board markings, installed firmware version, visible recovery interface, and symptom. Similar-looking ports or slots are not proof that an image or procedure is compatible.
- Identify the exact control-board revision first.
- Only after model and board identity both match, consult the current manufacturer entry and the board-scoped recovery boundary.
- For no boot, missing hashboards, instability, interrupted writing, overheating, or electrical or physical damage, request Antminer diagnosis.
Unknown or revision-dependent: the specification page does not establish one universal controller, recovery medium, firmware image, external PSU, facility AC requirement, or presently sold configuration.
Primary sources: Bitmain S9 SE specifications, Bitmain S9 SE/S9k setup and identity guide, and Bitmain recovery routing for S9-series hardware. Reviewed August 27, 2026.
