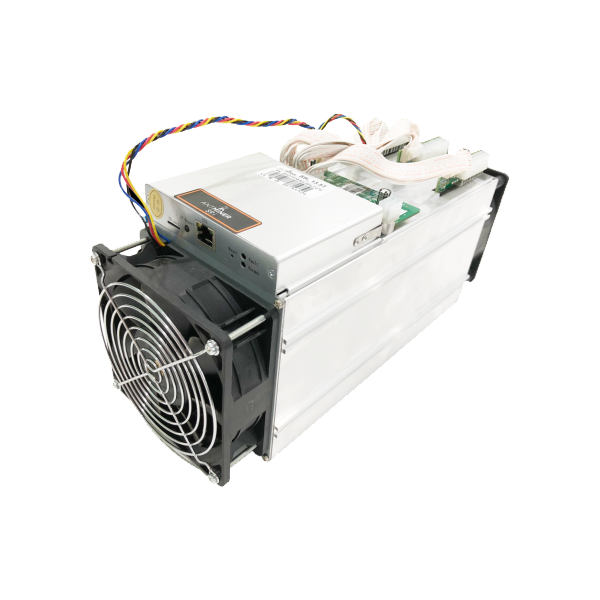

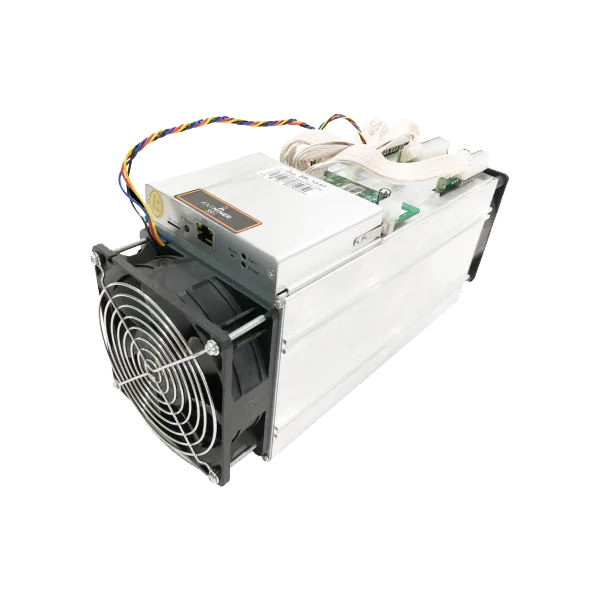

Bitmain Antminer S9k two-bin OEM reference
Official Antminer S9k reference covering 13.5 and 14 TH/s, exact power and operating limits, plus transparent handling of the inconsistent OEM weight table.
Quick answer
The Bitmain Antminer S9k two-bin OEM reference is a Bitcoin miner rated about 13.5-14 TH/s at roughly 1,148 W.
Full Specifications
| Model | Bitmain Antminer S9k two-bin OEM reference |
|---|---|
| Model Number | Antminer S9k |
| Manufacturer | Bitmain |
| Algorithm | SHA-256 |
| Hashrate | 13.5-14 TH/s |
| Power Consumption | 1,148-1,190 W |
| Noise Level | 76 dB |
| Chip Count | 180 |
| Cooling | Air |
| Voltage Range | 11.6-13 V DC miner input; facility AC depends on the documented PSU |
| Operating Temperature | 0 C to 40 C |
| Dimensions | 321.3 x 129.6 x 200 mm |
| Interface | RJ45 Ethernet |
| Status | Historical OEM support reference |
Official two-bin reference: Bitmain’s S9k specification covers 13.5 and 14 TH/s versions. Hashrate and power have model-specific tolerances; the manufacturer publishes one efficiency rating for the series.
| Nominal hashrate | Published power | Published efficiency |
|---|---|---|
| 13.5 TH/s ±5% | 1,148 W ±10% | 80 J/TH ±7% |
| 14 TH/s ±5% | 1,190 W ±10% | 80 J/TH ±7% |
Common manufacturer-published details are two 12 V fans rated at 2.4 A and listed at 6,000 rpm, 0–40°C operation, 5–95% non-condensing surrounding humidity, 76 dB at 25°C, ten PCIe power connectors, three hashboards, 180 chips, PCB high-temperature protection at 85°C, and dimensions of 321.3 × 129.6 × 200 mm.
Published weight inconsistency
The manufacturer’s specification table lists a net weight of 5.46 kg and a packing weight of 4.56 kg. Because the packed figure is lower than the net figure, the pair is internally inconsistent. This reference omits a normalized weight instead of silently choosing one. Confirm the exact unit and packed weight directly when shipping, handling, or rack loading depends on it.
Electrical boundary
The manufacturer’s 11.6–13 V value is the miner’s DC input, not a facility AC-input specification. An external PSU supplies the miner. Its exact model and revision govern permissible AC input, circuit loading, cords, connectors, and protection; verify its physical label and manufacturer documentation separately.
Firmware, recovery, and repair
The S9k name does not identify a universal control board or authorize one firmware or recovery image. Record the full unit label, control-board markings, installed firmware version, visible recovery interface, and failure symptom before writing anything. Board identity must match the manufacturer procedure explicitly.
- Identify the exact control board before firmware work.
- After both miner and board match, use the current manufacturer entry and the board-scoped recovery guide.
- For no boot, missing boards, unstable hashing, interrupted writing, overheating, or electrical or physical damage, request Antminer diagnosis.
Unknown or revision-dependent: the specification page does not establish one universal controller, recovery medium, firmware image, external PSU, facility AC requirement, or current retail configuration.
Primary sources: Bitmain S9k specifications, Bitmain S9k owner-support index, Bitmain S9 SE/S9k setup and identity guide, and Bitmain recovery routing for S9-series hardware. Reviewed August 27, 2026.
