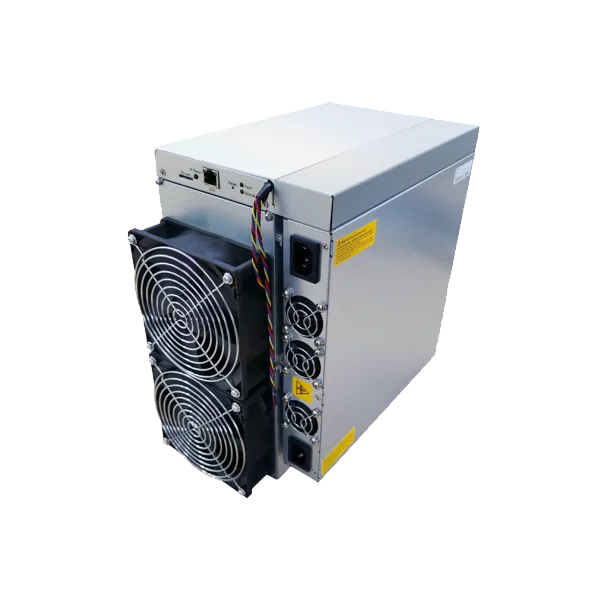

Bitmain Antminer T17e two-bin reference
Official Antminer T17e reference covering 50 and 53 TH/s lanes at 55 J/TH, with exact power, physical and operating limits.
Quick answer
The Bitmain Antminer T17e two-bin reference is a Bitcoin miner rated about 50-53 TH/s at roughly 2,750 W (about 55 J/TH).
Full Specifications
| Model | Bitmain Antminer T17e two-bin reference |
|---|---|
| Model Number | Antminer T17e |
| Manufacturer | Bitmain |
| Algorithm | SHA-256 |
| Hashrate | 50-53 TH/s |
| Power Consumption | 2,750-2,915 W |
| Noise Level | 82 dB |
| Chip Count | 234 |
| Cooling | Air |
| Voltage Range | 200-240 V AC |
| Operating Temperature | 5 C to 35 C |
| Dimensions | 340 x 178 x 304.3 mm |
| Weight | 9.91 kg net |
| Interface | RJ45 Ethernet 10/100M |
| Status | Historical OEM support reference |
Official two-bin reference: Bitmain documents the Antminer T17e in 50 and 53 TH/s factory lanes. The matching power figures are 2,750 and 2,915 W. Hashrate carries a +/-6% tolerance, wall power +/-10%, and efficiency is 55 J/TH +/-10%.
| Factory lane | Published power | Published efficiency |
|---|---|---|
| 50 TH/s +/-6% | 2,750 W +/-10% | 55 J/TH +/-10% |
| 53 TH/s +/-6% | 2,915 W +/-10% | 55 J/TH +/-10% |
The manufacturer describes frequency as automatic. The factory ratings and tolerances do not validate arbitrary third-party tuning profiles.
Physical and environmental reference
- Power supply: built-in PSU; verify the installed PSU nameplate before connection.
- Cooling: four 12 V, 2.4 A fans rated at 6,000 rpm.
- Hardware: three hashboards and 234 chips in total.
- Size and weight: 340 x 178 x 304.3 mm and 9.91 kg net.
- Noise: 82 dBA at 25 C under the manufacturer’s test condition.
- Environment: 5-35 C and 10-90% RH non-condensing.
Electrical boundary: Software power limits do not alter the PSU’s approved AC input range. Do not assume 120 V compatibility from a lower wattage target. Follow the installed PSU nameplate and applicable electrical code.
Why this page keeps the 53T URL
The current URL identifies the 53 TH/s lane, while this page documents both OEM T17e lanes. Consolidating the 50T and 53T facts avoids competing pages and gives used-equipment owners one model-level identity reference.
Firmware and repair boundary
The model label does not establish which control board, recovery medium, firmware branch, or replacement hashboard is installed in a particular unit. Confirm the hardware rather than transferring assumptions from the T17, T17+, or S17e.
- Identify the exact control board before any firmware or recovery procedure.
- Use only a manufacturer file whose stated model and board scope match.
- For power failure, missing chains, incomplete ASIC detection, temperature errors, or instability, request a T17e diagnosis.
Primary source: Bitmain T17e Specifications. Reviewed August 27, 2026.
