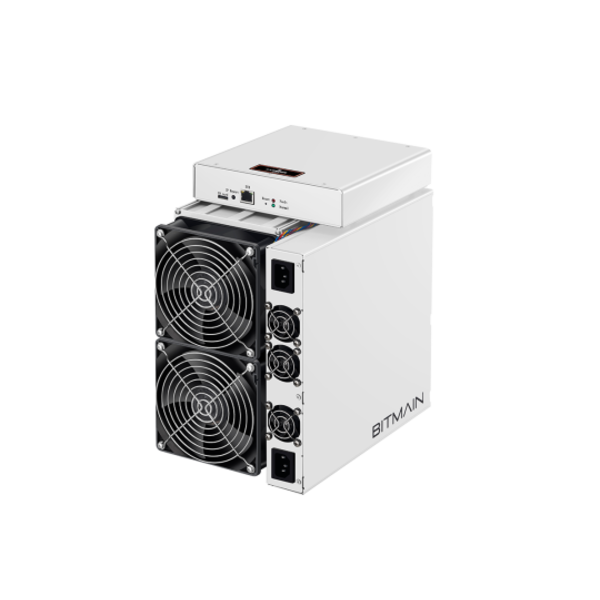

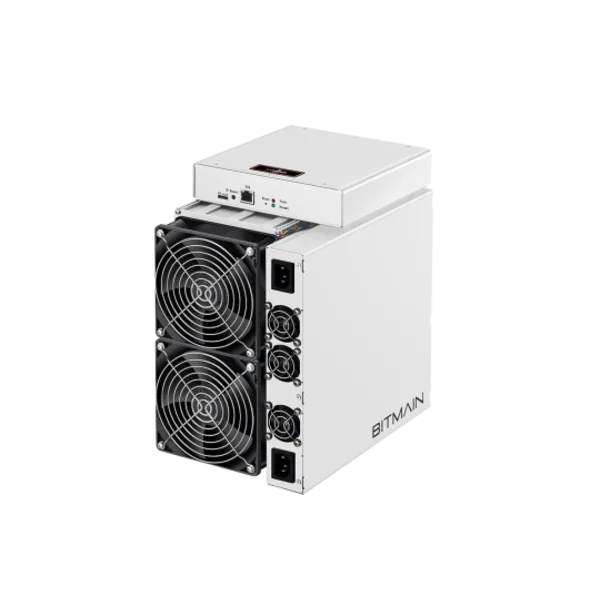

Antminer S17
Base S17 model with BM1397 chips. Commonly modified for space heater builds. Widely available at low cost.
Quick answer
The Antminer S17 is a Bitcoin miner rated about 56 TH/s at roughly 2,520 W (about 45 J/TH), built on 144× BM1397. An industrial-class unit — loud and power-hungry, best suited to a dedicated mining space, not living areas.
DCENT_OS Compatible
DCENT_OS is custom firmware developed by D-Central Technologies specifically for home miners. It transforms this miner with whisper-quiet fan profiles, 120V North American outlet support, auto-tuning for maximum efficiency, heater mode integration, and a clean web dashboard for monitoring.
Miners running DCENT_OS score higher on our Home Mining Assessment because the firmware is purpose-built to make industrial hardware livable in residential spaces.
Learn More About DCENT_OS →Professional-Grade Miner
This miner draws 2,520W and produces 75 dB of noise — it is designed for dedicated mining environments, not living spaces. Professional-grade miners deliver the highest hashrate and revenue per unit but require proper infrastructure: a 240V circuit, adequate ventilation or exhaust ducting, and a space where noise is not a concern (garage, basement, warehouse, or outdoor enclosure).
However, this miner is compatible with DCENT_OS — D-Central's custom firmware that adds whisper-quiet fan profiles and 120V North American outlet support. With DCENT_OS installed, this industrial miner can be transformed for home use.
Heater-Class Miner
At 2,520W, this miner outputs approximately 8598.2 BTU/hr of heat — equivalent to a standard electric space heater. Every watt consumed by an ASIC miner is converted to heat with 100% efficiency, making it a space heater that also mines Bitcoin.
During heating season, miner heat can offset part of the heat a room would otherwise need from another electric heater. The economics depend on your electricity rate, room heat demand, BTC price, network difficulty, and noise constraints.
Profitability Calculator
| Period | Revenue | Electricity Cost | Profit |
|---|---|---|---|
| Daily | $1.76 | $4.23 | $-2.47 |
| Weekly | $12.35 | $29.64 | $-17.29 |
| Monthly | $52.91 | $127.01 | $-74.10 |
| Yearly | $643.73 | $1,545.26 | $-901.53 |
Heating offset estimates the value of heat replacing an electric space heater during heating season (~6 months/year in Canada). Actual savings depend on your heating setup and climate.
Where to Buy the Antminer S17
D-Central Technologies
CanadaBitcoin Mining Hackers since 2016. Ships from Laval, Quebec.
Shop all Bitcoin mining productsASIC Miner Market
United StatesWide selection of new and used ASIC miners. US-based shipping.
Shop NowFull Specifications
| Model | Antminer S17 |
|---|---|
| Model Number | S17 |
| Manufacturer | Bitmain |
| Algorithm | SHA-256 |
| Coins Mined | Bitcoin (BTC) |
| Hashrate | 56 TH/s |
| Power Consumption | 2,520 W |
| Efficiency | 45 J/TH |
| Noise Level | 75 dB |
| Chip Model | BM1397 |
| Chip Count | 144 |
| Cooling | Air |
| Voltage Range | 200-240V AC |
| Operating Temperature | 5-40°C |
| Dimensions | 298x178x296 |
| Weight | 9.5 |
| Interface | Ethernet |
| BTU Output | 8598.2 BTU/hr |
| Equivalent Heater | Equal to a 2,520W space heater |
| Daily Power Cost | $4.23/day |
| Monthly Power Cost | $127.01/mo |
| Circuit Requirement | 240V circuit required |
| Release Date | 2019-04-01 |
| Status | Discontinued |
Custom Power Profiles
With custom firmware like DCENT_OS, this miner can be tuned across a wide range of power levels. Lower wattage improves efficiency and reduces electricity costs; higher wattage increases hashrate at the expense of efficiency.
| Wattage | Hashrate | Efficiency |
|---|---|---|
| 960 W | 38 TH/s | 25.3 J/TH |
| 1,210 W | 43 TH/s | 28.1 J/TH |
| 1,485 W | 48 TH/s | 30.9 J/TH |
| 1,750 W | 53 TH/s | 33 J/TH |
| 2,100 W | 58 TH/s | 36.2 J/TH |
| 2,480 W | 62 TH/s | 40 J/TH |
| 2,850 W | 67 TH/s | 42.5 J/TH |
| 3,240 W | 72 TH/s | 45 J/TH |
| 3,630 W | 77 TH/s | 47.1 J/TH |
| 3,800 W | 80 TH/s | 47.5 J/TH |
Actual performance varies by individual unit silicon quality, ambient temperature, and cooling configuration. These operating points are achievable with custom tuning firmware such as DCENT_OS; values are calculated at runtime by the autotuner, not fixed presets.
Home Mining Assessment
Base S17 model with BM1397 chips. Commonly modified for space heater builds. Widely available at low cost.
The Antminer S17 is a SHA-256 cryptocurrency miner manufactured by Bitmain. It delivers a hashrate of 56 TH/s with a power consumption of 2520W, achieving an efficiency of 45 J/TH.
Built on the BM1397 ASIC chip, uses air cooling, operates at 75 dB noise level, weighs 9.5 kg, measures 298x178x296.
With a home mining score of 8/100, this miner is best suited for dedicated mining spaces for residential use. It produces 8598.2 BTU/h of heat output, making it effective for supplemental space heating.
At 45 J/TH, the Antminer S17 sits in the legacy efficiency tier, so it is most economical run as a space heater or for hobby and learning setups rather than for pure profit.
Its waste heat (around 8598.2 BTU/h) can be ducted into a room, turning money you would otherwise spend on heating into hashrate.
D-Central’s in-house technicians repair the Antminer S17. DCENT_OS (D-Central’s GPL-3.0 open-source Antminer firmware) is in active development for the Antminer S17 — it is closed beta on the S9 today, with this platform planned for a later stage; join the waitlist to be notified when an image is ready (waitlist only, never a pre-order).
View detailed specifications, real-time profitability calculations, and comparison data for the Antminer S17 in our comprehensive ASIC miner database.
Broken miner? Get a real quote.
Tell us the symptom and get an instant repair-tier estimate ($95 / $145 / $195 CAD). Mail-in from across Canada, bench in Laval, Quebec.
Send it to D-Central — start a repair →Antminer S9 specs, heater path, and parts
Use the S9 cluster to route legacy miner owners to specs, repair guidance, APW3 power parts, hashboard bundles, and heater use cases.
Related Miners
Bitmain Antminer S7-LN
Bitmain Antminer S19 Pro Hyd (177Th)
Bitdeer SealMiner A2 Hyd
Bitdeer SealMiner A3 Air
Common Antminer S17 Error Codes
Known error codes and troubleshooting guides for the Antminer S17. Click any error for step-by-step repair instructions.
Antminer S17 – Fan Speed Error
Antminer S17, S17 Pro, S17+, S17e (and T17 chassis sharing the same...
Antminer S17 – Hashboard Not Detected
Antminer S17, S17 Pro, S17+, S17e
Antminer S17 – Temperature Too High
Antminer S17, S17 Pro, S17+, S17e
Frequently Asked Questions
What are the current mining economics for the Antminer S17?
At $0.07/kWh, the Antminer S17 currently shows an estimated daily net cost of $2.47 before pool fees and hardware cost. Lower electricity rates, network changes, BTC price changes, or useful heat recovery can change the result.
Can I mine Bitcoin at home with the Antminer S17?
The Antminer S17 has a home mining score of 8/100. With 75 dB noise and 2,520W power draw, it may require a dedicated space like a garage, basement, or outdoor enclosure. Consider noise insulation and proper ventilation.
Can the Antminer S17 heat my home?
The Antminer S17 outputs approximately 8598.2 BTU/hr of heat. For reference, a typical space heater produces 5,000-5,500 BTU/hr. All electrical energy consumed by the miner is converted to heat, making it 100% efficient as a heater. D-Central offers Bitcoin Space Heater builds designed specifically for home heating integration.
Does D-Central repair the Antminer S17?
Yes, D-Central provides professional repair services for the Antminer S17. Services include hashboard repair, control board diagnostics, fan replacement, and full refurbishment. Ship your miner to our Laval, Quebec facility for diagnosis and repair.
What power supply does the Antminer S17 need?
The Antminer S17 draws 2,520W of power. You need a power supply rated for at least 2,772W with appropriate voltage (200-240V AC). D-Central stocks compatible power supplies in our shop. Always use a quality PSU from a reputable manufacturer to protect the miner and wiring.
