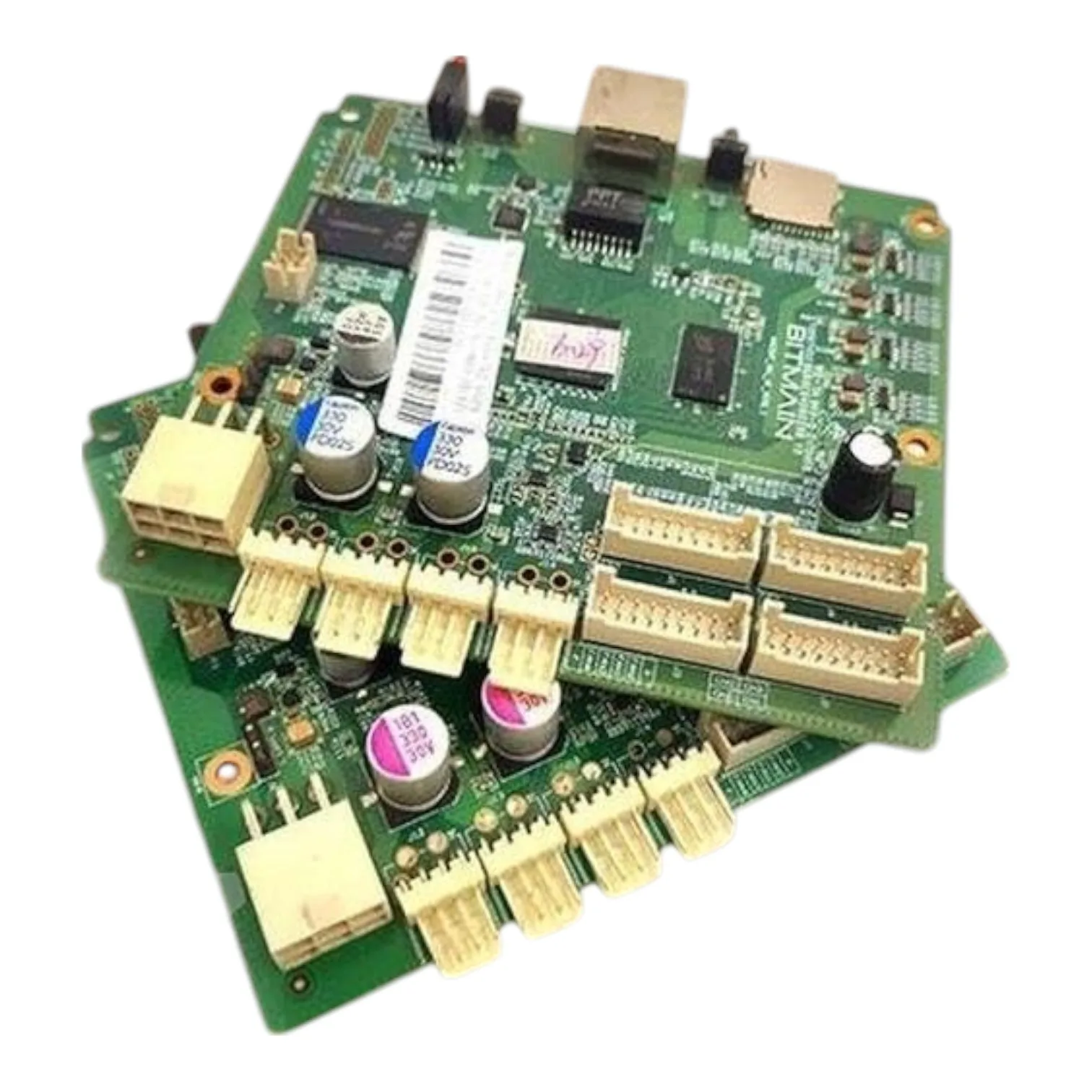

Bitmain Xilinx 7007 Zync Control Board (Ctrl_C52)

Bitmain Xilinx 7007 Zync Control Board (Ctrl_C52)

80.00$

🍁 PRICE SHOWN IN CANADIAN DOLLARS 🍁

Your Antminer T19/S19/a/j/Pro is not working because of a broken Control Board C52?

Don’t worry, we have the Replacement Control Board C52 for you. It’s a simple part to replace and will get your machine back up and running in no time. We also have a wide selection of other parts so you can find the exact one you need.

Stop wasting time and money trying to fix your broken machine. Get the Replacement Control Board C52 from us and get back to mining right away. We guarantee quick shipping and excellent customer service so you’re never left hanging.

Purchase the Replacement Control Board C52 now on our website!

Out of stock

SHARE

Description

Don’t let a broken part get in the way of your mining operations.

Acquiring new parts is often the simplest and fastest way to get your broken machine back in business. Ask us what you need to buy if you’re not sure, and we’ll guide you through our shop to find the specific part you want.

Compatible Models:

  • Antminer S17
  • Antminer S17 Pro
  • Antminer S17e
  • Antminer T17
  • Antminer T17+
  • Antminer T17e
  • Antminer S19
  • Antminer S19 Pro
  • Antminer S19a
  • Antminer S19j Pro
  • Antminer Z15
  • Antminer D7



These replacement parts are reconditioned by D-Central. These are usually broken control boards that have been repaired by D-Central and rigorously tested before being sold. Our orders are shipped based on first paid, first shipped orders for which D-Central has received full payment. We recommend that you know your local customs clearance policies and prepare for them in advance to avoid any customs clearance delays or unforeseen costs.

It may happen that the control board you receive differs from the photo. It may also happen that we have a different product but compatible with your purchase, normally we will contact you to inform you before delivery.

We offer a 30-day warranty on the purchase of all our refurbished equipment. Shipping charges, customs fees, and taxes are not included in the retail price shown above.

This is a final sale. Once the order has been placed, a request for cancellation of the order, reimbursement of part of the amount ordered, or modification of the item (s) ordered into different items or different lots will not be heard. Therefore, we advise you to make any purchase only after careful consideration.

NOTE: The price of cryptocurrency mining machines should be adjusted frequently based on variables such as the exchange rate of Bitcoin, the difficulty of Bitcoin, or the expected increase in difficulty. Refund requests based on price changes will NOT be honoured.

By making a purchase from this website you agree to the above points and our return and refund policy.

Additional information

Weight 135 g
Dimensions 15 × 15 × 8 cm

Installation Guide

Tools and Materials Needed:

  • Screwdriver
  • New Bitmain Xilinx 7007 Zync Control Board (Ctrl_C52)
  • SD card with specific firmware for your model

Step-by-Step Instructions:

  1. Preparation
    • Power Down the Miner: Ensure the miner is powered off and unplugged from any power sources.
    • Safety First: Wear an anti-static wrist strap to prevent static damage.
  2. Remove the Top Cover
    • Access the Control Board: Unscrew and remove the top cover of your miner to expose the control board.
  3. Disconnect the Old Control Board
    • Unplug Connections: Carefully disconnect the 3x 18-pin signal cables, PSU power extension cable, voltage regulating cable, and 4x fan cables from the old control board.
  4. Remove the Old Control Board
    • Remove the Face Plate: Unscrew and remove the face plate on the miner.
    • Slide Out the Board: Gently slide out the old control board.
  5. Install the New Control Board
    • Slide in the New Board: Carefully slide the new Bitmain Xilinx 7007 Zync control board (Ctrl_C52) into place.
    • Reinstall the Face Plate: Secure the face plate back onto the miner.
  6. Reconnect the Cables
    • Reconnect Cables: Reconnect the 3x 18-pin signal cables, PSU power extension cable, voltage regulating cable, and 4x fan cables to the new control board.
  7. Firmware Installation
    • Prepare Firmware: Ensure you have the specific firmware for your model on an SD card.
    • Install Firmware: Follow the SD card method to install the firmware. This typically involves:
      • Inserting the SD card with the firmware into the control board.
      • Powering on the miner and waiting for the firmware installation to complete.
      • Removing the SD card once the installation is complete and rebooting the miner.
