$41.99 CAD

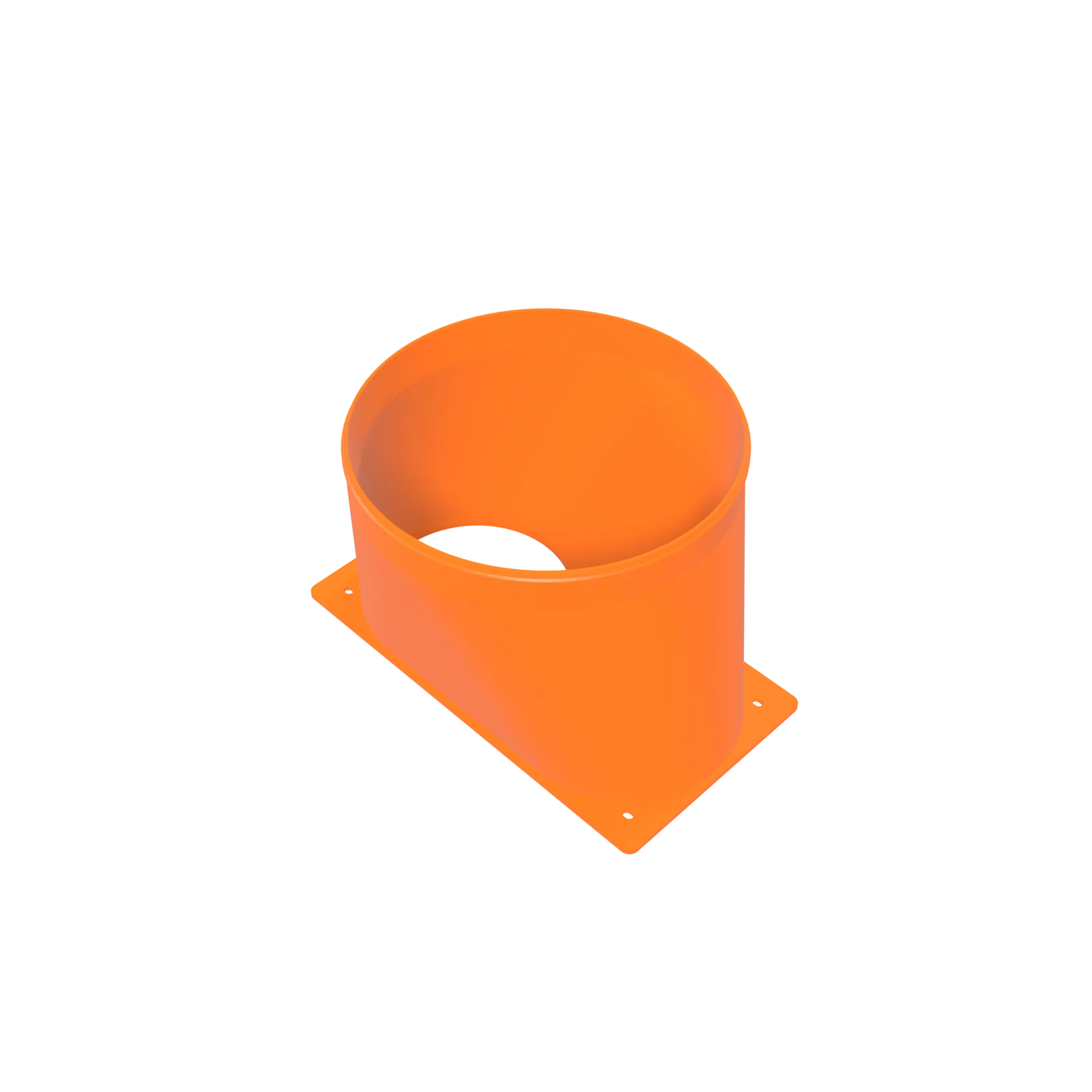

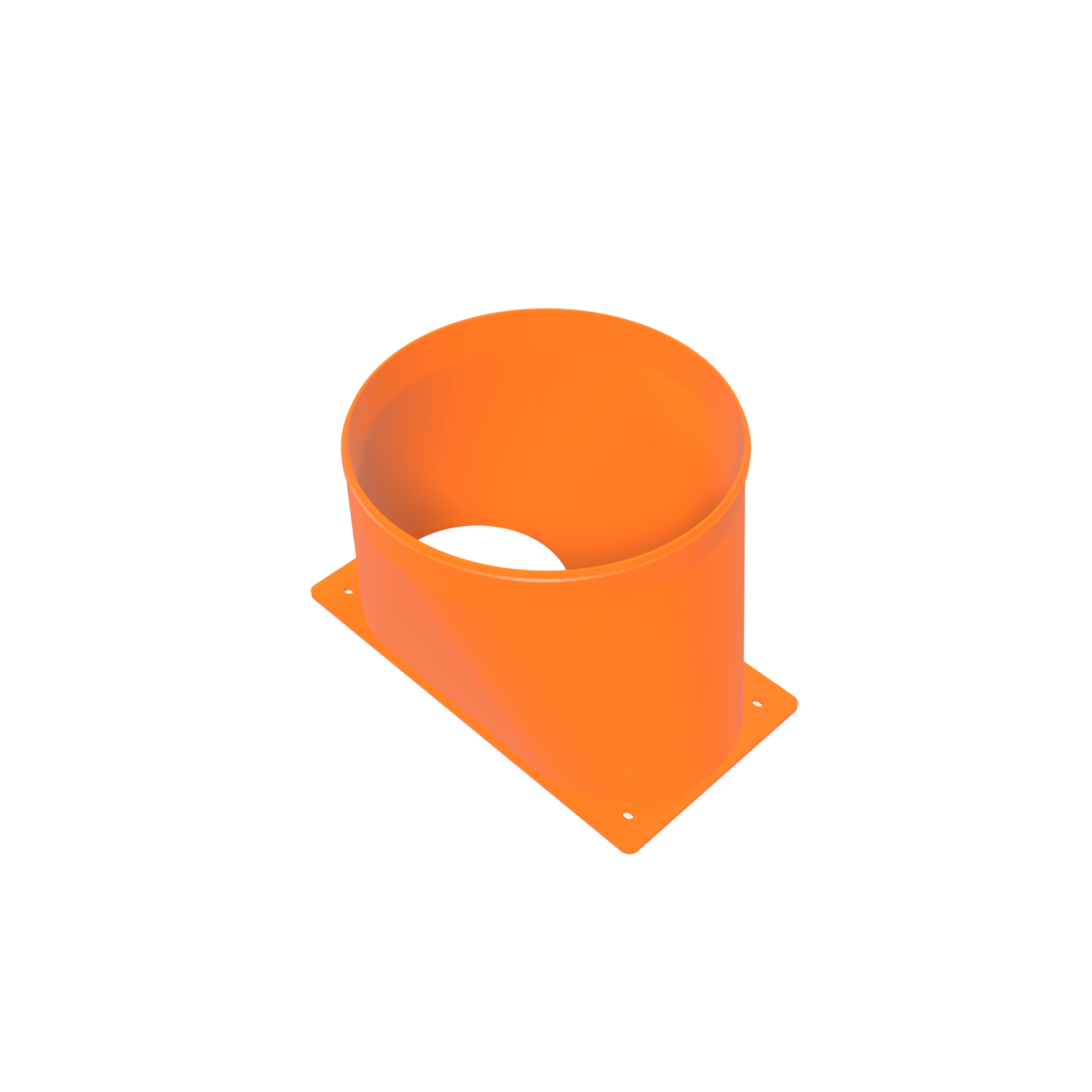

Antminer S19 shroud, 8 inch, wide base: both 120 mm exhaust fans merged into one 8-inch duct, the size to reach for on long runs, inline fans and shared plenums. 260 mm mounting plate. PETG, made to order in Montreal, Quebec.
High Demand — Pre-order Now, Ships in 5-10 Business Days
Purchase details
Save 3% when you pay in Bitcoin.
Use the S21 cluster to connect current-generation specs, buying options, chip-level parts, troubleshooting, and repair support.
An Antminer S19 shroud in 8 inch is the one to fit when the duct is going somewhere. Both 120 mm exhaust fans of an S19 or a standard S21 are hooded behind one plenum and merged into a single 8-inch collar — the size to reach for when the run is long, turns more than once, feeds an inline duct fan, or joins a shared plenum. Six inches answers a short hop to a window; over distance, the duct becomes the narrowest part of the system.
The reasoning is plain geometry. An 8-inch bore is 203.2 mm across against 152.4 mm for a 6-inch, and because area goes with the square of diameter, the larger duct carries about 1.78 times the cross-section. You buy that once, at the shroud, and it applies to every metre after it.
Short run, tight rack, or a 6-inch duct already through the wall? Take the plain wide-base 6-inch shroud. Committed to a 250 mm flange across a fleet? The standard-base 8-inch shroud is the same outlet on the narrower plate. Mixing sizes down the run is fine — that is what the 8-inch to 6-inch reducer is for.
Pressure loss in a duct run does not accumulate politely; it stacks up over length and jumps at every turn, and all of it is paid for by the same two fans that are also trying to cool hashboards. Widening the bore at the source means the whole run works at the larger section, and the one size change happens inside a shaped plenum where the fan columns merge rather than at a coupler where two ducts meet end to end.
| Fits | Antminer S19 series and standard S21, and any dual 120 mm exhaust face on the same pattern |
|---|---|
| Intake | Dual 120 mm fan capture — 120.0 mm fan pitch, 105 mm screw square, 6.40 × 5.00 mm mounting slots |
| Outlet | 8-inch flexible duct (203.2 mm nominal), slips over the collar |
| Footprint (mm) | 260 × 203.2 × 165 |
| Material | PETG |
| Colour | Black or orange PETG |
| Construction | Single-piece print, no seams or fasteners in the airway |
| Design files | Open source under CC BY-SA 4.0 — 3D models download center |
| Download | STL, licence and installation guide (ZIP) — listed on the model card |
| Fulfilment | Made to order in Montreal, Quebec |
| SKU | ALT-D120-8 |
D-Central Technologies draws these parts around the machines it works on, then hands the drawings over. The 8-inch wide-base shroud goes out with the rest of the line under CC BY-SA 4.0 at the 3D models download center, free for anyone to print, modify or sell, sizes and mount styles included. The card for this model links the ZIP: STL, licence, installation and safety guide.
What you get here instead is the finished part: black or orange PETG, built to order in Montreal, Quebec, in the size you need rather than the size that happened to be on a shelf. The D-Central fund page is how people who print their own send something back.
On a long run a long-radius turn is the cheapest corner you can buy. See the whole D-Central shroud and ducting system.
When the run is long, when it turns more than once, when an inline duct fan is going in it, or when several machines share a plenum. Those are the cases where the duct costs more than the shroud does. For one machine venting through a nearby window, the plain wide-base 6-inch shroud is easier to route.
It benefits from it more than the 6-inch does. An 8-inch flexible duct is heavier and much stiffer to bend, so it pulls harder on the mount. The 260 mm plate bears that across the exhaust face. The standard-base 8-inch shroud is the 250 mm alternative when machine spacing decides it for you.
Yes, and it is a common compromise when the wall penetration already exists. Put the 8-inch to 6-inch reducer at the wall rather than at the shroud, so the run does most of its distance at the larger section. Reducing early gives away most of what the bigger collar bought you.
The collar is drawn to the 8-inch nominal size that inline duct fans, couplers and rigid fittings in that class are built around, so a length of 8-inch flex between shroud and fan is the usual connection. The 8-inch duct coupler joins runs, off the same tolerance standard.
Every chassis with two 120 mm exhaust fans 120.0 mm apart on a 105 mm screw square: the S19 family, the standard S21, the T21. The S21 Pro and S21 XP moved to 140 mm fans and take the S21 Pro dual 140 mm shroud instead.
| Weight | 406 g |
|---|---|
| Dimensions | 26 × 20.32 × 16.5 cm |
| Colour | Black, Orange |
