$63.99 CAD

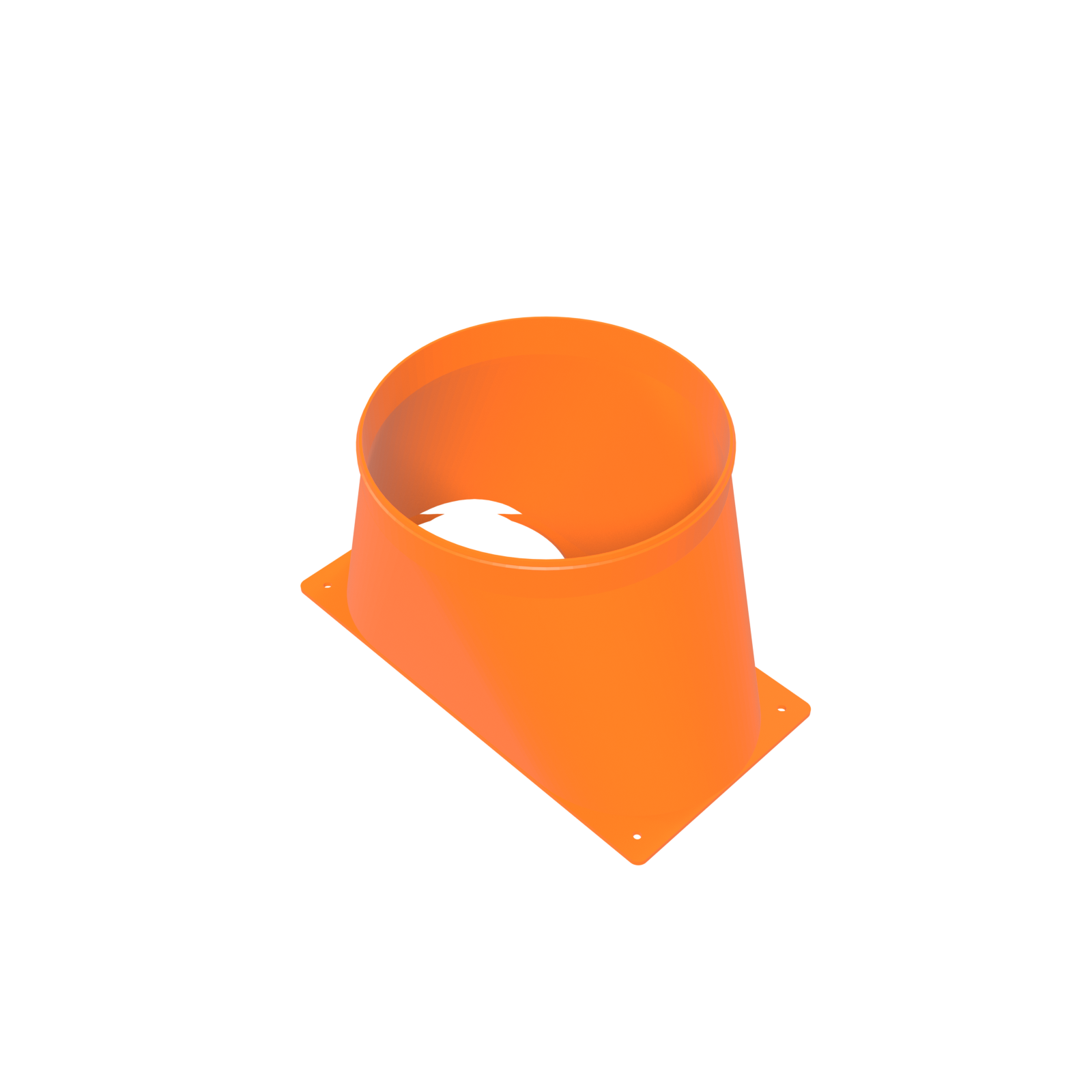

Antminer S21 Pro shroud with a 200 mm metric collar: both 140 mm exhaust fans into one true 200 mm duct, drawn to the S21 Pro / S21+ fan face. Single-piece PETG, made to order in Montreal, Quebec.
High Demand — Pre-order Now, Ships in 5-10 Business Days
Purchase details
Save 3% when you pay in Bitcoin.
Use the S21 cluster to connect current-generation specs, buying options, chip-level parts, troubleshooting, and repair support.
An Antminer S21 Pro shroud has to start from the right fan face. The S21 Pro and S21+ generation exhausts through two 140 mm fans, not the 120 mm pair every S19-era shroud is drawn around. This one is cut to the S21 Pro face: two 140 mm fans on a 140.0 mm pitch, 134.0 mm bore each with a 3.0 mm sealing land, in a 292 mm wide body.
The outlet is 200 mm metric, the largest collar in the range and the size the larger metric inline duct fans and Avalon Q ducting are built in. It is not 8 inches, which is 203.2 mm. Both fan columns merge inside one piece of PETG and converge into a collar with a 200.0 mm crest and a 198.0 mm sealing land.
Antminer S21 Pro and S21+ class machines with two 140 mm exhaust fans, exhausting into 200 mm metric duct. What actually decides fitment is the fan face, so any machine built with the same dual-140 layout at a 140.0 mm pitch mounts on this flange.
Same chassis, different duct size: the S21 Pro dual 140 mm to 6-inch shroud and the S21 Pro dual 140 mm to 8-inch shroud cover the imperial sizes. If your machine is a 120 mm fan S19 or standard S21, none of the S21 Pro parts fit it, and the equivalent is the dual 120 mm to 200 mm metric shroud.
Universal parts are a compromise at the flange, and the flange is where a shroud either seals or leaks. Drawing the body to one chassis lets the outline stay at 292 mm instead of spreading to 300 mm, and it lets the screw bosses sit where a driver can actually reach them: the tightest fan screw on this part has 10.77 mm of clearance around the head, the most generous in the metric line. That is the difference between fitting the shroud and fighting it in a rack bay.
Downstream of the flange the two 140 mm columns merge before the round transition starts, then the section opens gradually into the 200 mm collar so the flow stays attached rather than separating at a step.
| Fits | Antminer S21 Pro, S21+ and S21 XP — two 140 mm exhaust fans |
|---|---|
| Intake | Two 140 mm fans at 140.0 mm pitch; 134.0 mm bore per fan, 3.0 mm sealing land per side |
| Outlet | 200 mm metric duct, flex-over collar; crest 200.0 mm, sealing land 198.0 mm |
| Footprint (mm) | 292.0 × 200.0 × 175.0 |
| Mounting | 5.0 mm holes on 5.424 mm slots; 9 mm or larger washer |
| Material | PETG |
| Colour | Black or orange PETG |
| Construction | Single piece, no seams or glued joints |
| Design files | D-Central in-house design, open source under CC BY-SA 4.0 |
| Download | S21 Pro 200 mm shroud bundle (ZIP) — STL, CC BY-SA 4.0 licence, installation and safety guide |
| SKU | ADP-S21PRO-D140-200 |
| Fulfilment | Made to order in Montreal, Quebec |
The chassis-specific parts are given away on the same terms as everything else. D-Central Technologies drew this shroud around the S21 Pro exhaust face, measured it on the 292 mm body, and released it under CC BY-SA 4.0 at the 3D models download center: download, modify, print, sell. It has its own card at the S21 Pro 200 mm entry, and the file is the S21 Pro 200 mm shroud bundle — STL, CC BY-SA 4.0 licence, installation and safety guide. A newer machine should not mean waiting for someone to decide the file is worth publishing.
This listing is the finished shroud, produced to order in PETG in Montreal, Quebec, black or orange, and shipped from Canada. The file was free on release day and stays free; what a purchase, or a contribution through the D-Central fund page, pays for is being early on the chassis after this one.
See the rest of the D-Central shroud and ducting system.
No, and it is worth being blunt about it. The S19 and standard S21 exhaust through two 120 mm fans on a 120.0 mm pitch; the S21 Pro and S21+ use two 140 mm fans on a 140.0 mm pitch with a 134.0 mm bore. Different screw positions, different bore, different body width. Buy by fan size, not by the S21 in the name.
The fan face decides. If the machine exhausts through two 140 mm fans on a 140.0 mm pitch, this flange lands on it. If you would rather have a body drawn to the generic dual-140 pattern with a slightly wider outline, that is the universal dual 140 mm to 200 mm shroud.
Buy whichever your hose and inline fan are. They are 3.2 mm apart and not interchangeable: 8 inches is 203.2 mm, this collar is 200.0 mm. If your parts are metric, this is the one; if they are imperial, take the 8-inch S21 Pro shroud and keep the whole run in one system.
It works for a short, straight run, and plenty of people do it. The trade is pressure: a narrower pipe costs more per metre and gets noisier as velocity rises, so the longer and more bent the run, the more you gain by going wide. On a high-power dual-140 machine, 200 mm or 160 mm is the comfortable range.
| Weight | 455 g |
|---|---|
| Dimensions | 29.2 × 20 × 17.5 cm |
| Colour | Black, Orange |
