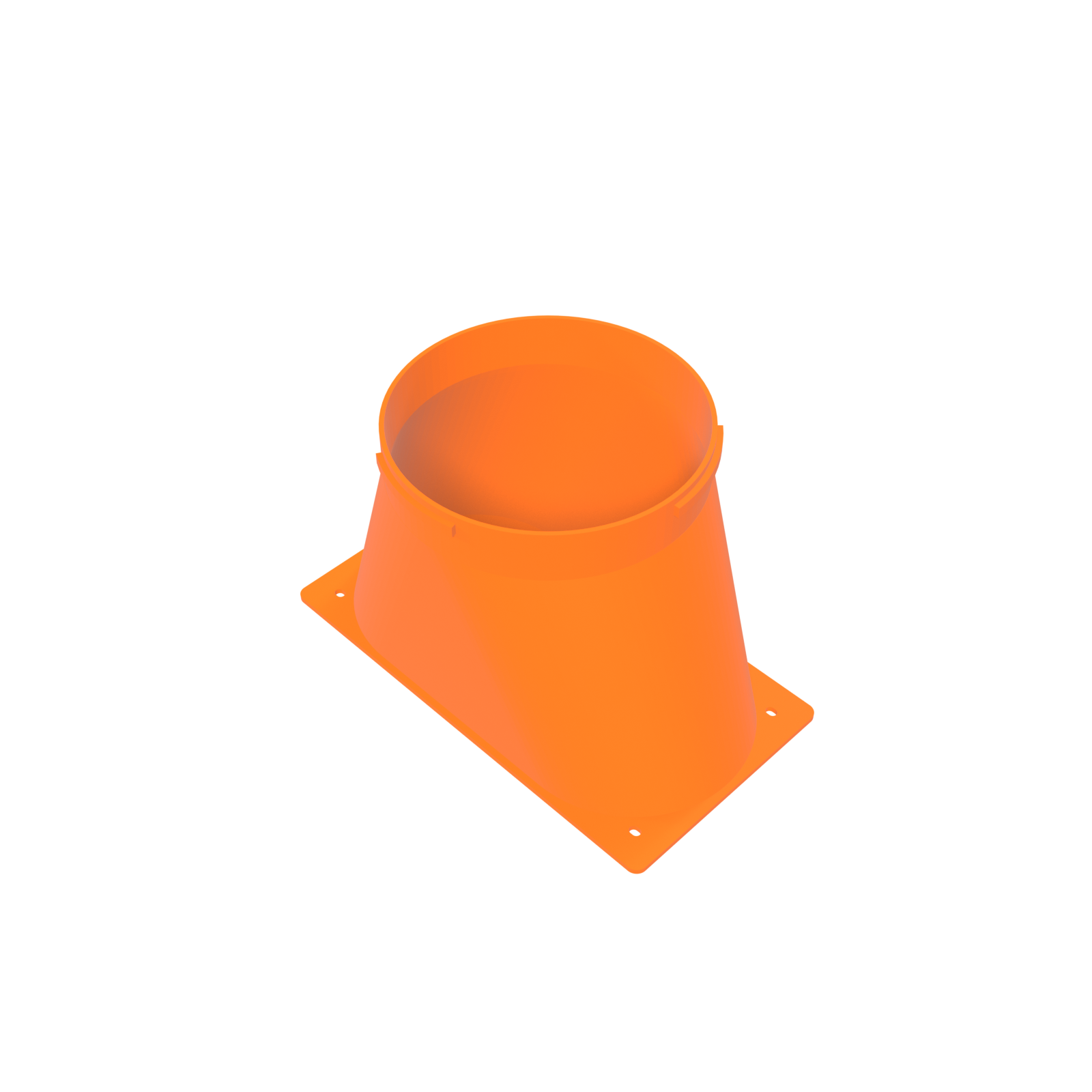

Antminer S19 / S21 Dual 120 mm to 6-Inch Bayonet Quick-Release Shroud — Wide Base

Description

Overview

This is the wide-base alternate of our bayonet quick-release dual-120 shroud. It captures both 120 mm exhaust fans of an Antminer S19 or standard S21, but the duct end is a twist-lock bayonet rather than a plain collar — for operators who pull ducts off often for maintenance, hashboard swaps or seasonal reconfiguration. It mates only with the matching RCV-BAY-6 receiver (sold separately); the bayonet tabs will not accept plain 6-inch duct.

What makes it the “wide base” version is the mounting plate: 260 mm across instead of the 250 mm of the standard shroud. That broader plate is meant for base and rack mounting — situations where you want a wider footprint against the machine face rather than a flush fan-panel bolt-on. The dual 120 mm fan capture, the 105 mm screw pattern and the bayonet duct interface are the same as the rest of the dual-120 family, so ducting and accessories interchange.

What it fits

• Antminer S19 series — dual 120 mm fan panel
• Antminer S21 standard — dual 120 mm fan panel
• Any dual 120 mm fan face at 120.0 mm fan pitch / 105 mm screw pattern
• RCV-BAY-6 bayonet receiver (sold separately) — the tabs will not accept plain 6-inch duct

Measure before you order. Fit dimensions in this line are derived from published fan and chassis geometry and are not yet validated against measured production hardware. Check your flange size and clearances against the footprint below. If something does not fit, tell us — that is how the next revision gets better.

How it is used

Mount the shroud over the two exhaust fans so the flange slots line up with the fan screw holes, and fasten it with M4 screws. Washers are required on the fan flange: the holes are 6.40 × 5.00 mm slots, so use a 9 mm or larger flat washer under each M4 screw head, or reuse the miner’s own large-head fan screws. The receiver stays on your 6-inch duct run; the shroud then twists in and out of it without tools. Note the twist-lock engagement is designed and checked digitally — a printed pair has not yet been physically cycle-tested. From there, route the duct to a window, wall port or plenum — wherever the heat is supposed to go.

Why it helps

• The broader 260 mm base spreads the mount across the machine face — the right shape for base and rack setups where the standard 250 mm plate feels narrow.
• Two open exhaust fans become one duct, so hot air goes where you decide — out of the room, into a heat-reuse run, or into a shared plenum.
• All eight fan screws are reachable with a driver: measured 8.10–11.18 mm of tool clearance on every hole in the model, where earlier designs left four screws completely blocked.
• Twist-lock instead of unclamping: the duct connection comes apart and goes back together in seconds when machines move often.

Specifications

Open source

Like every part in the shroud line, this model is open source under CC BY-SA 4.0. The print files are free to download at /3d-models/, and anyone may print, modify or sell them — that is the point of the licence. Buying a finished part from us supports the design work that keeps the whole line improving; so does the fund.

Works with

• Bayonet quick-release shroud (standard base)
• Threaded shroud — wide base
• Dual 120 mm to 6-inch shroud — wide base

See the full D-Central shroud and ducting system.
